Home > Electrical & Electronics > Electrical Control System > TRICONEX AO3082 Communication Module

TRICONEX AO3082 Communication Module

TRICONEX AO3082 Communication Module thumbnail-2

TRICONEX AO3082 Communication Module thumbnail-3

TRICONEX AO3082 Communication Module photo-1

TRICONEX AO3082 Communication Module photo-2

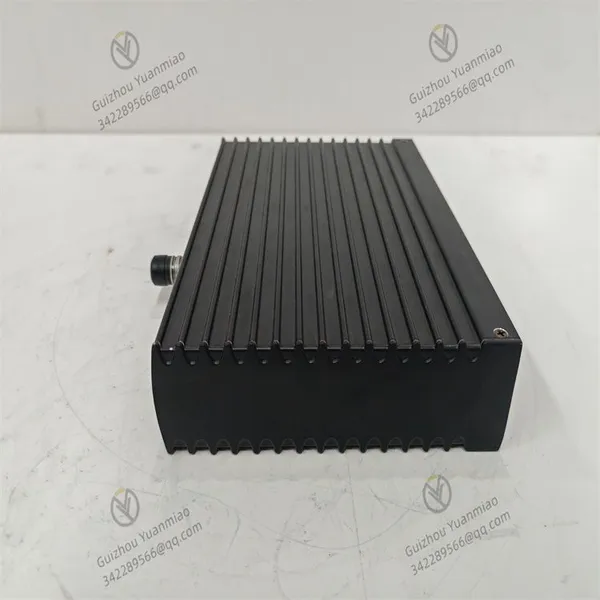

TRICONEX AO3082 Communication Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Certification:

Function:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Certification CE

Function Other, Global universal model

Condition New

Task Following

Mathematical Model Linear

Signal Continuous

Customized Non-Customized

Structure Closed-Loop

The Triconex AO3082 is an analog output module manufactured by Triconex, a brand under Schneider Electric. It is part of the I/O module series for the well-known Tricon v9, v10, and v11 Safety Instrumented Systems (SIS) or Fault-Tolerant Process Control Systems (Tricon).

Please note: The AO3082 is an obsolete model. For current maintenance and spare parts procurement, it is usually replaced by a new model. However, understanding this module is crucial for maintaining existing legacy systems.

1. Basic Functions of the Module

Type: Analog Output
Number of Channels: 8 channels
Output Signal Type: 4-20 mA (the most mainstream analog signal standard in industrial process control)
Core Function: This module receives digital commands from the Tricon Main Processor (MP) and converts them into precise 4-20 mA analog current signals. These signals are used to control field devices, such as:

Controlling the opening degree of control valves (via electric valve positioners)
Adjusting the speed of Variable Frequency Drives (VFDs)
Controlling the position of actuators
Providing setpoints for other devices that require analog commands

2. Key Features and Specifications

Resolution: High resolution (typically 15 bits or higher), ensuring precise and smooth output signals.
Accuracy: High accuracy, with a typical value of approximately ±0.1% of the full scale, guaranteeing control accuracy.
Isolation: Channel-to-channel isolation. This is a key feature of safety systems, meaning each output channel is electrically isolated. A fault in one channel (such as a short circuit or overvoltage) will not affect the operation of other channels or the main system, greatly improving the reliability and safety of the system.
Fault State: Supports configurable fault states. If communication between the module and the main processor is interrupted (e.g., module failure or base failure), each channel can be independently set to:

High output
Low output
Maintain last state
This function is crucial for safety systems, as it ensures the process enters a predefined safe state in the event of a fault.

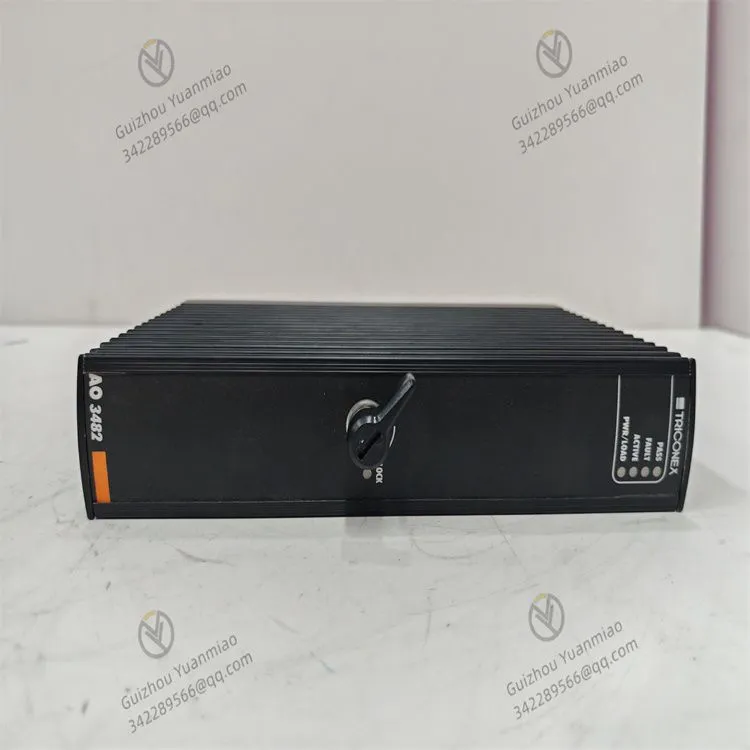

LED Indicators: The front of the module is equipped with multiple LED indicators, which are used to display the module status, communication status, and the active/fault status of each channel, facilitating quick diagnosis.
Hot-Swappable Support: Like most Triconex I/O modules, the AO3082 supports installation or removal without powering down the system (provided the system design and configuration allow), which greatly facilitates maintenance and replacement.

3. Application and Position in the System

Installation: The AO3082 module is inserted into a specific I/O slot of the Triconex Chassis.

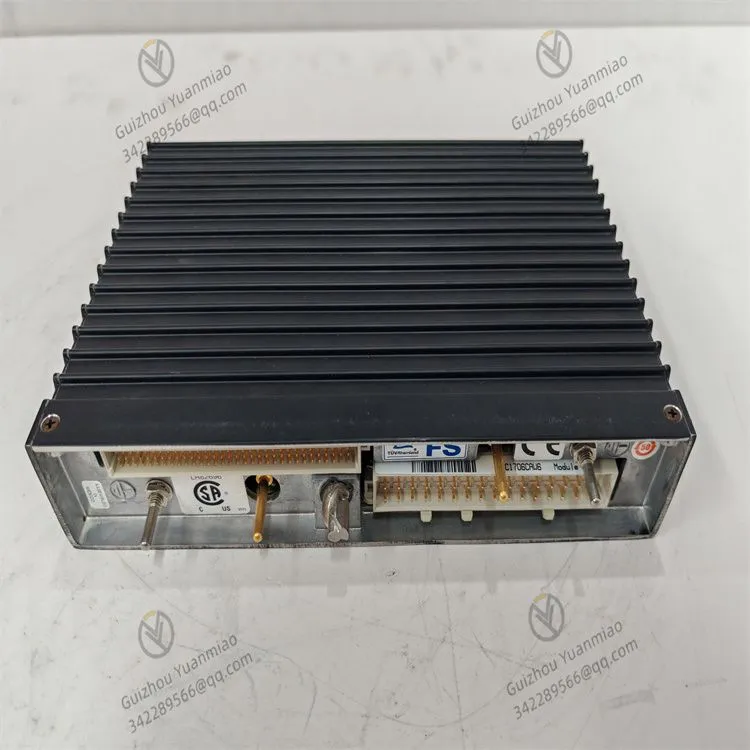

Connection: Wires from field devices (such as valve positioners) are connected to the Field Termination Assembly (FTA) that matches the AO3082 module. The FTA (e.g., 3503E) is then connected to the AO3082 module at the back via a ribbon cable. This design separates field wiring from the electronic module, making module replacement fast and less error-prone.
Communication: The module communicates with the Tricon Main Processor (MP) via the backplane, receiving output commands and reporting status information.
Configuration: The behavior of the module (such as range and fault state) is defined by configuring the project in Triconex engineering software (e.g., Tristation 1131).

4. Compatibility and Replacement Model

Compatible Systems: Tricon v9, v10, and v11 systems.
Replacement Model: Since the AO3082 has been obsolete, Schneider Electric has launched its replacement product:

Main Replacement Model: AO3083
The AO3083 is fully functionally compatible with the AO3082 but incorporates technical updates and improvements, making it the preferred choice for direct replacement. When ordering new spare parts or performing system upgrades, the AO3083 should be selected.

5. Common Application Industries

Triconex systems are mainly used in industries with extremely high requirements for safety and reliability. Therefore, the AO3082/AO3083 modules are commonly found in:

Oil and Gas (upstream exploration, oil refining, Liquefied Natural Gas - LNG)
Chemical and Petrochemical
Power Plants (especially non-safety-related control in nuclear power plants)
Pharmaceuticals
Other critical process control fields

Summary

Feature	Details
Manufacturer	Triconex (now part of Schneider Electric)
Module Type	Analog Output Module
Number of Channels	8
Signal Type	4-20 mA
Key Features	Channel-to-channel isolation, configurable fault state, high accuracy, hot-swappable
System Compatibility	Tricon v9, v10, v11
Status	Obsolete
Recommended Replacement Model	AO3083
