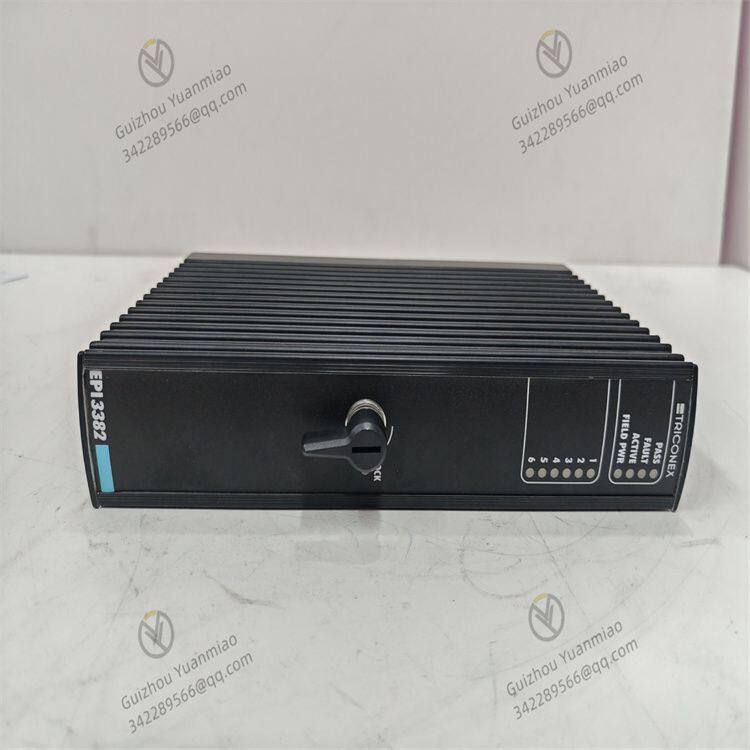

TRICONEX EPI3382 Redundant Module

Output Current: Each digital output channel provides an output current of 2A, delivering sufficient driving capability to control external devices such as actuators, alarms, and valves.

Response Time: The response time of digital output channels is less than 1 millisecond, ensuring fast control actions to promptly respond to various changes in industrial processes.

Communication Interfaces: Supports multiple communication protocols including Modbus, TCP/IP, and Ethernet/IP. It enables flexible data exchange and communication with other devices and systems, facilitating integration into different industrial network architectures.

Dimensions: The module measures 100mm x 50mm x 25mm. Its compact size minimizes space occupation, allowing for easy installation and layout in various industrial control cabinets.

Redundancy Design Advantages: Supports 1-out-of-2 (1oo2) and 2-out-of-3 (2oo3) redundant configurations, and adopts Triple Modular Redundancy (TMR) technology. This technology consists of three safety-identical system channels (excluding the power supply module, which features dual redundancy). Each system channel independently executes the control program and operates in parallel with the other two channels. A hardware voting mechanism performs voting and diagnostics on all digital inputs and outputs from the field, while analog inputs undergo median value processing. This design ensures the system remains operational even if one channel fails, significantly enhancing system reliability and fault tolerance.

Diagnostic Function: Equipped with comprehensive diagnostic capabilities to real-time monitor the module's health status. It detects various internal components and circuits of the module; in case of a fault, it immediately sends an alarm signal, enabling maintenance personnel to quickly troubleshoot and repair, thereby reducing system downtime.

Bit String Shifting Function: The module is equipped with a bit string shifting function, which allows flexible adjustment of the shifting mode and number of the bit string as needed. This makes the module more flexible and efficient in processing digital signals, capable of meeting specific industrial control requirements.

Safety Interlock Systems: Used in industries such as oil and chemicals to implement safety interlock functions. When process parameters exceed safe ranges or abnormal conditions occur, it can promptly cut off the power supply of relevant equipment or take other safety measures to prevent hazardous incidents.

Emergency Shutdown Systems: Widely applied in industries like power generation and metallurgy as a key component of emergency shutdown systems. In emergency situations, it can quickly and reliably trigger shutdown operations to ensure the safety of personnel and equipment.

Process Control Systems: Can be used in various control links of industrial production processes, such as flow control, temperature control, and pressure control. Through precise analog and digital outputs, it achieves stable control of industrial processes, ensuring process parameters operate within safe and effective ranges.
