Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Other Chemical Equipment & Machinery > Lab 2L 5L 10L 20L 50L 100L Vacuum Distillation Rotovap Essential Oil Distiller Rotary Evaporator
Lab 2L 5L 10L 20L 50L 100L Vacuum Distillation Rotovap Essential Oil Distiller Rotary Evaporator
US$ 700 - 6000
MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
12 M
After-sales Service:
support
Transport Package:
wooden box
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days
Related Products
-
10L Laboratory Small Evaporation Concentration Distillation Purification Crystallization Rotary EvaporatorUS$ 700 - 6000MOQ: 1 Set -
Ready to Ship 20 Liter Rotary Evaporation Ex-proof Roto Vap for Solvent RecoveryUS$ 700 - 6000MOQ: 1 Set
-
Ex-proof Rotovap 50L Electric Lift Rotary Evaporator Rotovap For Distillation Rotavapor InstrumentUS$ 700 - 6000MOQ: 1 Set
-
Rotary Evaporator With Bath Industrial Lab Rotavapor Equipment PriceUS$ 800 - 6000MOQ: 1 Set
-
Benchtop Glass Bioreactor With Best Factory PriceUS$ 5000 - 10000MOQ: 1 Set
Warranty
12 M
After-sales Service
support
Transport Package
wooden box
Specification
1-100L
Trademark
RichSmart
Origin
China

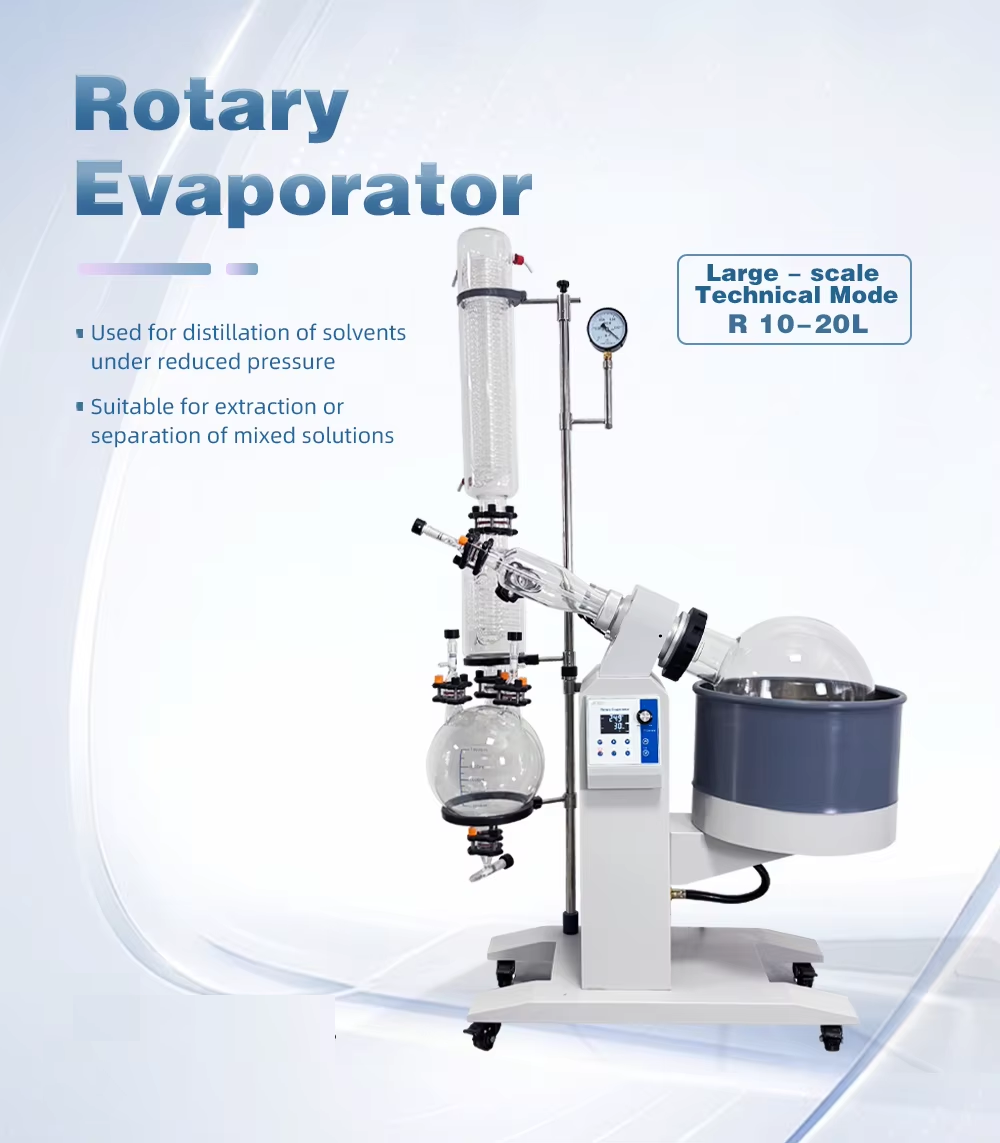

Large Rotary Evaporator-Technical Type
Rotary evaporators are primarily used for continuous distillation of large quantities of volatile solvents under reduced pressure. They are suitable for solvent extraction or separation of mixed solutions and can be used in the following experiments or product manufacturing processes: ① solution concentration; ② solvent recovery; ③ chemical separation; ④ essential oil extraction; ⑤ removal of solvents from samples. They are particularly useful for concentrating and crystallizing extraction solutions and distilling receiving liquids in chromatography separation.
Technical Parameters
SPECIFICATION:
Model |
RE-1L |
RE-2L |
RE-5L |
RE-10L |
RE-20L |
RE-30L |
RE-50L |
Evaporation rate (L/h) |
≥1.2 |
≥2.2 |
0~3.2 |
0~5 |
0~7 |
0~9 |
|
Rotary bottle volume (L) |
1 |
2 |
5 |
10 |
20 |
30 |
50 |
Collection bottle volume (L) |
1 |
3 |
5 |
10 |
20 |
||
Speed range (rpm) |
20~120 |
||||||
Lifting stroke (mm) |
0~180 |
||||||
Working temperature range (℃) |
RT~200 |
||||||
Power supply |
220V,50Hz，1p |
||||||
Equipment size (L×W×H, cm) |
64*65*60 |
84*46*110 |
99*55*175 |
114*69*190 |
135*77*230 |
||
Product Advantage

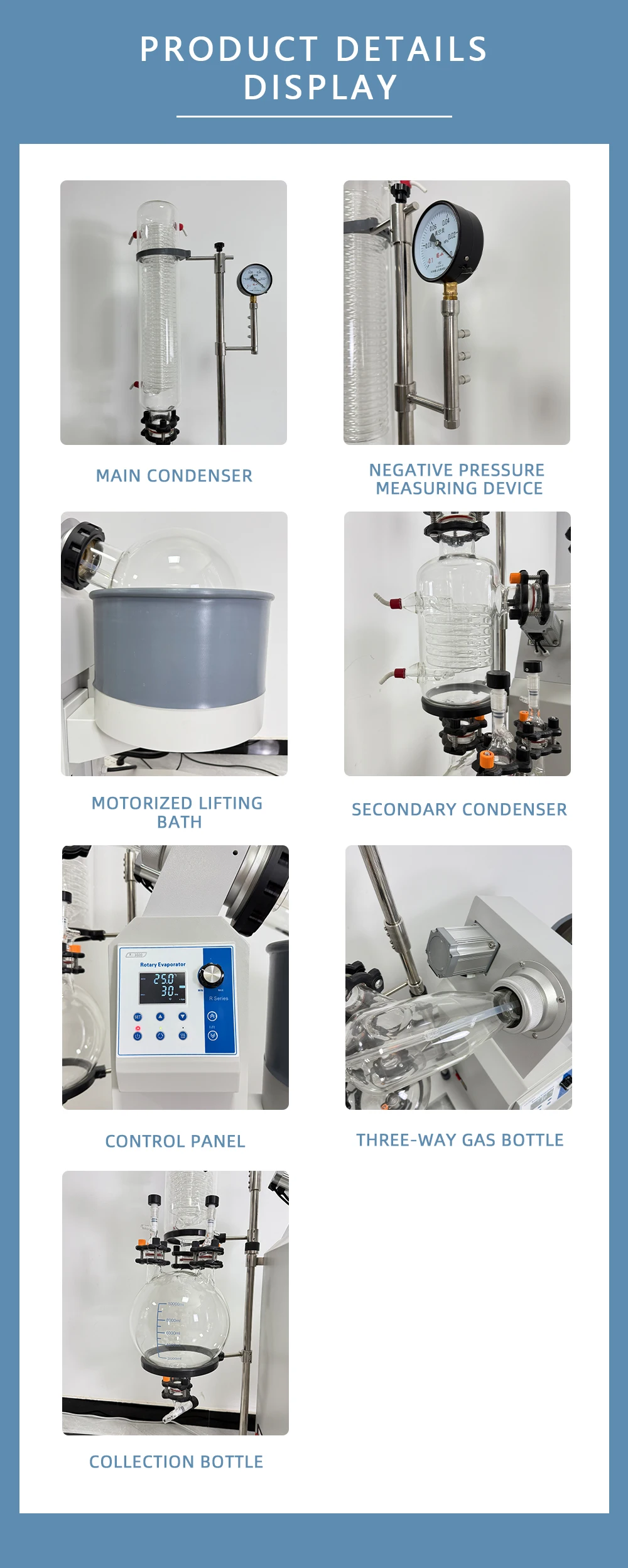

Product Details
Features:
1.The use of electronic or variable frequency speed control ensures stable motor operation.

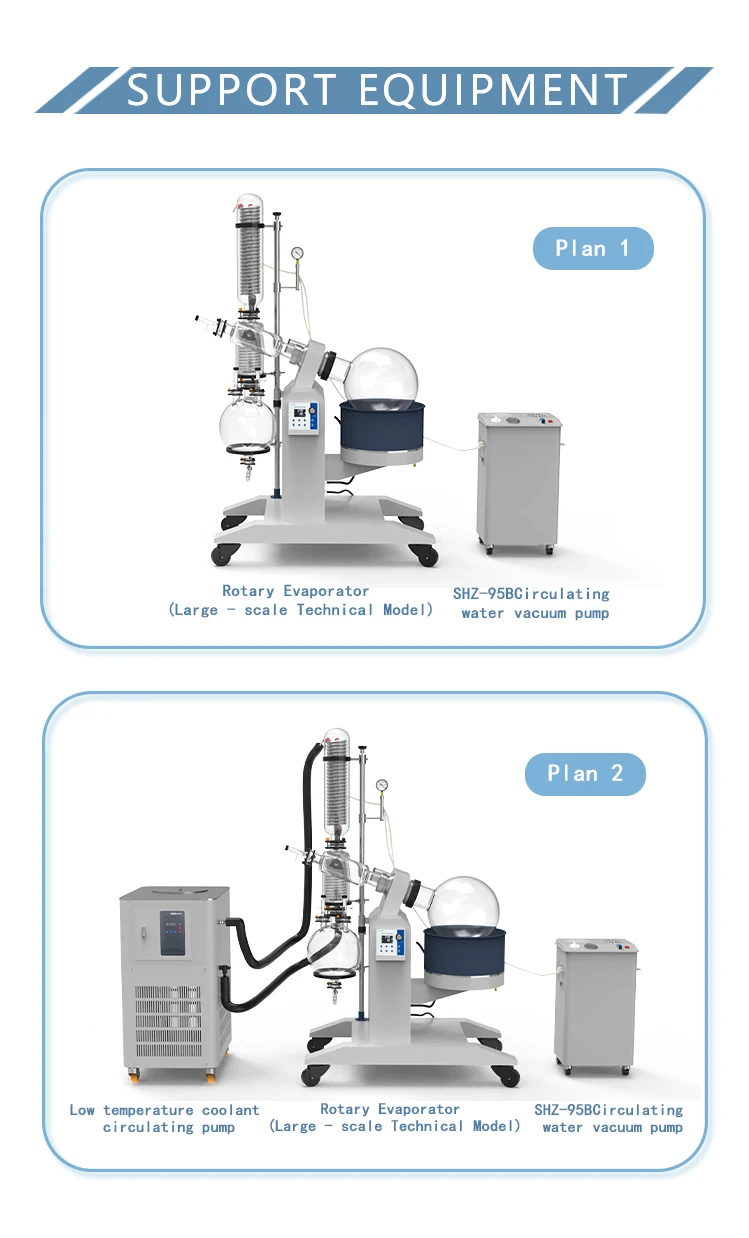

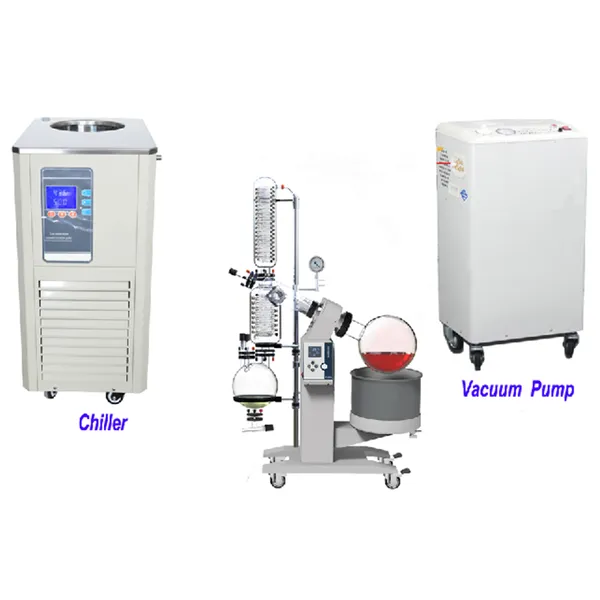

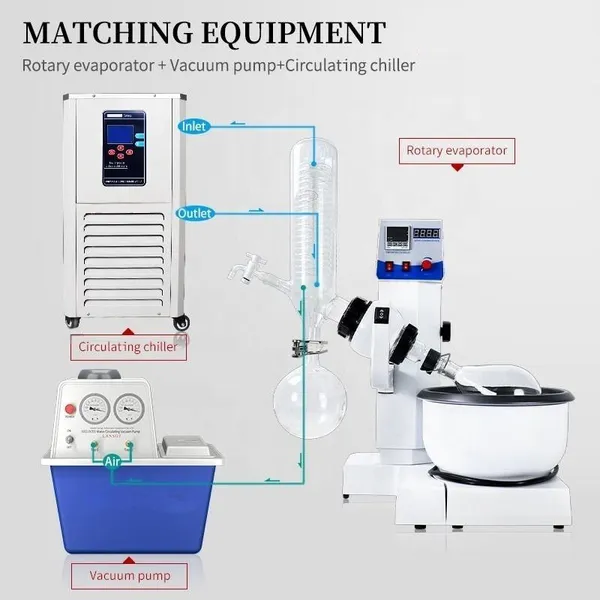

2.The dynamic seal uses a “PTFE + fluorine rubber double seal” design to better ensure the sealing of the system.3.Optional cooling circulators, vacuum pumps, and other accessories are available for easy combination and connection, thereby saving energy and improving work efficiency.

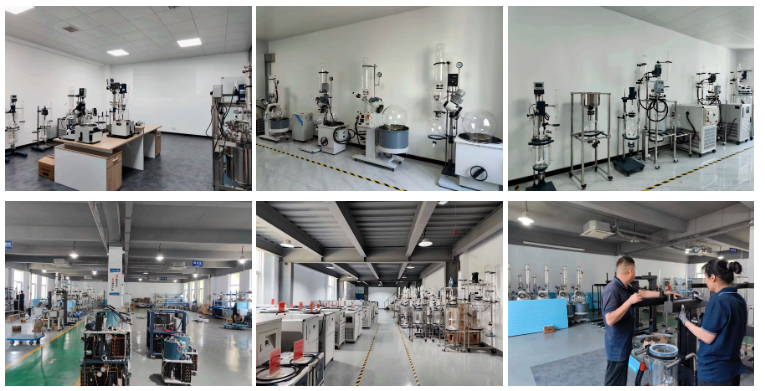

Production&Customer Site Demonstration
