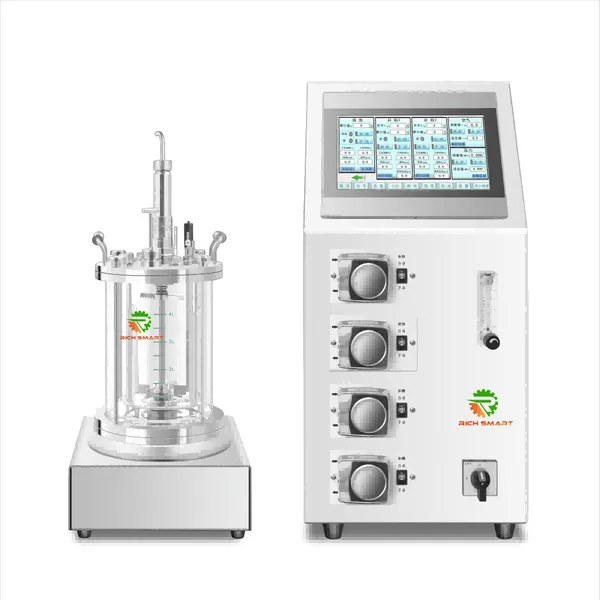

Cell Culture Glass Bioreactors
The cell culture glass bioreactors are designed to pump the outcomes of laboratory research and such experiments with powerful performance.
Features of Controlling System
Multiple Control Function
1.Associated control: temperature, stirring speed, pH, dissolved oxygen, defoaming, airflow, tank pressure, feed amount and other direct parameters.
2.Remote monitoring: Suitable for smartphones, tablets, laptops and PC for instant remote monitoring.
3.Step control: Users can switch directly between manual control and step control and set at least 10-step control program for temperature, agitation, PH, DO and feeding.
Smart PID control
1.Temperature, stirring speed, Ph, DO and other parameters in the tank can be controlled by subsection curve setting 2.according to the process requirements.
3.Temperature Control: Adopt PID automatic control mode; SS316L jacket base for electric heating and cold water for cooling.
4.Dissolved oxygen control: equipped with DO electrode and shielded conductor, DO is associated with stirring motor speed, feeding, airflow, tank pressure and other parameters.
5.PH value control: Intelligent PID system control built-in control peristaltic pumps for acid-alkali adjustment, with high control precision.
6.Antifoam control: Foams are automatically detected and the peristaltic pump is controlled to add defoamer in proportion to time.
7.Feeding control: Peristaltic pump switch control (manual, automatic, and off); accumulation volume control; coupled with other parameters (DO, pH, etc).
Standard Glass Vessel
Equipped with an easy-to detach condenser around the air outlet, for easy cleaning, no effusion and no contaminating bacteria.
Standard sensors port for precise measurement and control of temperature, pH, DO, Antifoam, feed, aeration and pressure.
Magnetic drive stirring for good sealing performance.
Compact design for saving critical laboratory space..
Standard with flat or pitched-blade; other types of impellers are available
Configured one sampling port.
Equipped with a filter to prevent contaminated air from getting to the system.
Tempered high borosilicate glass 3.3 for vessel and SS316L for the heating plate.
Perfectly suited for research and development, available in 1L, 2L, 3L, 5L, 7L, 10L and 15L.
Upgrading option list
Gas mixing options: Air/O2/CO2/N2
Cleanliness detection
Online live cell detectio
Automatic vessel pressure control
Top areation
Thermal mass flow controller
CO2 detection
Redox
Exhaust detection analysis
Liquid level
Filling weighing system
Methanol and ethanol content online detection
Additional feed pump
Variable speed pump
Upper controller
Magnetic drive
Customizable blade
Vessel passivation
Custom port
Cover lifting
Standard Type Specifications
Model |
RS-BG-X1 |
RS-BG-X2 |
Controller |
One console for one vessel |
One console for two vessels |
Display / Operation |
Touch panel 10" / Touch screen |
Touch panel 10" / Touch screen |
Gas inlet |
1 overlay with 4 deep gas inlets |
1 overlay with 4 deep gas inlets for each vessel |
USB |
1 x RS485 |
2 x RS485 |
Vessel |
1L / 2L / 3L / 5L / 7L / 10L |
2 x 1L / 2L / 3L / 5L / 7L / 10L |
Working volume |
0.8L / 2L / 2.6L / 4.4L / 6L / 8.4L |
2 x 0.8L / 2L / 2.6L / 4.4L / 6L / 8.4L |
Stirring speed |
5 - 1000 rpm |
5 - 1000 rpm |
Motor power (Kw) |
0.18/0.4/0.4/0.4/0.4/0.75 |
0.18/0.4/0.4/0.4/0.4/0.75 |
Pressure |
0.10Mpa (Max 0.15Mpa) |
0.10Mpa (Max 0.15Mpa) |
Material |
SS316L & 3.3 high borosilicate glass |
SS316L & 3.3 high borosilicate glass |
Serilization |
Autoclave |
Autoclave |
Feeding pumps |
4 peristaltic pumps |
8 peristaltic pumps |
Peristic pump tube ID |
0.5 mm |
0.8 mm |
Peristic pump flow rare |
0.06/revolution |
0.15/revolution |
Sensors |
PT100, DO, foam, pH |
PT100, DO, foam, pH |
Temperature |
Eletrical heating sleeve with bottom water to control heating / cooling |
Eletrical heating sleeve with bottom water to control heating / cooling |
pH control |
Range: 2 - 12（±0.01)，display: 0 - 14（±0.01) |
Range: 2 - 12（±0.01)，display: 0 - 14（±0.01) |
DO control |
Range: 0 - 150% (±3%), international eletrode and shielded wire detection |
Range: 0 - 150% (±3%), international eletrode and shielded wire detection |
Defoam control |
Automatic foam detection, automatically add defoamer in proportion to time |
Automatic foam detection, automatically add defoamer in proportion to time |
Agitation control |
Servo motor, PID control, stepless speed regulation |
Servo motor, PID control, stepless speed regulation |
Areation airflow |
2VVM |
2VVM |
Areation filter |
0.2μm |
0.2μm |
Areation flowmeter |
Air calibrated, 1.2bar 20℃ |
Air calibrated, 1.2bar 20℃ |
Areation |
0.5SLPM, 1.0SLPM, 2.5SLPM, 5.0SLPM, 10SLPM, 25SLPM (customizable) |
0.5SLPM, 1.0SLPM, 2.5SLPM, 5.0SLPM, 10SLPM, 25SLPM (customizable) |
