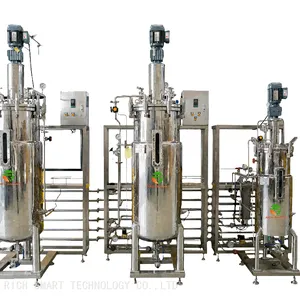

Help CenterMultistage Stainless Steel Bioreactor System
Related Products
-
Multi-parallel Magnetic Sealed Stainless Steel FermentationUS$ 5000 - 10000MOQ: 1 Set -
Stainless Steel Stirred Bioreactor From Lab to Production ScaleUS$ 5000 - 10000MOQ: 1 Set
-
Benchtop Glass Bioreactor With Best Factory PriceUS$ 5000 - 10000MOQ: 1 Set
-
High Quality Stainless Steel Bioreactor With Long GurranteeUS$ 5000 - 10000MOQ: 1 Set
-
Microbial Fermentation Parallel Glass BioreactorsUS$ 5000 - 10000MOQ: 1 Set
Introduction：
Multi-parallel Bioreactors system normally consists of 2-16 sets, which applicated for Multimodal comparison test of Microorganism culture fermentation, optimization of fermentation process parameters, and verification of production process and related species. It can save much time and labor cost.
With complete functions and high degree of automation, it can be widely used in medicine, food industry, biological and chemical industry, agriculture, brewing and other industries. The equipment design and manufacturing meet the requirements of GMP.
Equipment features:
1. In-situ sterilization, safe and reliable.
2. No traditional leakage risk;
3. Multiple reliable inoculation methods, flame inoculation and pressure differential inoculation are available;
4. Reasonable structural design, beautiful appearance;
Upgrading option list
Gas mixing options: Air/O2/CO2/N2
Cleanliness detection
Online live cell detectio
Automatic vessel pressure control
Top areation
Thermal mass flow controller
CO2 detection
Redox
Exhaust detection analysis
Liquid level
Filling weighing system
Methanol and ethanol content online detection
Additional feed pump
Variable speed pump
Upper controller
Magnetic drive
Customizable blade
Vessel passivation
Custom port
Cover lifting
Parameter |
Description |
Total volume |
5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL etc. |
Working volume |
30%~70% |
Tank |
Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of |
Stirring system |
Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle |
Sterilization |
Sterilize in place(SIP), auto control by program |
Clean |
Clean in place (CIP) by spray ball |
Gas control |
Control by rotor meter, air flow 1 vvm |
Feeding |
Automatically feeding by peristaltic pump |
Anti-foam control |
Automatically add antifoam by peristaltic pump |
Temperature control |
Auto-control, electric heating range: water source add 5℃ to 70℃ |
PH control |
PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
Do control |
0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
Sampling |
Sampling valve, can sterilization separately, manual |
Harvest |
Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto |
Lid lift system |
30L-500L have lid lift system, 700-1000L have human hole. |
Pressure |
Auto control, BD Germany pressure transmitter |
Exhaust |
Have condenser before exhaust, control by diagram valve / Proportional control valve. |
Control parameters |
10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data |
Optional configuration |
Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, |
