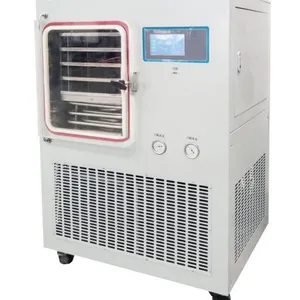

FD-series freezing drying vacuum dryer
In situ freezing drying vacuum dryer is suitable for small scale production or pilot scale test. This series is one of our patent products.This series of freezing drying vacuum dryer have heating shelf, freezing and drying process are finished in the same Chamber. freezing drying vacuum dryer changes traditional complicated operation and prevents product from pollution.
Customized Optional:
● Optional mobile phone APP.
● Optional -80℃ equipment.
● Optional external bottle hanging device, such as eggplant bottle interface or wide-mouth bottle interface.
● Optional imported brand vacuum pump to ensure more reliable operation.
● Optional vacuum degree adjustment.
● Optional eutectic point test function, convenient for exploring the freeze-drying process of samples.
Specification
FD-20S | FD-30S | FD-50S | FD-100S | FD-20P | FD-30P | FD-50P | FD-100P | |
Freeze drying area | 0.2 ㎡ | 0.4 ㎡ | 0.69 ㎡ | 1.04 ㎡ | 0.2㎡ | 0.306 ㎡ | 0.5 ㎡ | 1.152 ㎡ |
Condenser temperature | <-75℃ | |||||||
Vacuum degree | <5Pa | |||||||
Water capture capacity | 3Kg/24h | ＞ 6Kg/24h | ＞ 10Kg/24h | 15Kg/24h | 3Kg/24h | ＞ 6Kg/24h | ＞ 10Kg/24h | ＞ 15Kg/24h |
Cooling mode | Air cooling, ventilation, room temperature 25 ℃ or less | |||||||
Shelf size | 400×270mm*2+1 | 300×340mm*4+1 | 480×360mm*4+1 | 480×360mm*6+1 | 400×270mm*2+1 | 300×340mm*3+1 | 410×410mm*3+1 | 480×600mm*4+1 |
Power | 3000W | 4500W | 5500W | 6500W | 3000W | 4500W | 5500W | 6500W |
Weight | 260kg | 400kg | 600kg | 700kg | 260kg | 400kg | 800kg | 1000kg |
Dimension (mm) | 770×750×1520 | 920×780×1350 | 1000×785×1420 | 1170×830×1665 | 770×750×1520 | 1260×850×1420 | 1490×850×1620 | 1640×1100×1630 |
Bulk capacity Thickness:10mm | 2L | 4L | 7L | 10L | 2L | 3L | 5L | 10L |
Vials loading | Ф12mm：1554 | Ф12mm：2916 | Ф12mm：4676 | Ф12mm：＞ 7014 | Ф12mm：1554 | Ф12mm：2187 | Ф12mm：3705 | Ф12mm：8624 |
Ф16mm：868 | Ф16mm：1600 | Ф16mm：2772 | Ф16mm：＞ 4158 | Ф16mm：868 | Ф16mm：1200 | Ф16mm：2058 | Ф16mm：4788 | |
Ф22mm：440 | Ф22mm：872 | Ф22mm：1440 | Ф22mm：＞ 2160 | Ф22mm：440 | Ф22mm：654 | Ф22mm：1050 | Ф22mm：2460 | |
