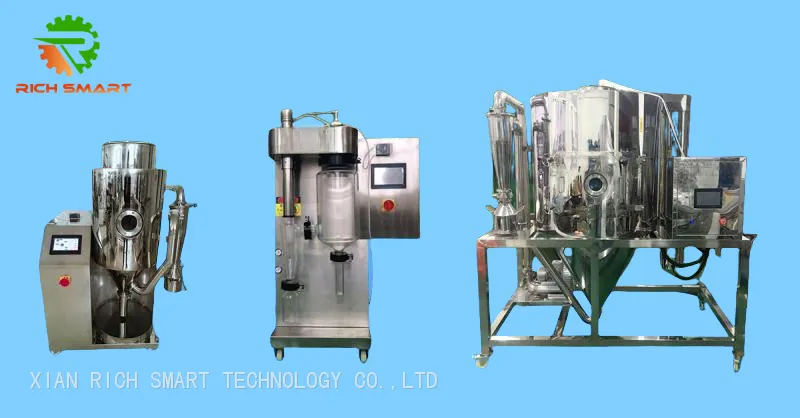

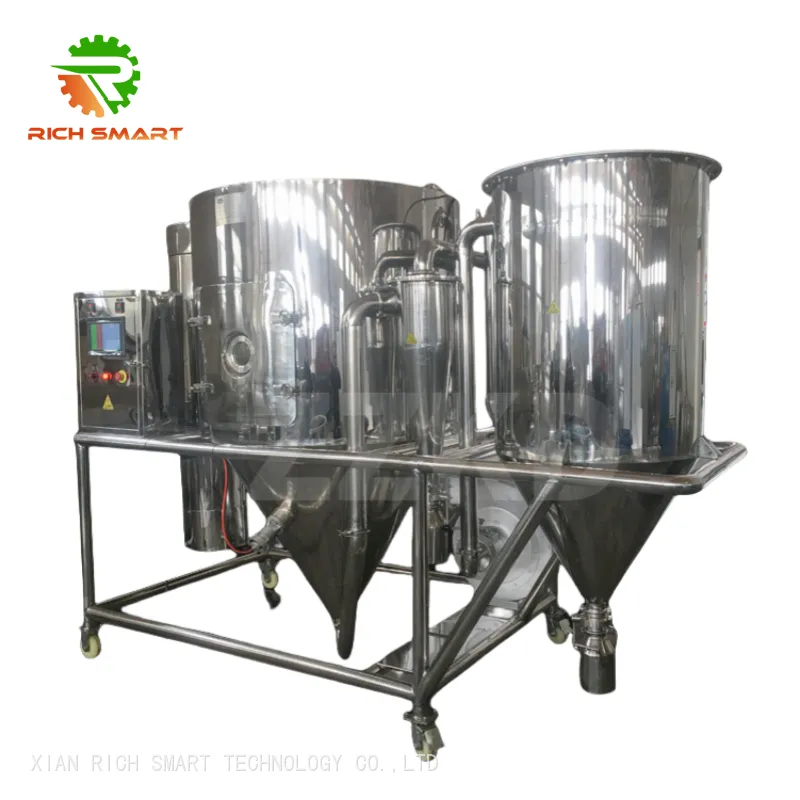

5L 10L 15L Pilot Spray Dryer Drying Machine for sale
Product Description
Spray dryer is a kind of continuous atmospheric pressure dryer. The liquid material is sprayed into mist by a centrifugal physicochemical nozzle, so that it contacts with hot air and is dried. The air is filtered and heated, and enters the air distributor at the top of the dryer. The hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the high-speed centrifugal atomizer at the top of the tower body, and (rotates) sprays into extremely fine mist liquid beads, which can be dried into finished products in a very short time by contacting with hot air in parallel. The finished products are continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is emptied by the induced draft fan. It is used to dry some heat-sensitive liquids, suspensions and viscous liquids, such as milk, eggs, tannins and drugs. It is also used to dry fuels, intermediates, soap powder and inorganic salts.
Equipment parameters
Specification |
RS-2L |
LPD-5 |
LPD-15 |
LPD-25 |
LPD-50 |
LPD-100 |
Spray form |
Two liquid nozzle |
High speed centrifuge atomizer |
||||
Air Inlet temperature |
140-300 °C (depend on the product to be dried, and URS) |
|||||
Air exhaust temperature |
60-120 °C (depend on the product to be dried, and URS) |
|||||
Nominal water |
2Kg / h |
5Kg / h |
15Kg / h |
25Kg / h |
50Kg / h |
100Kg / h |
Heating method |
High-pressure steam, or steam + electricity, or any kinds of fuel (diesel, natural gas, liquefied petroleum gas or coal, etc.), or solid fuel (any combustible material). Please specify. |
|||||
Drying tower diameter |
Lab size |
1100 |
1300 |
1600 |
2150 |
2560 |
Dimensions |
Design as per configuration of the plant and URS |
|||||
Product yield |
95-99.9%,depend on the properties of the product and configurations |
|||||
