Ready to Ship 20 Liter Rotary Evaporation Ex-proof Roto Vap for Solvent Recovery

FOB Price

US$ 700 - 6000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Warranty	12 M	After-sales Service	support
Transport Package	wooden box	Specification	1-100L
Trademark	RichSmart	Origin	China

Product Description

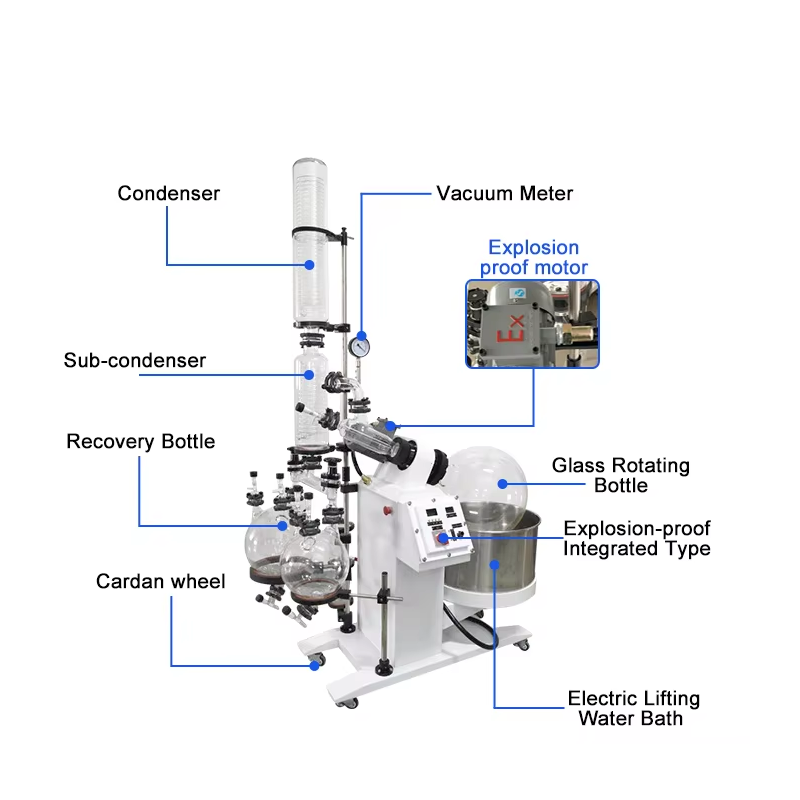

Explosion-proof Type & Electric Bath Lift

Ex-proof Rotary evaporators are primarily used for continuous distillation of large quantities of volatile solvents under reduced pressure. They are suitable for solvent extraction or separation of mixed solutions and can be used in the following experiments or product manufacturing processes: ① solution concentration; ② solvent recovery; ③ chemical separation; ④ essential oil extraction; ⑤ removal of solvents from samples. They are particularly useful for concentrating and crystallizing extraction solutions and distilling receiving liquids in chromatography separation.

Technical Parameters

SPECIFICATION:

Product Model			RE-5LEX	RE-10LEX	RE-20LEX	RE-50LEX
Glass Assembly	Material		(GG17) Borosilicate glass 3.3
	Carafe（L）		5L flange portφ50	10L flange portφ125	20L flange portφ125	50L flange portφ125
	Collection Bottle		3L flange port50#	5L flange port60#	10L flange port60#	20L flange port60#
	Condensers	Framework	Double Vertical
Device	Rotary Motor	Controllers	DC infinitely variable speed control
		Number of Revolutions Per Minute	20～150r/min	20～140r/min	20～140r/min	20～120r/min
	Power（W）		/	Explosion-Proof Motor 370W Explosion-proof grade BT4
	Bathtub	Power（KW）	2	3	4	6
	Temperature Control Range（℃）		Ordinary temperatures+5～95
	Temperature Regulation Accuracy（℃）		±1
Lifting Method			Electric bath lift
Power Up and Down（W）			/	120W Explosion-Proof Motor 370W Explosion-proof grade BT4
Size of the Whole Machine(mm)			900D600W1080H	1150D750W1900H	1350D850W2160H	1350D850W2160H
Power Requirement			220V/50Hz

Product Advantage

Product Details

Features:

1.The use of electronic or variable frequency speed control ensures stable motor operation.

2.The dynamic seal uses a “PTFE + fluorine rubber double seal” design to better ensure the sealing of the system.

3.Optional cooling circulators, vacuum pumps, and other accessories are available for easy combination and connection, thereby saving energy and improving work efficiency.
