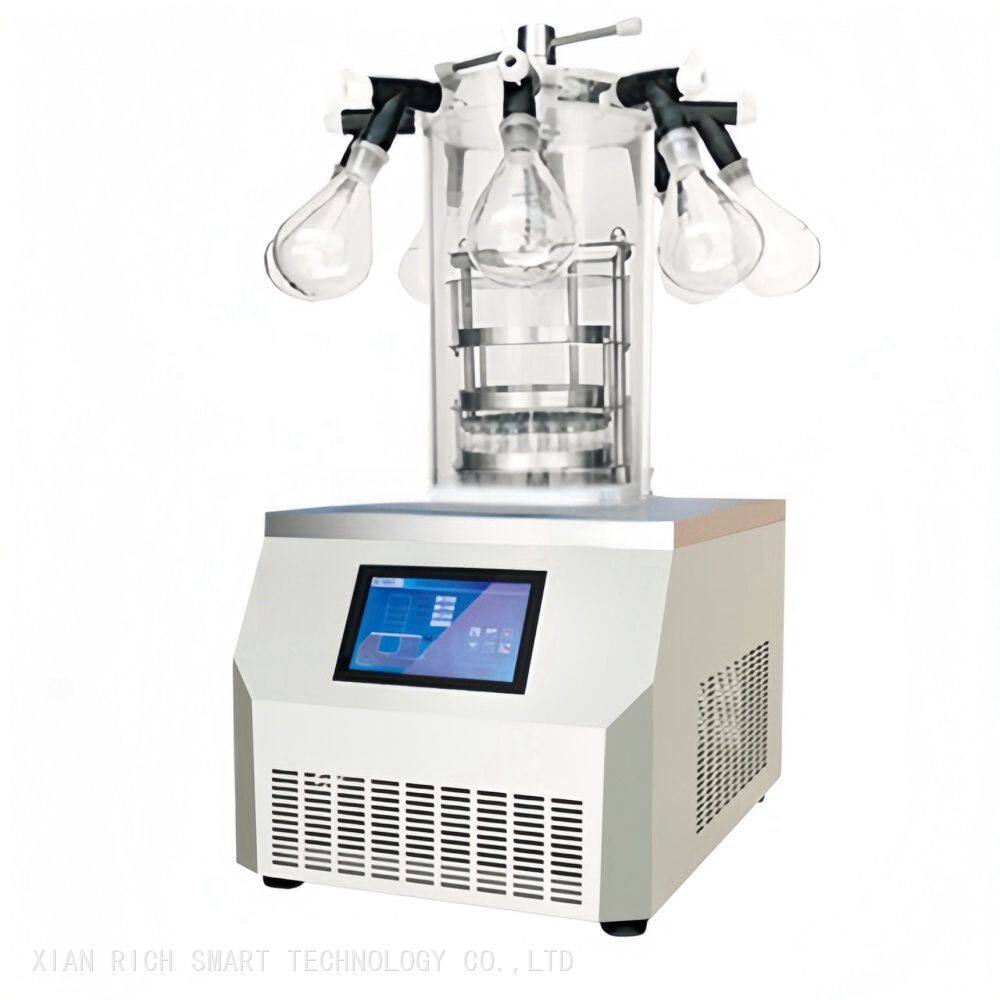

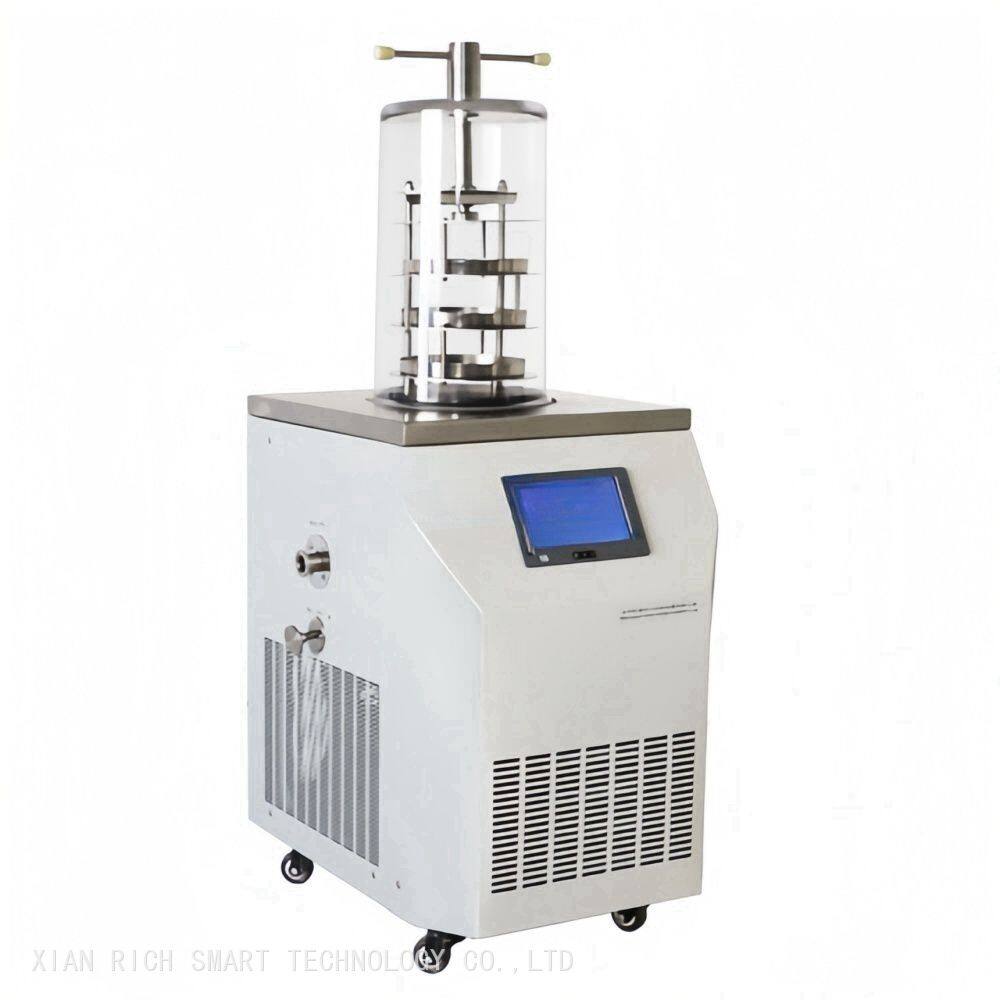

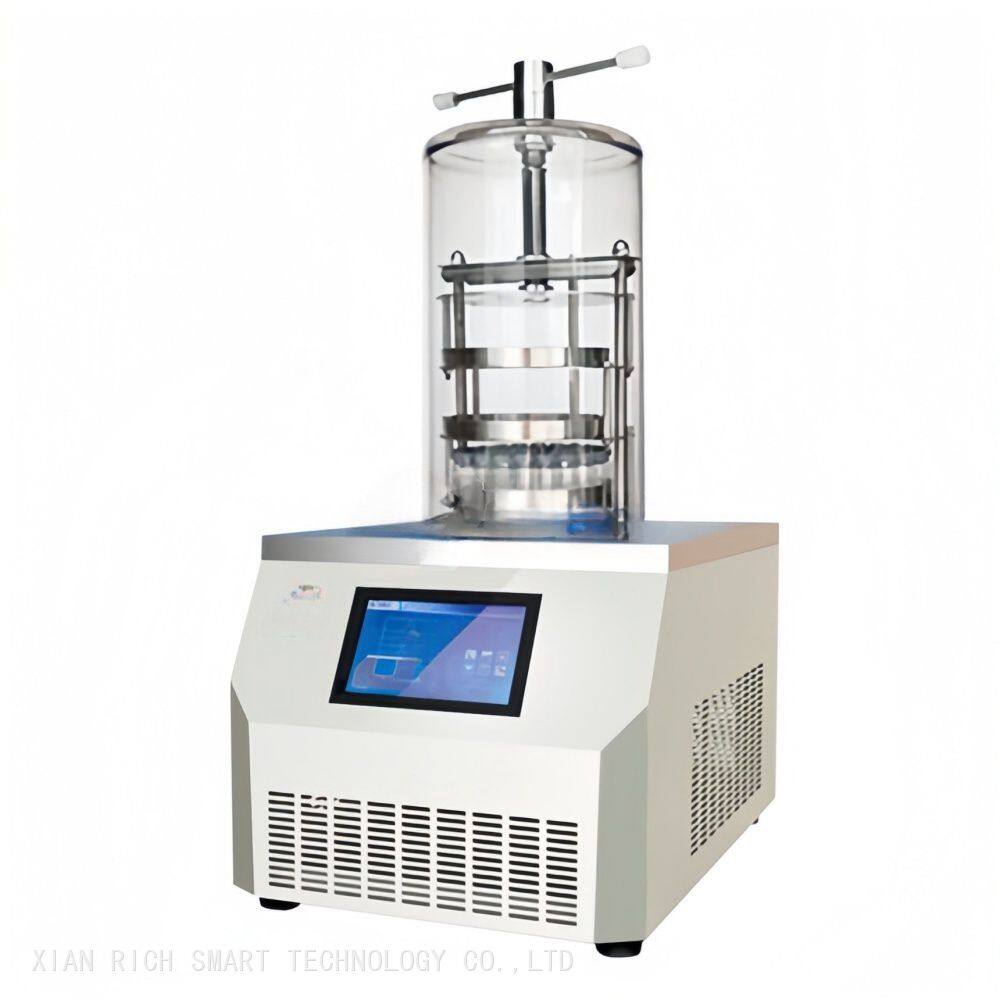

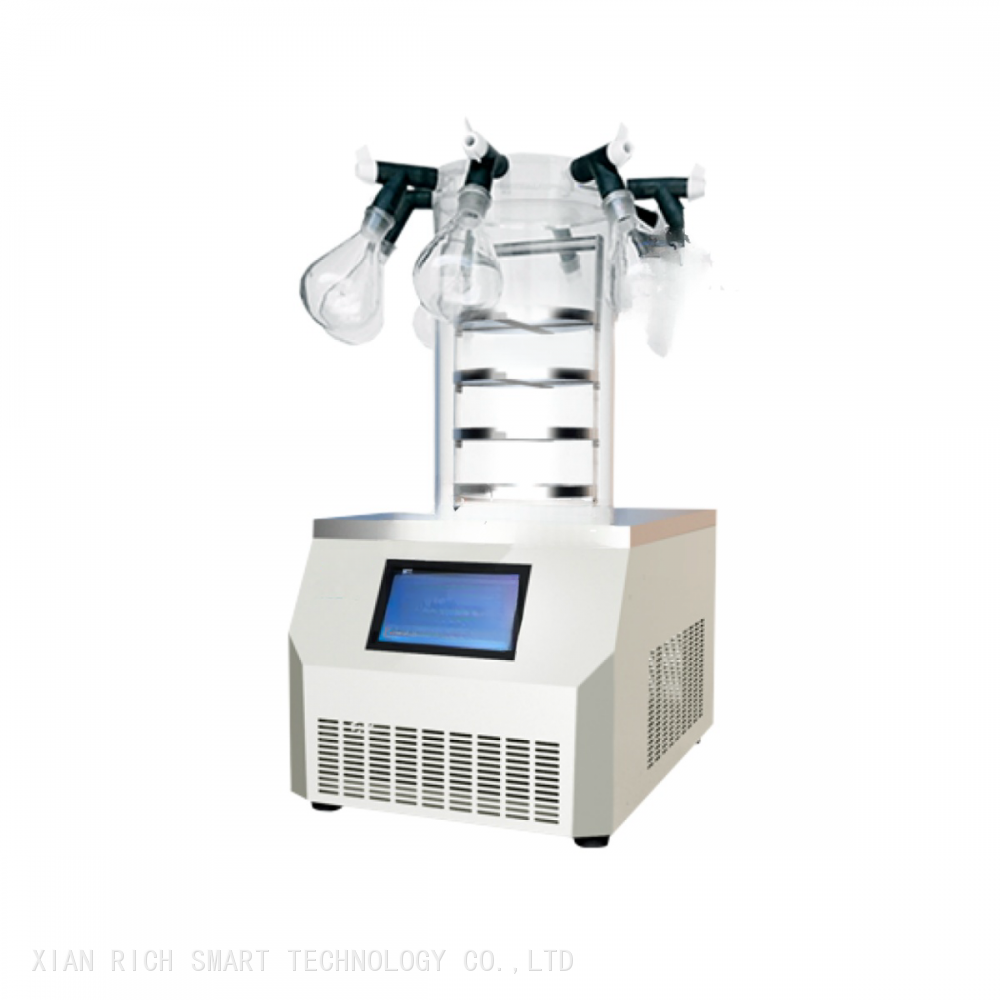

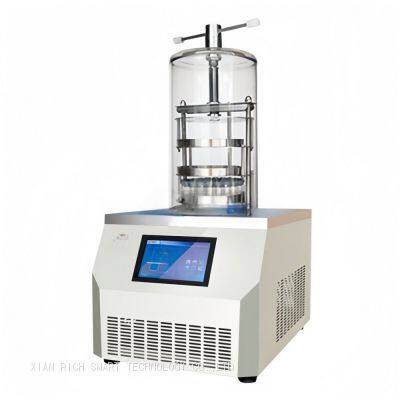

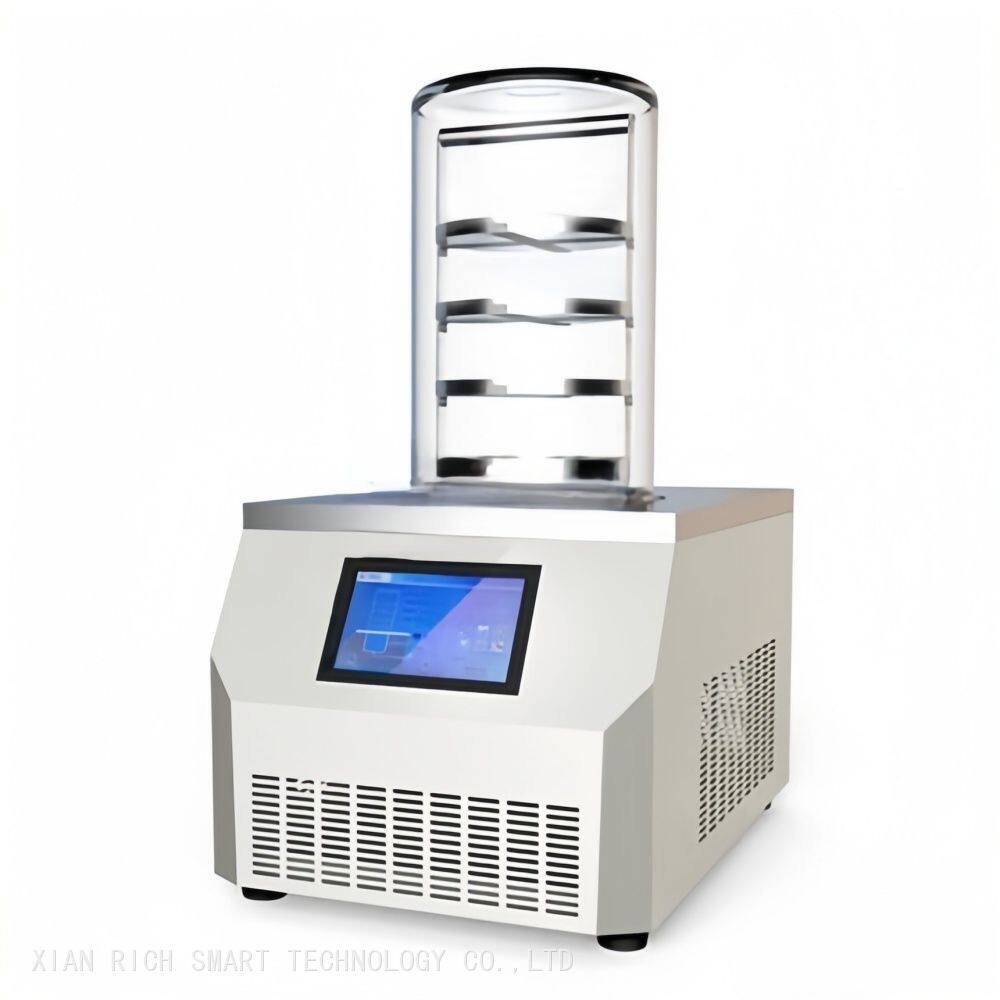

TICH-series Best Price Small Lab Vacuum Freeze Dryer
We are professional for vacuum freeze dryer.Our vacuum freeze dryer is widely applied to medicine,pharmacy,Biology research, chemical industry and food production ,etc
Description of Best Price Small Lab Vacuum Freeze Dryer
The vacuum freeze drying technology, which is also called sublimation drying,is a technical method that freezes the samples in advance,and then sublimates its moisture in vacuum state.
After the freeze drying process,a long term preservation for products is much easier.They can be restored to the original state and maintain their chemical and biological characteristics after being watered.
Customized Optional:
● Optional mobile phone APP.
● Optional -80℃ equipment.
● Optional external bottle hanging device, such as eggplant bottle interface or wide-mouth bottle interface.
● Optional imported brand vacuum pump to ensure more reliable operation.
● Optional vacuum degree adjustment.
● Optional eutectic point test function, convenient for exploring the freeze-drying process of samples.
Specification
Model | Unit | RICH-10 | RICH-12 | RICH-18 | ||||
Specification | Top-press | Ordinary | Top-press | Ordinary | Top-press | Ordinary | ||
Freeze-drying area | m² | 0.08 | 0.12 | 0.08 | 0.12 | 0.09 | 0.18 | 0.27 |
Cold trap temp | ℃ | <-55℃;<-80℃,-110℃(optional) | ||||||
Vacuum degree | Pa | <5 | ||||||
Water-capture capability | Kg/24 | 3~4 | 3~4 | 6 | ||||
Material tray | mm | Dia180*3 | Dia200*4 | Dia180*3 | Dia200*4 | Dia200*3 | Dia200*4 | Dia200*6 |
Power | w | 970 | 1070 | 1400 | ||||
Tray spacing | mm | 70 | 70 | 70 | ||||
Material volume put in device | L | 0.8 | 1.2 | 0.8 | 1.2 | 0.9 | 1.8 | 2.7 |
12mm penicillin bottle | Pcs | 492 | 492 | - | 615 | |||
16mm penicillin bottle | Pcs | 297 | 297 | 345 | ||||
C22mm penicillin bottle | Pcs | 147 | 147 | 183 | ||||
Dimension of overall(60℃) | mm | 615x450x370 | 580x500x720 | 630x580x970 | ||||
Dimension of overall (85℃) | mm | 850x680x405 | 770x550x720 | 810x580x950 | ||||
Drying chamber | mm | Dia260x430 | Dia260x490 | Dia260x430 | Dia260x490 | φ300x445 | Dia300x540 | |
Diameter of cold trap | mm | Dia215×140 | Dia215x240 | Dia270x400 | ||||
Defrosting | - | Electric defrost | ||||||
Power | 1P,220V | |||||||
Eggplant shaped bottle 100ml/250ml/500ml/1000ml | 10D/10C have | 12D/12C have | 18D/18C have | |||||
