Inlet Flowmeter DE10 (WTC10)

Inlet flowmeter DE10 (WTC10)

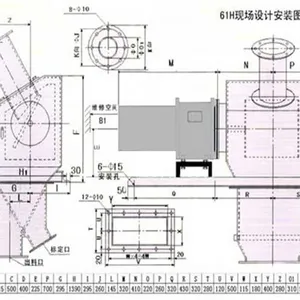

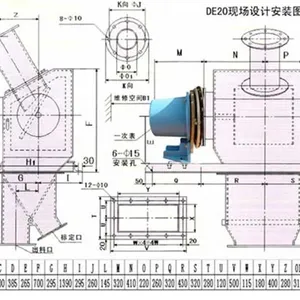

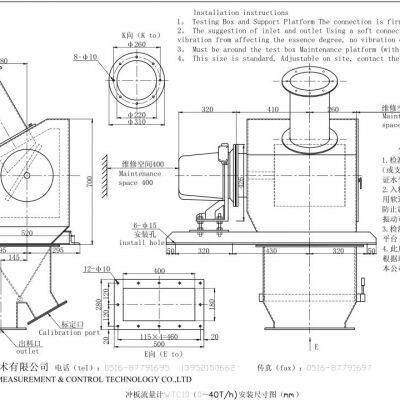

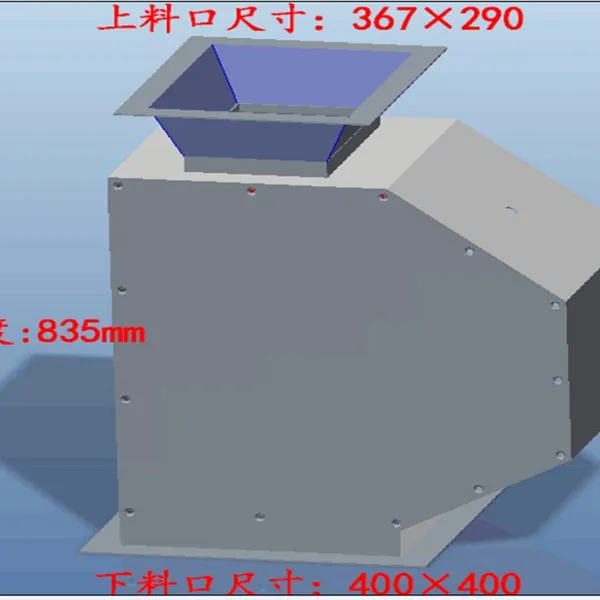

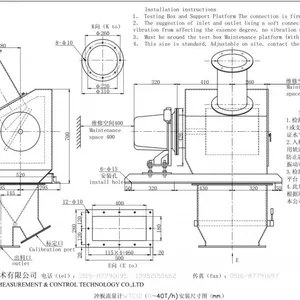

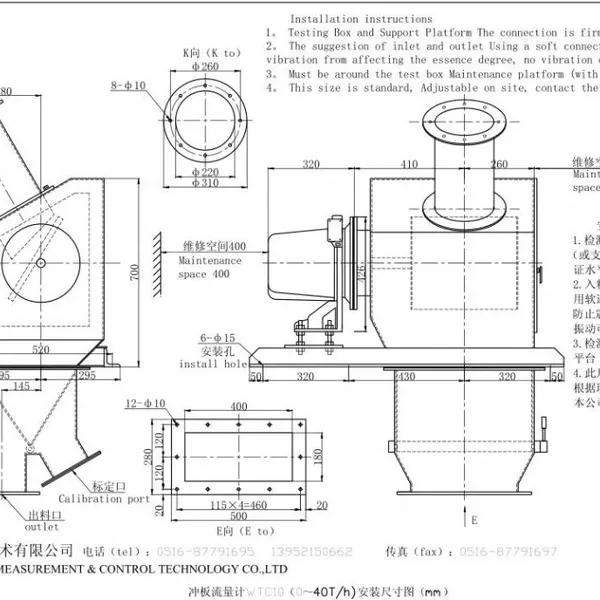

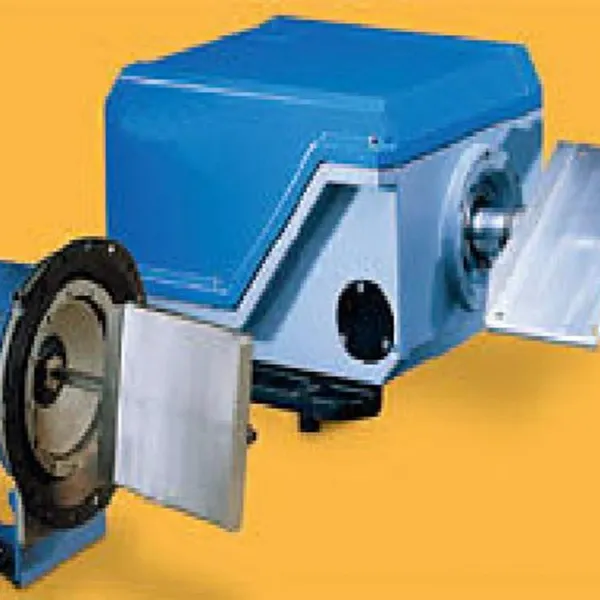

The system can measure bulk materials ranging from 0.75 tons per hour to 800 tons per hour. Featuring a patented support system and wave spring mechanism, the detection plate is restricted to horizontal movement. This displacement is detected by a high-resolution sensor, which generates a voltage signal that is converted into a noise-insensitive pulse frequency-modulated digital signal. merit The innovative design enables flowmeters to operate in harsh industrial environments, maintaining measurement accuracy unaffected by shifting impact points on the detection plate. Material buildup on the plate doesn't affect zero-point calibration, ensuring high reliability and low maintenance requirements. The system features a mechanical vibration damping mechanism to absorb shocks or reduce vibrations. The sensor is housed within an isolation casing that shields it from material flow disturbances, enabling precise measurement even with pulsating or fluctuating flows. The customized impact plate flowmeter housing ensures robust performance through optimized engineering Xuzhou Weitaike can design boxes specifically for customers to meet their special requirements. These boxes can be connected to existing flanges. In addition, they are easier to install, usually take up very little space, and can ensure the working performance of the plate flow meter. Specifications and parameters Measurement range: 0-25 tons/hour ~0-800 tons/hour Standard temperature: +10℃ to +80℃ (lower or higher temperature configurations are available) Material temperature: +10℃~+80℃ Certification (optional): FM certification, Class I and II 1 and 2 Part A-G group, only used in combination with Vitek 6706 or MT2106 instrument in the safety area. Offset measurement: measured by linear differential converter, no detection board weight: 61 kg, dustproof: completely sealed from the detection board housing. Technical parameters of Weitek DE10 flowmeter: Measurement range: suitable for 0-100kg/h-40t/h impact plate size: 200X200mm-400X400mm Power supply: 198---242v Output: analog 4---20mA Environment temperature: -40℃---400℃ measurement accuracy: 0.5%---1.5% Material drop: 500mm--750mm The working principle of the surge flow meter involves directing bulk materials through a guide channel to impact the measuring sensing plate connected to DE10 or DE20 sensors, creating horizontal displacement. The sensor generates a voltage signal (0-24V), which is converted into an analog signal by transmitter 360 and transmitted to integrator MT2106/MT2107 for parameter adjustment. Simultaneously, the integrator processes and displays both instantaneous and cumulative flow rates to enhance accuracy. The DME170's operation is based on Newton's law formula F=Ma. The DE10 and DE20 plate flow meters are specially designed based on decades of expertise in dynamic weighing. Specifically engineered for continuous measurement of instantaneous flow rates and total accumulations of powdered, granular, and other bulk materials. Widely applicable in process control across industries including chemical, construction materials, metallurgy, power generation, and coal production. Key features of Weitake plate flow meters: 1. Operating temperature range: -4℃ to +60℃ 2. Handling capacity: 50 kg/h to 800 t/h 3. Linear accuracy:<1% 4. Suitable for powdered, granular, and lump materials 5. High reliability with minimal maintenance 6. Zero drift caused by adhesion 7. Compact design with lightweight and space-saving features 8. Widely adopted across industrial sectors
