Electronic Belt Scale ICS-17A

Electronic belt scale ICS-17A

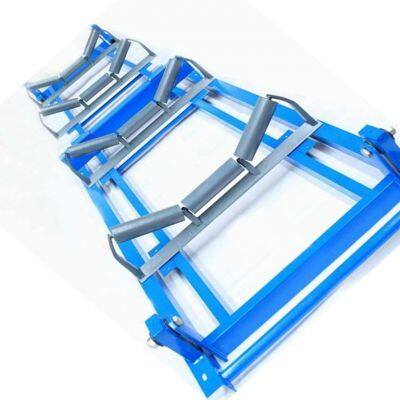

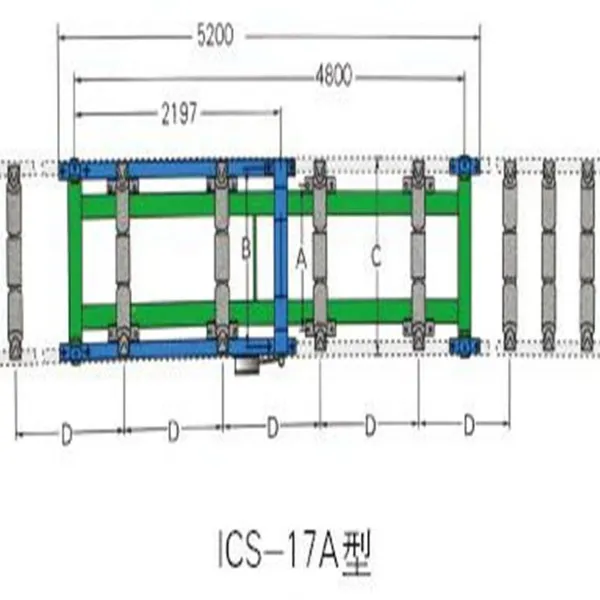

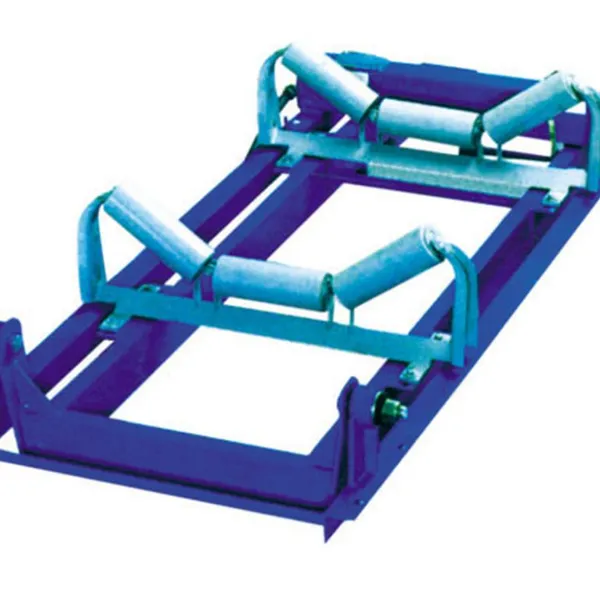

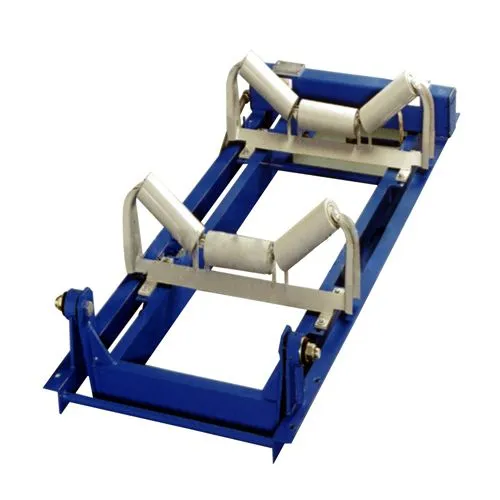

WEIGHTEC ICs-17A electronic belt scale, with a dynamic cumulative error of less than ±0.25%, is suitable for weighing process control in industrial enterprises, such as production quantity detection, quantitative product loading control, and inventory monitoring. It provides important data information for factory automatic control and modern management. system composition ICS-17 type electronic belt scale is composed of four parts: ICS-17 type weighing bridge, weighing sensor, 60-12C type speed sensor and speed roller, 2001,2105,6001B,6105BVEG20610 weighing controller, belt scale accumulator, feeder controller WBST8000 weighing instrument WBST3000 controller. Weighing bridge The ICS-17 weighing bridge features four or two sets of idlers mounted on dual levers, supported by two tension-type sensors with a frictionless ear-shaft pivot at the outer end. This enclosed design effectively mitigates the impact of uneven loading on measurement accuracy while providing shockproofing, moisture resistance, corrosion protection, and material retention prevention. These advantages eliminate operational issues associated with blade mechanisms and bearing systems in harsh environments. The main beams utilize rectangular steel tubes, ensuring structural rigidity, reduced self-weight, and minimized surface dust accumulation. To ensure system stability, high-precision resistive strain gauge sensors are installed at tension points to minimize nonlinear errors. The ICS-17A weighing bridge can be directly installed in conveyor frames of various widths, positioned between upper and lower conveyor belts without occupying vertical space. This factory-assembled unit allows quick and easy installation and calibration. It adapts to belt widths ranging from 400 to 2000mm. Weighing sensors ICS-17A series of electronic belt scales are all using pull-type electronic strain 9363N,9363,9363-LS weighing sensors. The main technical indicators are as follows: The housing has S-type sealing protection, nonlinearity:<0.03% FS, repeatability: <0.01% FS, creep: <0.02% FS, zero output: ±1%. At high flow rates, the displacement of the force application point of the sensor's elastomer does not exceed 0.2mm, temperature sensitivity: interval: 0.0008% FS/°F Zero point: 0.0015%FS/oF, lag error: 0.02%, sensitivity error: ±0.1%, overload capacity: 150% of the sensor capacity Speed sensor 60-12C,60-12B, N12B3, N12C The speed sensor is mounted on the tail roller, large-diameter speed measurement drum, or speed measurement roller. The speed measurement drum/roller is installed on the upper surface of the return belt, eliminating the impact caused by belt slippage. This speed sensor is a digital brushless pulse generator. During belt operation, the speed sensor emits a series of speed pulses, each pulse representing a unit length of belt travel. The pulse frequency is proportional to the belt speed. The shell material is cast aluminum, which can be adapted to the open working environment. The AC pulse generator does not need to adjust or replace the carbon brush. The brushless AC pulse generator does not need to adjust or calibrate, and the maintenance-free soft connection technology can more effectively ensure the speed measurement accuracy and greatly improve the service life of the equipment 2001, WTA75-03/WTA-75-03-03/WTA-75-03, WTCHN9001VEG20610 weighing control instrument 6001B accumulator 6000INTEGRATOR accumulator, 6105B feeder controller. The 32-bit CPU and 24-bit A/D converter enhance operational speed and measurement accuracy. All belt scale data is displayed on a high-brightness four-line vacuum fluorescent screen. The menu-style panel operation aligns with modern computer interaction habits. When modifying belt scale parameters, existing data remains accessible for reference to minimize human error. Multi-level password protection ensures user accessibility. Linear compensation maintains consistent accuracy across 25%-100% rated load ranges. Optional analog outputs display material flow, weight, or velocity. Delayed analog output enables precise control during actual operations. Simultaneous analog input/output boards (single or dual voltage/current channels) facilitate control or compensation functions. RS-232/RS-485 communication boards allow flexible configuration. The 2000 series offers models 2001 and 2105. The 201 model features dual-screen digital display: upper screen shows cumulative totals, lower screen displays real-time flow. Data inputs use key-based command codes (e.g., 01P for zero point adjustment). Remote counting supports both contactless and contact-based methods, with contactless output as DC 24V signal. Optional communication boards enable RS-485 standard ports for host computer interfaces. Current output boards provide 0-20mA or 4-20mA signals. Optional printing expansion boards connect to MP/PP series parallel printers.
