BELT SCALE

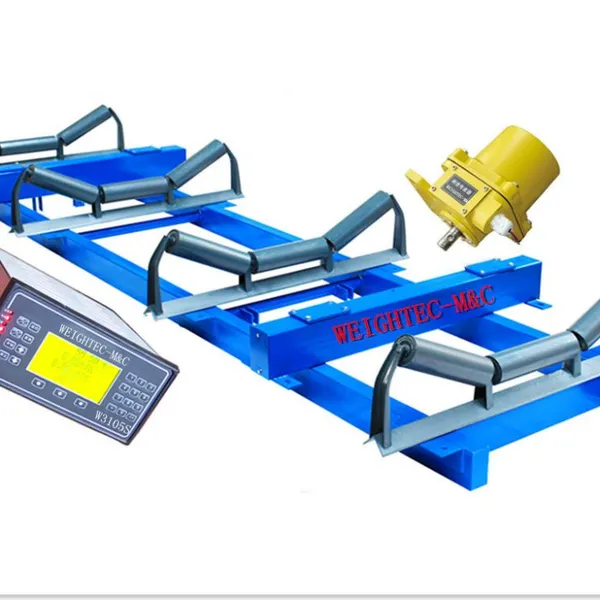

ICS-14A high precision electronic belt scale WTCICS-FH Product name: ICS-14A high precision electronic belt scale Product category: WIEGHTEC Wirtecramzi ICS electronic belt scale Screw scale product description ICS-14A series high precision electronic belt scale ICS-14A high precision electronic belt scale, adopts full suspension weighing bridge, digital signal transmission and processing technology, dynamic cumulative error less than ±0.25%, suitable for enterprise internal and external settlement, or other weighing accuracy requirements of higher places. system composition The ICS-14A electronic belt scale consists of four parts: the ICS-14A weighing bridge, load cell, 60-12C,60-12B, SA205, N12B, N12C, WTCPLR-12 speed sensors and speed rollers, 2001,2105,6001B,6105B weighing controllers, belt scale accumulator, VEG20610 feeder controller, WBST8000 weighing instrument, and WBST3000 controller. Weighing bridge The ICS-14A weighing bridge structure features four sets of weighing rollers with a fully floating design, eliminating pivot points and moving parts. Its rectangular steel tube construction ensures exceptional rigidity and reduced self-weight while maximizing surface area for dust accumulation. High-precision strain gauge sensors are installed at tension points to minimize nonlinear errors and maintain system stability, requiring minimal maintenance. Four tension-type load cells suspended from two cross beams provide symmetrical support, enabling quick on-site installation using just eight bolts for secure fixation. Weighing sensors ICS-14 series electronic belt scales all use pull-type electronic strain gauge weighing sensors. The main technical indicators are as follows: Shell S type sealing protection, nonlinearity:<0.03% FS, non-repeatability: <0.01% FS, creep: <0.02% FS, zero output: ±1%. Under large flow, the displacement of the force application point of the sensor elastomer is not more than 0.2mm, temperature sensitivity: interval: 0.0008%FS/oF Zero point: 0.0015%FS/oF, lag error: 0.02%, sensitivity error: ±0.1%, overload capacity: 150% of the sensor capacity Speed sensor 60-12C,60-12B, N12B3, N12C The speed sensor is mounted on the tail roller, large-diameter speed measurement drum, or speed measurement roller. The speed measurement drum/roller is installed on the upper surface of the return belt, eliminating the impact caused by belt slippage. This speed sensor is a digital brushless pulse generator. During belt operation, the speed sensor emits a series of speed pulses, each representing one unit length of the belt's travel. The pulse frequency is proportional to the belt speed. The shell is made of cast aluminum, which can adapt to the open working environment The AC pulse generator does not require adjustment or replacement of the carbon brush Brushless brush type AC pulse generator, no need to adjust, calibration, maintenance free The soft connection technology can ensure the speed measurement accuracy more effectively and greatly improve the service life of the equipment. 2001, WTA75-03/WTA-75-03-03/WTA-75-03, WTCHN9001 weighing control instrument Using 32-bit CPU and 24-bit A/D, the operation speed is accelerated and the measurement accuracy is improved; All the data of the belt scale is displayed on a high brightness four-line vacuum fluorescent screen; Menu panel operation mode, in line with people's computer operation habits; When the data related to the belt scale is changed, the original data can be retained for query, so as to reduce human error; Provides multi-level password protection for different users; provides linear compensation to ensure the same accuracy of belt scale when the load is 25% to 100% of the rated load; Optional analog output for flow, weight or speed display; Optional analog output delay for actual control use; Optional analog input/output board (one or two voltage and current input/output) for control or compensation; Optional RS-232/RS-485 communication board, from this hardware setting you can choose one of the two ways; The 2000 series instrument has 2001 type and 2105 type for users to choose; Type 201 weighing instrument The display is a dual-screen digital display, the upper screen shows the cumulative amount, the lower screen shows the instantaneous flow; The number input and output are called by means of keys in the form of instruction codes, for example: 01P represents the zero value; Remote counting can be selected by contact and contactless mode. In contactless mode, the output is a DC 24V signal; The optional communication board is used for the upper computer communication, and the communication mode is RS-485 standard port; Optional current output board, output is standard 0-20mA or 4-20mA signal; The optional printing expansion board can be connected to the output interface of mp or pp series parallel port printer.
