GE IS220UCSAH1AK PAMC Acoustic Monitor Processor

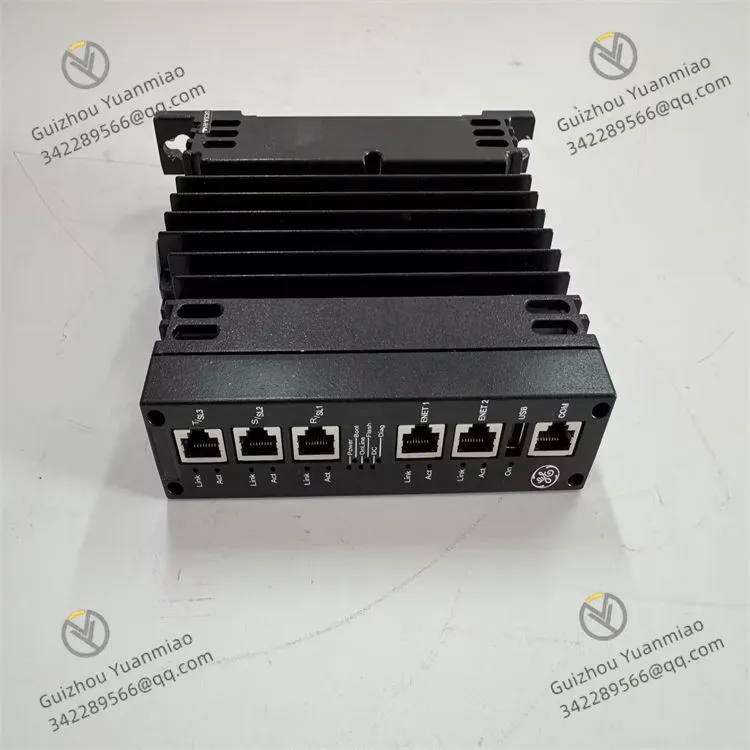

GE IS220UCSAH1AK PAMC Acoustic Monitor Processor photo-1

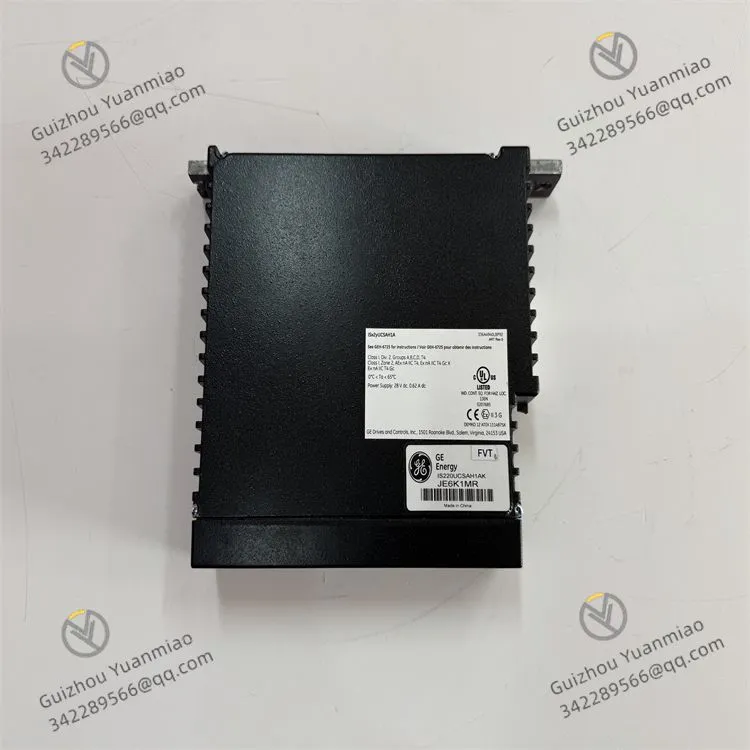

GE IS220UCSAH1AK PAMC Acoustic Monitor Processor photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -40℃~70℃

I. Product Overview

The GE IS220UCSAH1AK is a universal control module in the Speedtronic Mark VIe series control system developed by General Electric (GE). It is specifically designed for logic control and signal processing of industrial - grade steam turbines, gas turbines, and combined cycle units. As the "control logic execution unit" of the Mark VIe system, it undertakes the core responsibilities of receiving signals from on - site sensors/transmitters, executing preset control algorithms (such as start - stop logic, interlock protection, and parameter adjustment), and outputting control commands to actuators. Meanwhile, it is equipped with signal isolation, fault diagnosis, and status feedback functions. Serving as a key hardware connecting the control layer and the on - site execution layer, it ensures the stable, safe, and efficient operation of units in harsh industrial scenarios like power generation, petrochemicals, and metallurgy.

This module adopts a standard 3U VME industrial board type (with a height of approximately 100mm, a width of approximately 233mm, and a thickness of approximately 22mm) and has no independent operation panel. It realizes high - speed data interaction and stable power supply with the control module and I/O module through the system backplane. The surface of the module adopts an industrial - grade anti - interference layout. Key logic chips and driving components are equipped with metal shields, and the pin soldering process complies with the IPC - A - 610 Class 3 industrial standard. It can withstand long - term high - load operation and complex electromagnetic environments (such as high - voltage motor start - stop and high - frequency frequency converter interference). Additionally, it has wide - temperature and moisture - proof characteristics, enabling stable operation in industrial sites with multiple interferences and wide temperature differences, thus ensuring the accurate execution of control logic and the safety of equipment driving.

II. Technical Parameters

Control and Signal Processing Parameters

Parameter Category	Specific Specifications
Control Core	32 - bit industrial - grade MCU, with a main frequency of ≥200MHz, supporting a multi - task real - time operating system (RTOS), and a control cycle of ≤1ms
Input Signal Support	Digital input: 16 channels of dry contacts/wet contacts (24V DC), with a response time of ≤100μs; Analog input: 8 channels of 4 - 20mA DC (accuracy ±0.1% FS), supporting the access of thermocouple (Type K/J) and RTD (PT100) signals
Output Signal Capability	Digital output: 12 channels of relay output (dry contacts, normally open/normally closed configurable, rated current 2A@250V AC); Analog output: 4 channels of 4 - 20mA DC (load resistance ≤500Ω, accuracy ±0.2% FS)
Logic Operation Capability	Supports programming in Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST), supports the operation of more than 1000 logic points, and has an operation cycle of ≤1ms
Interlock Protection Response	Supports emergency shutdown (ESD) interlock logic, with a response time of ≤5ms, meeting the rapidity requirement for unit safety protection

2. Electrical and Safety Features

Isolation Protection: The isolation voltage between input/output and the backplane is ≥2.5kVrms, and the isolation voltage between channels is ≥2kVrms. It adopts a dual design of photoelectric isolation and power isolation, which blocks common - mode interference (such as 500V common - mode voltage of frequency converters) and ground loops in industrial sites, with a signal transmission accuracy rate of 99.999%.
Overvoltage and Overcurrent Protection: The digital output channels are equipped with self - recovery fuses (rated current 3A), the analog output channels have a current limit of 30mA, and the input channels have ±30V DC overvoltage protection, preventing module damage caused by on - site wiring errors or equipment failures.
Redundant Power Supply: Supports redundant power supply of +5V DC (digital circuit) and ±12V DC (analog circuit), with an allowable voltage fluctuation of ±5%. When a power failure occurs, an alarm is triggered through the backplane bus to ensure the non - interruption of control logic.

3. Environmental and Reliability Indicators

Operating Temperature: -25℃~65℃ (wide - temperature design), suitable for scenarios such as low - temperature outdoor control cabinets and high - temperature industrial workshops (e.g., iron and steel plants, oil refineries).
Storage Temperature: -40℃~85℃, with no risk of component aging or pin corrosion during long - term storage.
Relative Humidity: 5%~95% (non - condensing). The board surface is coated with a moisture - proof coating with a thickness of ≥0.1mm, enabling stable operation in high - humidity environments (e.g., coastal power plants).
Anti - interference Performance: Complies with the IEC 61000 - 6 - 2 industrial anti - interference standard. It has electrostatic discharge (ESD) protection of ±2kV (contact discharge)/±4kV (air discharge) and electrical fast transient (EFT) protection of ±1kV (power port)/±0.5kV (signal port).
Mean Time Between Failures (MTBF): ≥120,000 hours. Key components (such as MCU and relays) use industrial - grade long - life devices, reducing maintenance frequency and downtime risks.

4. Communication and Diagnosis Parameters

Communication Interface: 1 VME64x backplane interface, with a data transmission rate of 40MB/s with the Mark VIe controller, supporting interrupt requests (such as interlock triggering and fault alarm), and a response time of ≤50ms.
Diagnosis Function: Supports channel short - circuit/open - circuit detection, power failure detection, and MCU operation abnormality detection. The fault information includes the fault type and location (e.g., "DO CH3 Short Circuit"), which is uploaded to the monitoring system through the backplane bus.
Configuration Method: Supports remote configuration of control logic, input/output parameters, and alarm thresholds via GE ToolboxST software. The configuration parameters are saved when the power is off (with a built - in 64KB EEPROM), and supports configuration file backup and batch deployment.

III. Core Functional Features

1. Multi - functional Control and Signal Processing

Flexible Signal Adaptation: It is compatible with multiple types of inputs such as digital, analog, and temperature signals (thermocouple/RTD). It can simultaneously handle tasks like unit start - stop logic (digital), temperature monitoring (thermocouple), and pressure adjustment (analog) without additional modules, saving 30% of the cabinet space.
High - precision Control Algorithm: It has a built - in PID adjustment module (supporting online setting of proportional, integral, and differential parameters), which can realize closed - loop control such as steam turbine speed adjustment and gas turbine fuel valve control, with an adjustment accuracy of ±0.5%, meeting the requirement for stable unit operation.
Rapid Interlock Response: For key interlock logics such as emergency shutdown (ESD) and over - temperature protection, a hardware - level rapid response design is adopted. The time from signal triggering to output action is ≤5ms, avoiding equipment damage caused by the expansion of unit faults.

2. High Reliability and Safety Protection

Dual Isolation Design: The input/output and control circuits are completely electrically isolated, preventing reverse intrusion of on - site load interference into the control layer, and ensuring stable operation even in electromagnetic environments with dense high - power motors (e.g., steel rolling workshops).
Fault Self - recovery: The self - recovery fuses of the digital output channels automatically reset after the overload fault is eliminated, without manual replacement, reducing maintenance workload. When an analog channel fails, it automatically switches to a standby channel (system - configured redundancy is required) to ensure non - interruption of control.
Status Closed - loop Feedback: Each output channel integrates a status feedback function. It confirms whether the actuator responds through feedback signals (e.g., "DO command issued but no feedback action" triggers an alarm), avoiding control misjudgment of "command issued but equipment not executed".

3. Convenient Configuration and Operation & Maintenance

Software - based Logic Programming: Visual programming can be carried out through GE ToolboxST software (supporting FBD/LD/ST languages). The control logic (such as adjusting interlock thresholds) can be quickly modified without on - site hardware changes, and the configuration update can be completed within 5 minutes.
Accurate Fault Location: Fault information is displayed in real - time on the system monitoring interface (including channel number and fault type). Combined with the LED indicators on the front panel of the module (PWR: power green, RUN: operation green, ERR: fault red), operation and maintenance personnel can quickly locate problems, reducing troubleshooting time by 60%.
Status Visualization: The front panel is equipped with 8 channel status LED lights (one indicator for each input/output channel), which intuitively display the on - off status of signals. On - site personnel can judge the operation status of the module without connecting to software.

Product Tags: IS220UCSAH1AK
