Home > Products > GE > GE IS200TTURH1CCC S1DF00Z Turbine Terminal Board

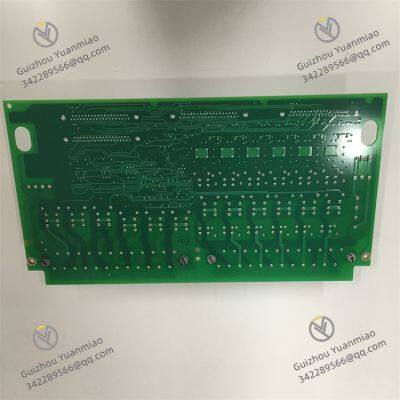

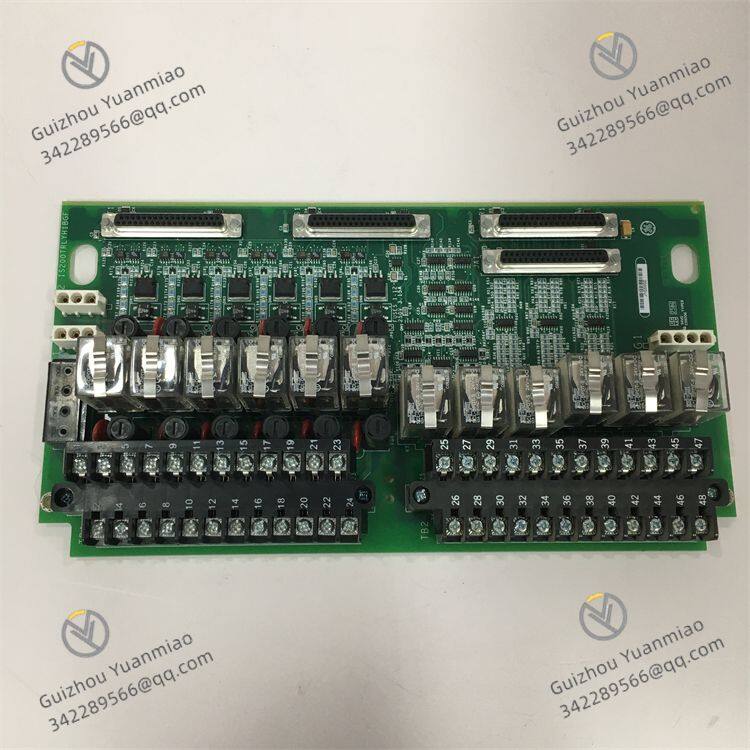

GE IS200TTURH1CCC S1DF00Z Turbine Terminal Board

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating Temperature	20℃ to 60℃
Relative Humidity	5% to 95% (non-condensing)	Storage Temperature	-40℃~85℃

Product Description

I. Overview

The GE IS200TTURH1CCC S1DF00Z is a critical terminal adapter board and an important component of the Mark VI/Mark VIE Speedtronic control system ecosystem. In the system architecture, it plays a fundamental and key role as a "physical connection hub". Serving as a standardized, low-profile interface between the I/O pack backplane and on-site wiring, it organizes and routes various complex on-site signals, power supplies, and communication lines in an orderly manner. It is the basic hardware infrastructure that ensures stable system operation and efficient maintenance.

This model has two common variants: the standard IS200TTURH1C and the IS200TTURH1CCC with "Class C" conformal coating. The latter, through special coating treatment, provides enhanced resistance to moisture, salt spray, and chemical contaminants. It is suitable for harsh environments such as offshore oil platforms and chemical production workshops, ensuring stable electrical connection performance even under severe operating conditions and greatly expanding the scope of application scenarios.

II. Functional Features

(1) Convenient On-Site Wiring ConnectionDiverse Terminal Options

It is equipped with pluggable on-site wiring terminal blocks, supporting multiple types including screw-clamp, spring-clamp, and barrier-type, with clear keyed differentiation based on functions. For example, when connecting cables of different on-site devices such as sensors and actuators, connections can be completed quickly and accurately according to terminal types, avoiding misplugging. At the same time, it improves connection stability and prevents signal interruption caused by factors such as vibration and loosening. Each terminal can withstand a current of up to 10A, meeting the power transmission needs of most industrial on-site equipment.

Large-Scale Connection Capacity

Taking barrier-type terminal blocks as an example, each block has 24 terminals, and a common configuration includes 2 terminal blocks, enabling simultaneous access of up to 48 on-site lines. This is sufficient to meet the complex wiring needs of large-scale turbine control systems. Whether it is analog signals (such as signals from temperature and pressure sensors), digital signals (such as signals from limit switches and relay contacts), or power supply cables, corresponding connection positions can be found on this adapter board to achieve unified management.

(2) Simplified Installation and Maintenance ProcessesAdvantages of Standardized Interfaces

Through standardized design, a unified and standardized connection bridge is established between the Mark VIe I/O pack backplane and on-site wiring. During the new system installation phase, technicians can quickly complete wiring work in accordance with unified standards, reducing repeated debugging caused by inconsistent interfaces. During system maintenance, fault lines can also be quickly located based on the characteristics of standardized interfaces, significantly shortening maintenance time and costs.

Modular Replacement Feature

It allows the entire terminal block to be plugged and unplugged. When replacing the module, there is no need to remove and reconnect each cable one by one. Simply unplug the terminal block as a whole, replace it with a new IS200TTURH1CCC S1DF00Z module, and then plug the terminal block back in to complete the module replacement. This greatly improves equipment maintenance efficiency and reduces downtime, which is of great significance for ensuring the stable operation of continuously operating equipment such as turbines.

(3) Enhanced Environmental Adaptability (for CCC Variant)Moisture and Salt Spray Resistance

The circuit board surface of the IS200TTURH1CCC version is coated with a Class C conformal coating. This coating has excellent moisture resistance and can operate stably for a long time in an environment with a relative humidity of up to 95% (non-condensing). In environments with high humidity and high salt content, such as power plants in coastal areas and offshore oil and gas extraction platforms, it effectively prevents faults such as circuit short circuits and corrosion caused by moisture condensation and salt spray erosion, ensuring the reliable operation of the equipment.

Chemical Contamination Resistance

In environments with chemical contaminants, such as chemical production workshops, the Class C coating can also resist the erosion of common chemical substances, protecting the electronic components and circuits on the circuit board from damage, maintaining normal electrical connection and signal transmission functions, and ensuring stable system operation even in complex chemical environments.

III. Technical Parameters

(1) Electrical ParametersVoltage Specification

It can withstand an AC or DC voltage of up to 300V, and is compatible with equipment of various voltage levels in industrial sites. Whether it is low-voltage sensor signal transmission or high-voltage power supply connection for power equipment, it can achieve safe and stable routing, meeting the voltage requirements of electrical connections in different scenarios.

Current-Carrying Capacity

Each terminal has a current-carrying capacity of 10A. This parameter ensures that the terminal will not be damaged due to overheating when transmitting large currents, guaranteeing the stability and reliability of power transmission, and can meet the power needs of driving large-scale equipment such as valves and motors.

(2) Environmental ParametersHumidity Range

The standard operating humidity environment has a maximum relative humidity of 95% (non-condensing). After special coating treatment, the CCC variant can operate stably for a long time at this maximum humidity level, avoiding electrical faults such as short circuits and leakage caused by a humid environment, and is suitable for industrial sites with various humid environments.

Temperature Range

The normal operating temperature range of the equipment is -20℃ to 60℃, and the storage temperature range is -40℃ to 85℃. This wide temperature range design enables it to operate normally in outdoor control cabinets in cold northern regions and stably in high-temperature industrial plants in tropical regions. At the same time, during long-term storage, component aging and performance degradation caused by temperature issues are avoided.

(3) Mechanical ParametersTerminal Specifications

There are various types of terminal blocks, including screw-clamp, spring-clamp, and barrier-type. Taking the common configuration of 2 barrier-type terminal blocks as an example, each block has 24 terminals, totaling 48 terminals. The terminals are compatible with #12 AWG wire gauge and can connect cables of the corresponding specification, ensuring connection stability and electrical performance.

Installation Dimensions

The overall size is compactly designed to fit the standard slots of GE Mark series cabinets. The specific dimensions (length × width × height) are approximately [X] mm × [X] mm × [X] mm (exact values to be supplemented). It can efficiently implement wiring and routing functions in the limited cabinet space while facilitating installation and maintenance operations.

IV. Working Principle

In the GE Mark VI/Mark VIE Speedtronic control system, the IS200TTURH1CCC S1DF00Z mainly undertakes the routing of signals, power supplies, and communication lines. Its working process is as follows:

Signal Routing Process

Analog signals generated by various on-site sensors (such as temperature sensors, pressure sensors, and position sensors) and digital signals output by devices such as limit switches and relays are connected to the corresponding terminals of the IS200TTURH1CCC S1DF00Z via cables. The adapter board aggregates and organizes these signals, then transmits them to subsequent signal processing modules (such as analog input modules and digital input modules) through the backplane bus. During this process, the adapter board only serves as a channel for physical connection and signal transmission, without changing the electrical characteristics of the signals, ensuring that the signals are accurately and quickly transmitted to the control system for processing.

Power Supply Routing Process

Electricity from external power supplies (such as power supplies of different voltage levels including 24V DC, 110V AC, and 220V AC) is connected through the power terminals of the adapter board. The adapter board distributes the power to various on-site devices that require power supply (such as sensors and actuators), and also provides the necessary working power for its own hardware such as terminal blocks. This ensures the stable power supply of the entire connection system and the normal operation of on-site equipment.

Communication Routing Process

When the system has communication needs (such as data interaction with upper computers and communication with remote devices), communication cables are connected to the communication terminals of the adapter board. The adapter board routes the communication signals, enabling smooth transmission between different modules within the control system and between the control system and external devices. This realizes data exchange and command issuance, ensures the normal communication function of the entire system, and meets the requirements of industrial automation control for real-time communication.
