Woodward 8200-1508 Digital Control Module

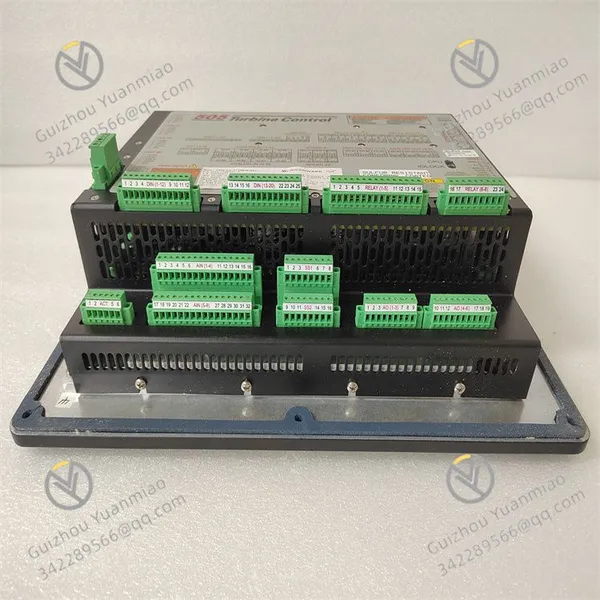

Woodward 8200-1508 Digital Control Module photo-1

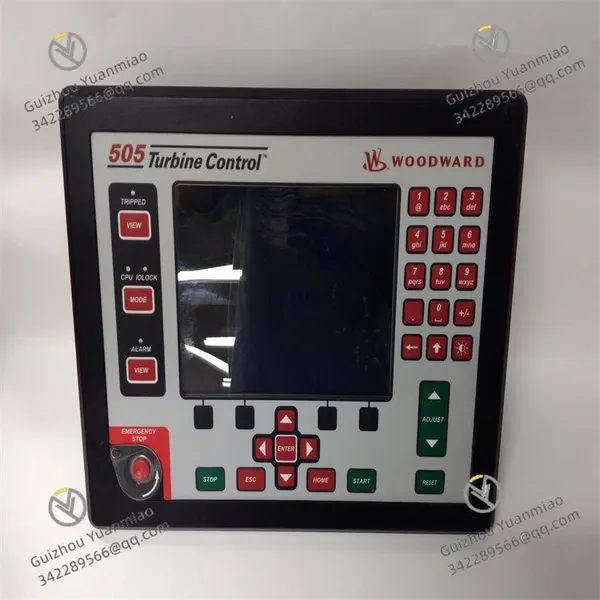

Woodward 8200-1508 Digital Control Module photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Certification:

Other

Function:

Other

Application:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Certification Other

Function Other

Application Other

Brand Other

Number of Stator Other

Number of Poles Other

Casing Protection Other

Starting Mode Other

Speed Other

Woodward 8200-1508 Digital Control Module

Functional Features:

Precise Control: Adopting advanced digital technology, it can accurately manage and adjust parameters such as the speed and load of engines or turbines, and maintain precise speed control under different load conditions.
Strong Adaptability: Suitable for various engine types and application scenarios, it can work stably within a temperature range of -40°C to +85°C, with an IP67 protection rating, enabling it to withstand harsh environments.
Safe and Reliable: Equipped with advanced safety functions, it can provide comprehensive protection against overspeed, overheating, etc. It has also passed relevant certifications and can operate safely in hazardous areas.
Easy Operation and Maintenance: With an intuitive user interface, it is convenient for configuration and operation. It supports remote monitoring and control, and adopts a modular design for easy maintenance.
Convenient Communication: Supports communication protocols such as CAN, RS-232, and Ethernet, enabling communication with other control systems and equipment, and can be seamlessly integrated into PLC systems.

Technical Parameters:

Input Voltage: Usually 24V DC (±10%), and there are also models with 18-32V DC.
Power Consumption: Approximately 20W.
Output Channels: 8 analog outputs and 12 digital outputs. Each digital output can handle a current of up to 2A at 24V DC.
Dimensions: Approximately 215.9mm × 157.48mm × 78.74mm.

Specific Application Cases:

Power Generation Field: In a large power plant, the Woodward 8200-1508 module is used to control gas turbines. It can accurately adjust the air intake and fuel supply of the gas turbine, ensuring that the gas turbine maintains stable speed and output power under different loads. By real-time monitoring various operating parameters of the turbine, such as temperature and pressure, and making precise adjustments according to preset control strategies, it effectively improves power generation efficiency while reducing fuel consumption and equipment failure rates.

Oil and Gas Field: In an offshore oil platform, this module is applied to wellhead pressure control and pipeline flow regulation. It can monitor the wellhead pressure in real-time, and when the pressure exceeds the set value, it automatically adjusts the opening of the throttle valve to control the pressure within a safe range. At the same time, for the natural gas flow in the pipeline, the module can also make precise adjustments according to production needs, ensuring the stable operation of the entire oil and gas extraction and transportation process, and reducing production interruptions and safety hazards caused by abnormal pressure or unstable flow.

Marine Field: A large ocean-going cargo ship uses the Woodward 8200-1508 module to control the ship's propulsion system. The module can accurately adjust the engine speed and torque according to factors such as the ship's sailing speed, load, and sea conditions, achieving efficient and energy-saving navigation. When the ship enters or leaves the port, precise control of the ship's speed and course is required. This module can quickly respond to the operator's instructions and accurately control the propulsion system, ensuring that the ship can dock and depart safely and accurately. In addition, the module is also used for control and monitoring in the ship's auxiliary machinery, such as generators and air conditioning systems, ensuring the stable operation of various equipment on the ship.

Product Tags: 8200-1508
