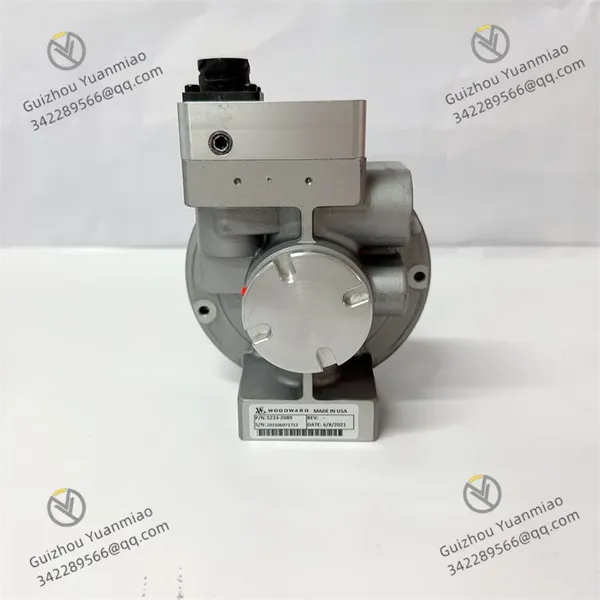

WOODWARD 5233-2089 High-Efficiency Control Module

WOODWARD 5233-2089 is a controller widely used in control scenarios of power equipment such as engines and steam turbines.

•


• Power Supply Parameters: It adopts 24V DC power supply. This power supply mode is widely used in industrial environments and has good stability. Its power input has a certain anti-fluctuation capability, and can work stably within the range of ±10% of the voltage, which can effectively cope with slight fluctuations in the power supply voltage in industrial sites and ensure the normal operation of the controller.

•


• Control Precision: The speed control precision can reach ±0.1% of the rated speed. Such high precision can ensure the stable speed of power equipment during operation, avoiding excessive speed fluctuations that affect the working efficiency and safety of the equipment. In terms of load control, the control precision can also reach ±1%, which can accurately adjust the output load of the equipment to meet the load requirements under different working conditions.

•


• Input and Output Parameters: It is equipped with rich input and output interfaces, including 8 analog input channels, which can receive common analog signals such as 0-10V and 4-20mA, and are used to collect parameters from various sensors such as temperature, pressure, and flow; there are 4 analog output channels, with output signal ranges including 0-10V and 4-20mA, which can be used to control actuators and other equipment. There are 16 digital input channels and 8 digital output channels, which can meet the connection needs with various switching devices and realize the logical control of the equipment.

•


• Environmental Adaptation Parameters: The operating temperature range is -40℃ to 70℃, which can adapt to different environments such as cold northern regions and high-temperature industrial sites; the relative humidity adaptation range is 5%-95% (non-condensing), and it can work stably in humid environments, such as ship engine rooms and other places with high humidity. At the same time, the controller has good anti-vibration performance, can withstand vibrations with a frequency of 10-2000Hz and an acceleration of 10g, as well as an impact of 50g, ensuring that it is not affected by vibrations and impacts generated during the operation of the equipment.

•


• Communication Parameters: It is equipped with a variety of communication interfaces, including RS-485, Ethernet, etc. The RS-485 interface supports the Modbus RTU communication protocol, which can realize short-distance communication with other equipment; the Ethernet interface supports the Modbus TCP/IP protocol, which is convenient for accessing industrial Ethernet to realize remote monitoring and data transmission. The communication rate can reach up to 100Mbps, which can meet the needs of fast transmission of large amounts of data.

•


• High-Precision Control Capability: With advanced control algorithms and precise hardware design, WOODWARD 5233-2089 can perform high-precision control on parameters such as the speed and load of power equipment. During all stages of equipment start-up, operation, and shutdown, it can quickly respond to control commands and stabilize parameters within the set range, which greatly improves the operating efficiency and stability of the equipment and reduces equipment loss caused by parameter fluctuations.

•


• Rich Control Modes: It supports multiple control modes, such as speed control, load control, pressure control, etc., and users can flexibly choose according to actual needs. For example, in the power generation field, the speed control mode can be adopted to ensure the stable output frequency of the generator; in industrial drive scenarios, the load control mode can be selected to meet different load requirements. The switching of multiple control modes is simple and convenient, and can adapt to different working scenarios.

•


• Comprehensive Protection Functions: It has built-in multiple protection mechanisms. When the equipment has abnormal conditions such as overspeed, over-temperature, overload, and low oil pressure, the controller can quickly detect and issue an alarm signal, and take corresponding protection measures at the same time, such as automatically reducing the load, stopping the machine, etc., to prevent the fault from expanding further and protect the safety of the equipment. In addition, it also has a fault memory function, which can record information such as the time and type of the fault, providing convenience for fault troubleshooting.

•


• Flexible Programming and Configuration: It provides intuitive and easy-to-use programming software, allowing users to write programs and configure parameters according to specific control needs. It supports multiple programming methods such as ladder diagrams and function block diagrams, meeting the programming habits of different users. Through the software, various functions of the controller can also be flexibly set to make it better adapt to different equipment and control scenarios.

•


• Strong Communication and Networking Capability: With multiple communication interfaces and supported communication protocols, it can easily realize communication and networking with upper computers, human-machine interfaces, and other control equipment. Operators can view the operating status and various parameters of the equipment in real-time through the remote monitoring system, send control commands remotely, realize centralized monitoring and management, and improve the automation level and management efficiency of industrial control.
