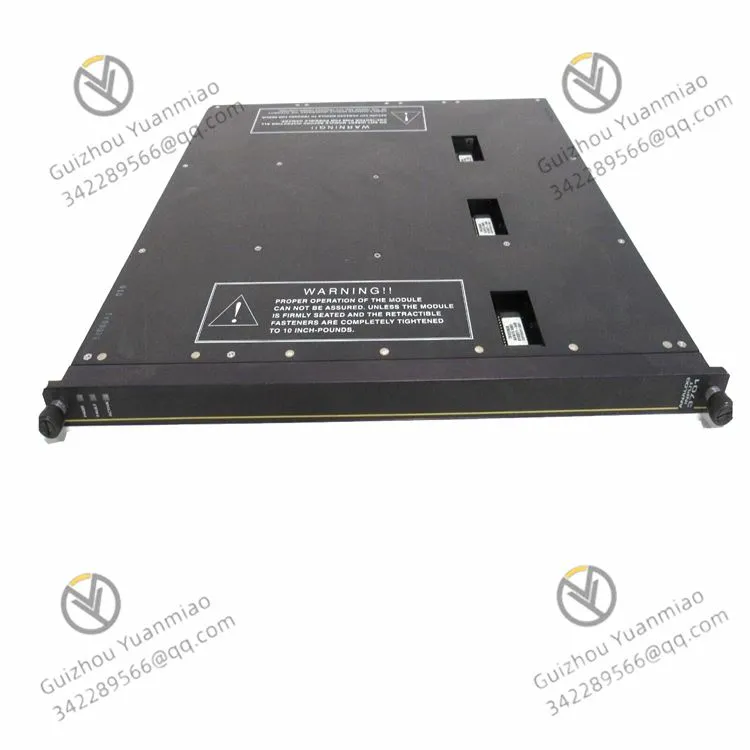

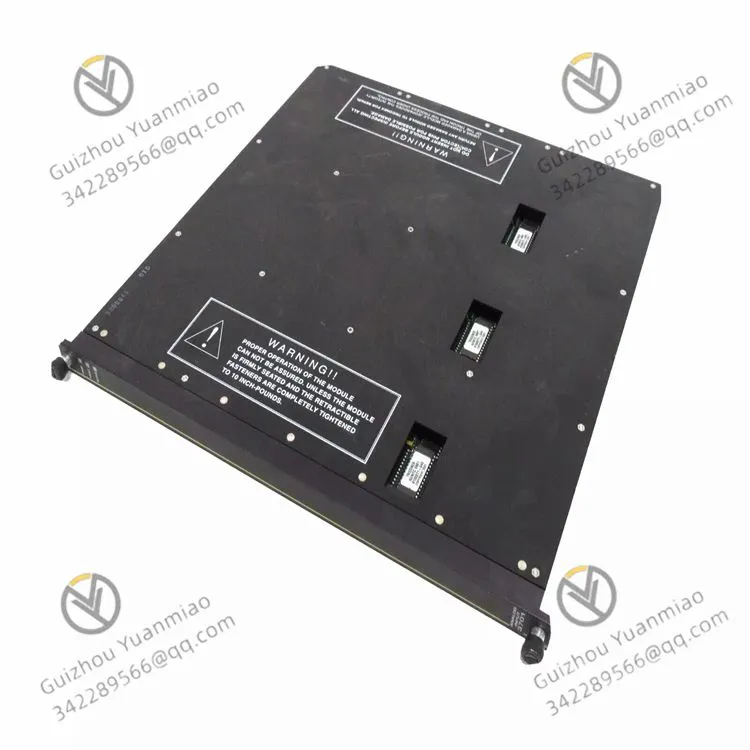

TRICONEX 3701 Power Module

TRICONEX 3701 is an important power supply module in the Triconex safety control system. It is specially designed to provide stable and reliable DC power for I/O modules (such as digital input/output modules, analog modules, etc.) in the system. It serves as the "power core" ensuring the normal operation of the I/O layer of the entire control system. It is compatible with the Triple Modular Redundancy (TMR) architecture and is widely used in safety instrumented systems (SIS) or key process control scenarios with strict requirements on power supply reliability in industries such as petrochemical, electric power, and rail transit.

I. Core Functions and Positioning

The core function of the 3701 power supply module is to provide continuous and stable DC power supply for the I/O modules of the Triconex system, with specific functions including:

Convert externally input AC or DC power (such as 220V AC, 24V DC, etc.) into standard DC voltage required by I/O modules (usually 5V DC or 24V DC, depending on the model);
Equipped with power voltage stabilization and filtering functions to reduce the impact of external power grid fluctuations (such as voltage surges, sags, noise interference) on I/O modules, ensuring stable operation of module circuits;
Compatible with the TMR architecture, providing reliability of power output through redundant design to avoid power loss of I/O modules due to single-point power supply failure;
Built-in status monitoring and fault alarm functions to real-time monitor parameters such as output voltage, current, and module temperature. In case of abnormalities, fault information is fed back through indicator lights or system communication for quick troubleshooting.

II. Redundant Design Features Adapted to TMR Architecture

As a key power supply component of the Triconex system, the design of the 3701 module revolves around the Triple Modular Redundancy (TMR) logic to ensure the "non-interruption" and "fault tolerance" of power output:

Triple independent power channels: The module contains three completely isolated power conversion and output channels (A, B, C) inside. Each channel has independent rectification, filtering, and voltage stabilization circuits to avoid overall power supply interruption caused by a single channel failure.
Parallel redundant output: The three channels simultaneously output the same voltage to the redundant power interface of the I/O module, forming a "parallel power supply" mode. Even if one channel fails, the remaining two channels can still maintain normal power supply, ensuring that the I/O module is not affected.
Load balancing and fault tolerance: The three channels achieve average distribution of load current through the design of balanced output impedance to avoid overload of a single channel; if a channel has overcurrent, short circuit, or voltage abnormality, the system can automatically isolate the faulty channel, and the remaining channels will bear the full load to ensure stable output voltage.

III. Key Technical Parameters (for reference)

Parameter Category	Typical Specifications (depending on the model)
Input power type	AC input (such as 110V AC/220V AC) or DC input (such as 24V DC)
Output voltage	5V DC or 24V DC (providing standard working voltage for I/O modules)
Single-channel output current	Usually several to more than ten amps (such as 5A per channel, total output currents with the number of channels)
Isolation performance	Electrical isolation between input and output, and between channels, with isolation voltage ≥2500V AC
Protection functions	Overvoltage protection, overcurrent protection, short-circuit protection, overheating protection to avoid module damage or impact on loads
Status indication	Output voltage normal indicator (such as green), fault indicator (such as red), intuitively reflecting the operating status
Redundancy compatibility	Supports forming a redundant power supply system with other 3701 modules or accessing external redundant power supplies to improve system-level reliability

IV. Application Scenarios and Core Values

The 3701 module is mainly used in the I/O rack of the Triconex safety control system to provide power support for various I/O modules (such as 3674 digital output module, 3503E digital input module, etc.). Its core values are reflected in:

Ensuring reliable operation of I/O modules: Through stable voltage output and anti-interference design, ensuring that the signal acquisition, processing, and output functions of I/O modules are not affected by power fluctuations;
Improving system fault tolerance: The triple redundant channel design enables the power output to have "fault self-isolation" capability. Even if the module has partial faults, it can still maintain power supply to the I/O layer, avoiding system shutdown due to power supply problems;
Adapting to high safety demand scenarios: In scenarios such as emergency shutdown systems (ESD) in petrochemical industry and unit protection systems in electric power industry, the redundant design and reliability of the 3701 module can meet the safety level requirements of SIL 3 and above, providing basic guarantee for the safe operation of the system.

Summary

TRICONEX 3701 power supply module provides highly reliable power support for the I/O layer of the Triconex system through triple redundant design, stable voltage output, and perfect protection mechanisms. It is a key component to ensure the normal operation of I/O modules and maintain the continuity of the system control link, especially suitable for industrial safety and control scenarios with extremely high requirements for "zero interruption" of power supply.

Product Tags: 3701 Power Module
