TRICONEX 4509 Hiway Interface Module

TRICONEX 4509 Hiway Interface Module thumbnail-3

TRICONEX 4509 Hiway Interface Module thumbnail-4

TRICONEX 4509 Hiway Interface Module photo-1

TRICONEX 4509 Hiway Interface Module photo-2

TRICONEX 4509 Hiway Interface Module photo-3

TRICONEX 4509 Hiway Interface Module photo-4

Negotiable MOQ: 1 Pint (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

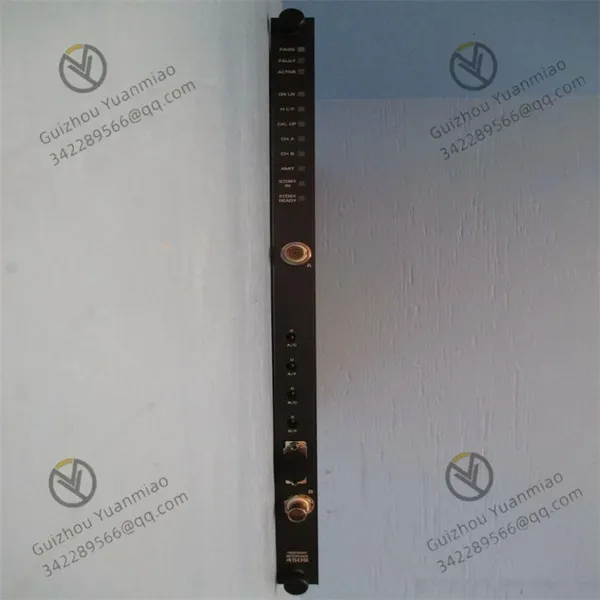

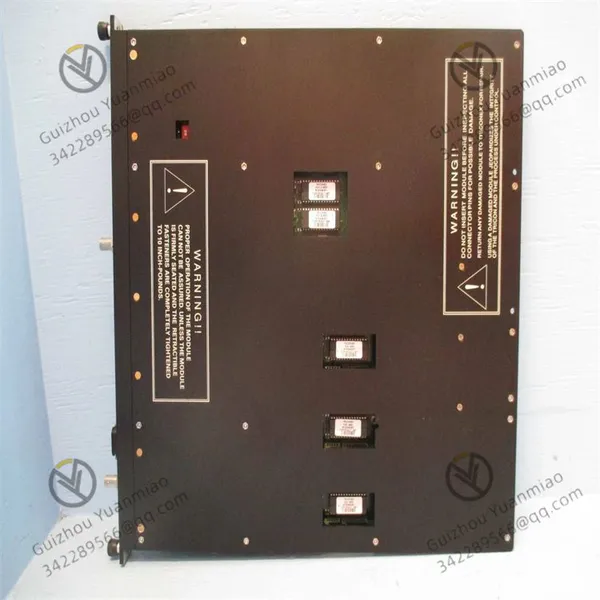

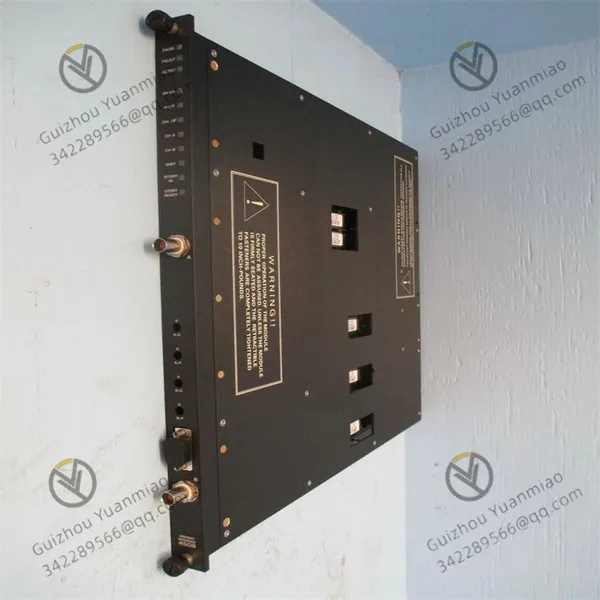

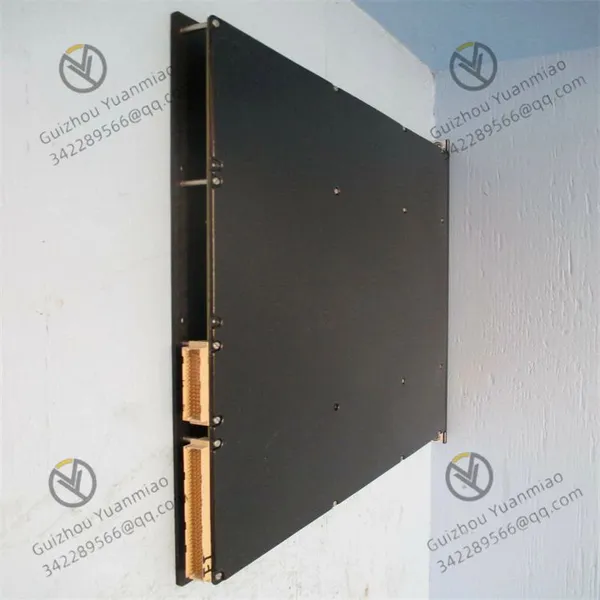

TRICONEX 4509 Hiway interface module

The specific working principles are as follows:

Establishing communication connections: The module establishes a communication link between the Tricon controller and the Honeywell TDC-3000 control system through the Hiway gateway and Local Control Network (LCN). It can also connect to Honeywell's older TDC 2000 control system via the Data Hiway. It supports redundant BNC connections directly to the Data Hiway, providing a physical foundation for data transmission.

Data conversion and transmission: This module has a functional capacity equivalent to four extended Data Hiway Port (DHP) addresses and provides eight Hiway addresses. It converts the data format of the Tricon controller into a format recognizable by the Honeywell control system, and vice versa. After being processed within the module, the data is transmitted to the target system through the corresponding communication lines, and all data can usually be refreshed in less than 0.5 seconds.

Communication protocol processing: Tricon controller communication includes protocols such as the Tricon System Access Application (TSAA) protocol. The Hiway interface module encapsulates and decapsulates data in accordance with relevant protocol rules to ensure accurate transmission and interaction of data between different systems, enabling upper-level devices such as computers and operator workstations on the LCN or Data Hiway to communicate with the Tricon controller.

Status monitoring and fault tolerance: The module has a hot standby function, allowing online replacement of faulty modules. At the same time, it is equipped with various status indicators, such as module status (pass, fault, active), Hiway interface status (online, interface status, call received), etc., to monitor its own working status in real-time. If a fault occurs, it can be detected and handled in a timely manner to ensure the continuity and stability of system communication.

Functional features:

Rich communication interfaces: It can connect the Tricon controller to the Honeywell TDC-3000 control system through the Hiway gateway and Local Control Network (LCN), and also connect to Honeywell's TDC 2000 control system via the Data Hiway. It supports redundant BNC connections directly to the Data Hiway.

Efficient data processing: It has a functional capacity equivalent to four extended Data Hiway Port (DHP) addresses, provides eight Hiway addresses, and can usually refresh all data in less than 0.5 seconds, enabling fast data transmission and update.

Comprehensive status monitoring: It is equipped with various status indicators, such as module status (pass, fault, active), Hiway interface status (online, interface status, call received), channel activity status (channel A, B active), transmission status (sending), standby module status (inserted, ready), etc. These indicators can monitor the working status of the module in real-time, facilitating operation and maintenance personnel to timely understand the operation status and troubleshoot faults.

Excellent electrical characteristics: It has 2 isolated (AC-coupled) Data Hiway channels, each with 2 polling response switches, a baud rate of 250 kbps, a module load power of less than 10 watts, and an isolation voltage of 500 VDC. These features can ensure the stability and anti-interference ability of data transmission to a certain extent.

Support for hot swapping: It has a hot standby function, allowing online replacement of faulty modules without stopping the machine, reducing system downtime, and improving system availability and maintenance convenience.

Main application scenarios:

Chemical production process control: The production process of chemical plants is complex, involving the monitoring and control of many parameters. The TRICONEX 4509 module can connect the Tricon controller to the Honeywell TDC-3000 control system, enabling operators to monitor parameters such as temperature, pressure, and flow of chemical plants through Honeywell's operation stations. At the same time, it transmits the safety control information of the Tricon controller to the Honeywell system to achieve safe and stable control of the production process, such as in the control scenarios of ethylene cracking units and oil refining units.

Power system monitoring: In power plants, real-time monitoring and protection of generating units, substations, and other equipment are required. The 4509 module can connect the Tricon controller to relevant Honeywell control systems, enabling the monitoring of various electrical parameters in the power system, as well as the control of generator excitation and speed regulation systems. It can also promptly feed back fault information to the operator workstation, facilitating operation and maintenance personnel to quickly handle faults and ensuring the reliable operation of the power system.

Oil and gas extraction and processing: In the oil and gas industry, precise control and safety protection are required from wellhead extraction to gathering, transportation, and processing. This module can integrate the Tricon controller into Honeywell's control system, realizing functions such as wellhead pressure control, monitoring of the operating status of oil and gas separation equipment, and regulation of pipeline transportation flow, ensuring the safe and efficient production process of oil and gas and preventing accidents such as leaks.

Nuclear power auxiliary system control: In nuclear power plants, in addition to the core reactor control system, many auxiliary systems require reliable control. The TRICONEX 4509 module can be used to connect the Tricon controller to the Honeywell control system, monitoring auxiliary systems such as the cooling water system and ventilation system of nuclear power plants, ensuring that these systems operate stably under normal working conditions and can respond promptly and take safety measures in abnormal situations, meeting the strict safety requirements of nuclear power.

Marine automation systems: Modern ships have a large number of equipment that requires automated control, such as engine room monitoring systems and ship power plant control systems. The TRICONEX 4509 module can connect the Tricon controller to the Honeywell automation system on the ship, realizing the status monitoring and control of ship main engines, auxiliary engines, boilers, and other equipment, helping crew members to grasp the operating status of ship equipment in real-time through the Honeywell operation interface, and improving the safety and reliability of ship navigation.

Product Tags: 4509 HIM
