Home > Electrical & Electronics > Electrical Control System > TRICONEX 4210 Remote Expansion Module

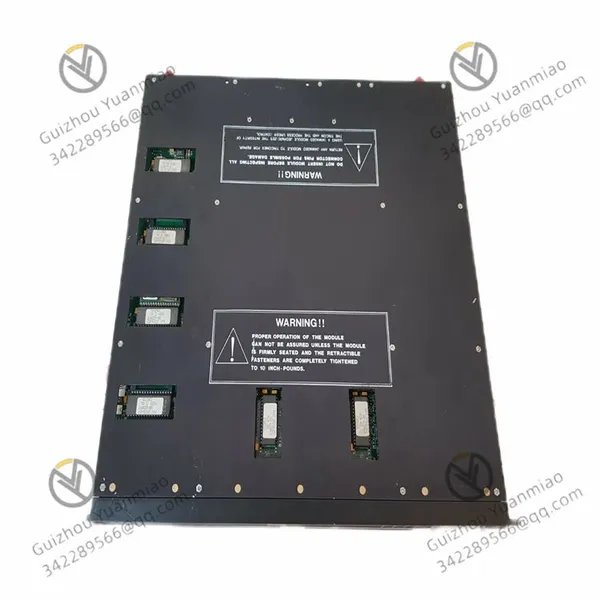

TRICONEX 4210 Remote Expansion Module

TRICONEX 4210 Remote Expansion Module thumbnail-3

TRICONEX 4210 Remote Expansion Module photo-1

TRICONEX 4210 Remote Expansion Module photo-2

TRICONEX 4210 Remote Expansion Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

TRICONEX 4210 Remote Expansion Module

Working Principle:

Expanding I/O Points: By adding additional digital and analog I/O points, the system's I/O capacity is expanded to meet the signal access requirements of more on-site equipment in industrial process control. I/O modules can be placed far from the control room, facilitating nearby access for on-site equipment.
Remote Communication Connection: Optical fiber is usually used as the transmission medium, leveraging its characteristics of high bandwidth and strong anti-interference capability to communicate with the main controller of the Triconex system via fieldbuses (such as Profibus). A set of three modules (RXM) functions as a unit, supporting communication with remote sites up to 7.5 miles (12 kilometers) away to achieve remote I/O expansion.
Redundant Design Ensuring Reliability: A redundant design with redundant optical fiber links is adopted. For example, there are multiple receiving channels (RX1, RX2, RX3, etc.). If one channel fails, other channels can continue working to ensure communication continuity. Meanwhile, the module features a self-diagnostic function to monitor its working status in real-time, detect faults promptly, and issue alarms, facilitating maintenance personnel in troubleshooting and further improving system reliability.
Data Transmission and Processing: The remote expansion module receives input signals from on-site equipment, transmits data to the main controller via a triple modular redundant I/O bus. The main controller performs arithmetic processing based on preset control logic, then sends output control signals back to the remote expansion module through the I/O bus. The remote expansion module then outputs these signals to corresponding on-site executive equipment, realizing control over industrial processes.
Isolation Protection: As repeaters and expanders for the Tricon I/O bus, RXM sets provide ground loop isolation, effectively preventing electrical interference from on-site equipment due to grounding issues from affecting the normal operation of the system, reducing the impact of electrical faults on the system, and enhancing system stability and safety.

Functional Features:

Expanding I/O Points: Can add additional digital and analog I/O points to expand the system's I/O capacity, meeting the access requirements of more on-site equipment.
Remote Connection: Can connect to the Triconex system via fieldbuses (such as Profibus) to achieve remote I/O expansion. I/O modules can be placed far from the control room, facilitating access for on-site equipment.
High Reliability: Adopts redundant design and self-diagnostic function, complies with international safety standards such as IEC 61508, and is suitable for applications with high safety levels.
Modular Design: Easy to install and maintain, facilitating module replacement and upgrading according to actual needs.

Technical Parameters:

Supply Voltage: 24V DC
Operating Temperature Range: -40°C to 70°C
Number of Input Channels: Typically 16 or 32 differential input channels
Input Range: 4-20mA
Input Update Rate: 10ms
Protection Rating: IP68
Installation Method: Standard industrial 35mm DIN rail mounting

Application Fields:

Oil and Gas Industry: Used to monitor and control hazardous processes in oil and gas production, processing, and transportation, such as monitoring parameters like temperature and pressure, and controlling safety valves.
Chemical Industry: Ensures the safety of chemical production processes. In fields such as petrochemicals and natural gas chemicals, it is used to activate emergency shutdown systems to prevent accidents.
Power Industry: Suitable for nuclear power plants and other power generation facilities, enabling safe control of hazardous processes in power production, transmission, and distribution.
Other Industries: Also applicable to water treatment, metal processing, papermaking, food and beverage, discrete manufacturing, as well as fire and explosion protection scenarios in steel mills, mining operations, etc.
