TRICONEX 3601E Digital Output Module

TRICONEX 3601E Digital Output Module thumbnail-3

TRICONEX 3601E Digital Output Module photo-1

TRICONEX 3601E Digital Output Module photo-2

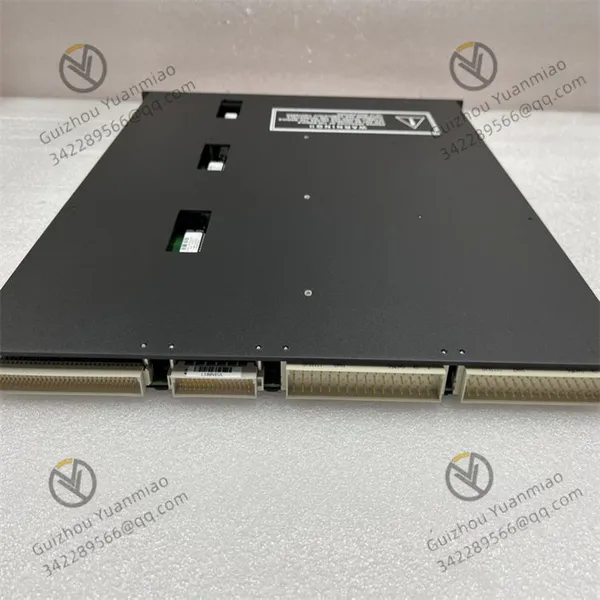

TRICONEX 3601E Digital Output Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

TRICONEX 3601E Digital Output Module

TRICONEX 3601E is a key component in the Triconex Safety Instrumented System (SIS), classified as a digital output module. It is mainly used to send safety control commands to on-site executive equipment (such as solenoid valves, relays, indicator lights, etc.). The following is a detailed introduction:

Core Functions and Features

Triple Redundancy Design

Based on the TMR (Triple Modular Redundancy) architecture, each output channel includes three independent processing paths, ensuring output reliability through a 2oo3 (two-out-of-three) voting mechanism.
A single-channel failure does not affect system operation, and hot-swap replacement is supported, achieving true fault tolerance.

Output Specifications and Types

Dry contacts (relay output): Supports normally open (NO) or normally closed (NC) configurations, with a rated current of usually 2A per point.
Solid-state output: Suitable for scenarios requiring fast switching or low power consumption, such as DC24V/0.5A.

Number of Channels: Typically provides 16 or 32 digital output channels, supporting high-density configuration.
Output Types:
Voltage Range: Compatible with various industrial voltages, such as 24VDC, 110VAC/DC, etc.

Safety Certifications and Compliance

SIL3 Certification: Complies with IEC 61508 and ISA S84.01 standards, applicable to applications with the highest safety integrity level.
Explosion-Proof Certification: Optional versions with ATEX, IECEx, and other certifications are available, suitable for hazardous areas.

Diagnostics and Status Monitoring

Online Self-Diagnosis: Real-time monitoring of output circuits, power supply, and communication status. In case of faults, it triggers an alarm and automatically switches to a safe state.
Output Loop Monitoring: Detects abnormal conditions such as short circuits, open circuits, and ground faults, and provides precise fault location.
LED Indicators: Intuitively display the output status of each channel and the health status of the module.

Fail-Safe Mechanism

When a fault is detected (such as module failure or inconsistent voting), all output channels switch to a safe state by default (e.g., relay de-energization, valve closure).
Supports configuration of "Fail-Safe" or "Fail-Last" output modes.

Working Principle

Receiving Control Commands

Receives digital output commands after safety logic operations from Triconex controllers (such as Tricon, Trident series).
Data transmission is realized through a high-speed synchronous bus, ensuring that the command response time is less than 10ms (typical value).

Voting and Output under TMR Architecture

Each output command is sent to three independent processing channels (A, B, C) simultaneously, and each channel executes independently:
Command decoding → Logic processing → Output driving.
The output signals of the three channels are compared through a hardware voting circuit to ensure consistency. If there is a discrepancy, the system automatically triggers a fault handling process.

Driving On-Site Equipment

Converts digital signals into physical actions through relays or solid-state switches to drive on-site actuators (such as valves, motors, sound and light alarms).
The output loop is equipped with overload protection and surge suppression functions to extend equipment life.

Typical Application Scenarios

Emergency Shutdown System (ESD)

Quickly shut down valves, pumps, and other equipment under dangerous working conditions to prevent the expansion of accidents.

Fire and Gas Monitoring System (F&G)

Trigger fire sprinklers, sound and light alarms, or ventilation systems to respond to fires or gas leaks.

Process Interlock Control

In industries such as chemical engineering and oil refining, automatically adjust valve openings or equipment start-stop according to changes in process parameters.

Nuclear Power Auxiliary Systems

Control the safe operation of non-nuclear safety-level equipment (such as cooling water pumps, ventilation fans).

Oil and Gas Extraction and Transportation

Realize remote control and safety protection of wellhead safety valves (SSV) and pipeline shut-off valves (ESDV).

Technical Parameters

Parameter	Specification Description
Number of output channels	16 or 32 channels (depending on the model)
Output type	Relay output / Solid-state output
Rated current	Relay: 2A per point; Solid-state: 0.5A per point
Response time	≤10ms (depending on configuration and load)
Power consumption	≤20W (typical value)
Operating temperature	-40°C to +70°C (standard type)
Storage temperature	-55°C to +85°C
Protection rating	IP20 (module), higher rating requires matching cabinet

Advantages and Value

High Availability: The triple redundancy design and hot-swap feature ensure no single point of failure in the system, reducing unplanned downtime.
Safety and Reliability: Certified by SIL3, the strict fail-safe mechanism reduces risks and ensures the safety of personnel and assets.
Simplified Maintenance: Modular design and real-time diagnostic functions shorten fault troubleshooting time and reduce operation and maintenance costs.
Flexible Adaptation: Supports multiple output types and voltage ranges, compatible with on-site equipment of different brands.

TRICONEX 3601E digital output module, with its excellent reliability and safety, has become a core component in the field of industrial safety control, especially suitable for critical scenarios with extremely low fault tolerance.

Product Tags: 3601E
