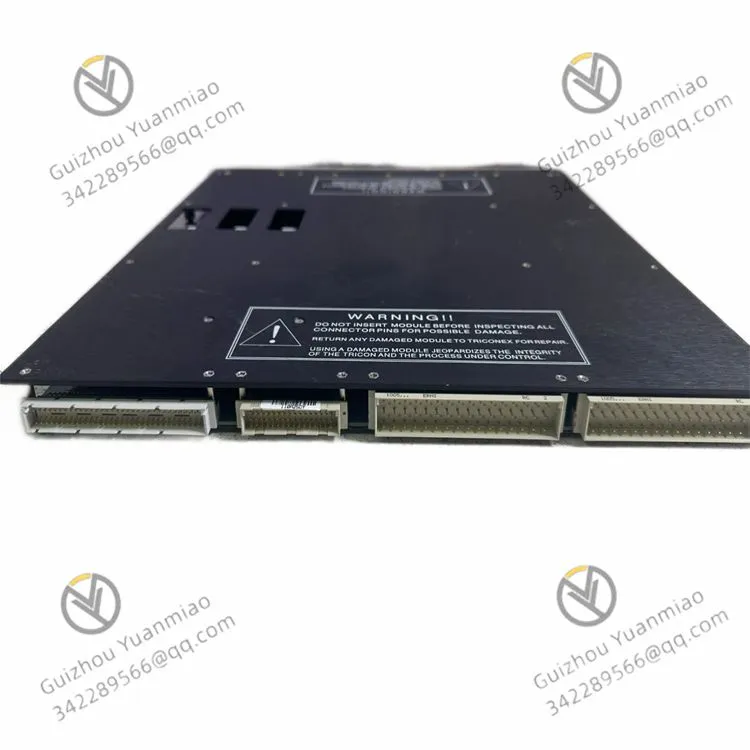

TRICONEX 3501E Digital Input Module photo-1

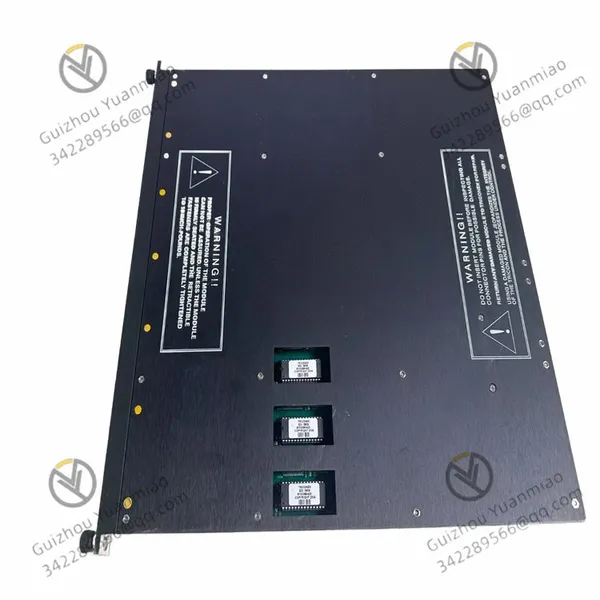

TRICONEX 3501E Digital Input Module photo-2

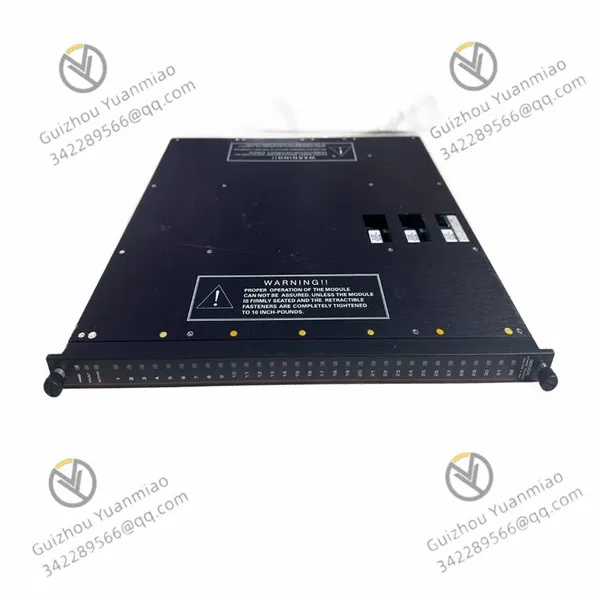

TRICONEX 3501E Digital Input Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

TRICONEX 3501E Digital Input Module

The TRICONEX 3501E digital input module is a key component in the Triconex Safety Instrumented System (SIS), designed specifically for industrial control scenarios requiring high reliability and high security. The following is a detailed introduction:

Core Functions and FeaturesTriple Redundancy Design

Based on Triconex's Triple Modular Redundancy (TMR) architecture, each channel processes input signals independently, ensuring data reliability through a 2oo3 (two-out-of-three) voting mechanism.
A single module failure does not affect system operation, and hot-swap replacement is supported, achieving true fault tolerance.

Input Types and Specifications

Number of Channels: Typically provides 32 digital input channels, supporting high-density configuration.
Input Signal Types:

Supports dry contacts (normally open/normally closed) and wet contacts (contacts with power supply).
Compatible with TTL/CMOS level signals (external matching circuits required).

Voltage Range:

Standard type: 24VDC (typical value, allowing ±20% fluctuation).
Wide-range type: 90-155VAC/DC (adaptable to different industrial environments).

Safety Certifications and Compliance

SIL3 Certification: Complies with IEC 61508 and ISA S84.01 standards, suitable for applications with the highest safety integrity level.
Explosion-Proof Certification: Optional versions with ATEX, IECEx, etc., certifications, suitable for hazardous areas.

Diagnostics and Status Monitoring

Online Self-Diagnosis: Real-time monitoring of the module's internal circuits, power supply, and communication status, triggering an alarm in case of faults.
Input Signal Monitoring: Detects abnormal conditions such as contact jitter, disconnection, and short circuits, and provides fault location information.
LED Indicators: Intuitively display the input status of each channel and the health status of the module.

Communication and Integration

High-Speed Synchronization Bus: Real-time data exchange with the Triconex controller to ensure fast response of input signals.
Redundant Communication: Supports dual redundant communication paths to improve data transmission reliability.

Working PrincipleSignal Acquisition

Receives digital signals from field devices (such as limit switches, pressure switches, solenoid valve feedback, etc.).
Achieves electrical isolation between the field and the system through optical isolation or relay isolation technology, enhancing anti-interference capability.

Signal Processing and Voting

Each channel processes input signals independently, converting physical signals into digital logic (0/1).
The processing results of the three channels are compared through a hardware voting circuit to ensure consistency. In case of discrepancies, the system automatically triggers a fault handling process.

Data Transmission

The processed digital signals are transmitted to the Triconex controller through an internal bus for logical operations and safety decision-making.
Supports mechanisms such as Cyclic Redundancy Check (CRC) to ensure the accuracy of data transmission.

Typical Application ScenariosEmergency Shutdown System (ESD)

Monitors the operating status of key equipment (such as compressors, pumps) and triggers an emergency shutdown when abnormalities are detected.

Fire and Gas Monitoring System (F&G)

Connects to smoke detectors, combustible gas sensors, etc., to achieve rapid response to fires or leaks.

Process Interlock Control

In industries such as chemical engineering and oil refining, monitors valve positions, level switches, etc., to ensure process parameters are within a safe range.

Nuclear Power Auxiliary Systems

Used for status monitoring of non-nuclear safety-level systems, such as switch monitoring of cooling water systems and ventilation systems.

Oil and Gas Extraction and Transportation

Monitors the status of safety valves and shut-off valves in wellhead platforms and pipeline pump stations to ensure production safety.

Technical Parameters

Parameter	Specification Description
Number of input channels	32 channels (typical value)
Isolation method	Optical isolation or relay isolation
Response time	≤10ms (depending on configuration and field conditions)
Power consumption	≤15W (typical value)
Operating temperature	-40°C to +70°C (standard type)
Storage temperature	-55°C to +85°C
Protection rating	IP20 (module), higher rating required with cabinet
Weight	Approximately 1kg

Advantages and Value

High Availability: Triple redundancy design and hot-swap features ensure no single point of failure in the system, reducing downtime.
Safety and Reliability: Passes SIL3 certification, meets the most stringent safety requirements, and reduces accident risks.
Simplified Maintenance: Modular design and intuitive diagnostic functions reduce maintenance complexity and costs.
Flexible Adaptation: Supports multiple input types and voltage ranges, adapting to different industrial environments.

The TRICONEX 3501E digital input module, with its excellent reliability and safety, has become the preferred solution in the field of industrial safety control, especially suitable for critical scenarios with extremely low fault tolerance.

Product Tags: 3501E
