Home > Electrical & Electronics > Electrical Control System > 32 Channel Thermocouple Amplifier Module SCXI-1102B

32 Channel Thermocouple Amplifier Module SCXI-1102B

32 Channel Thermocouple Amplifier Module SCXI-1102B thumbnail-3

32 Channel Thermocouple Amplifier Module SCXI-1102B photo-1

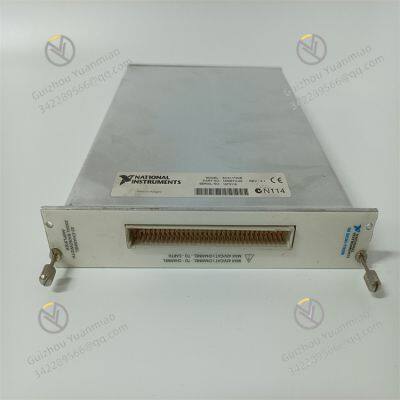

32 Channel Thermocouple Amplifier Module SCXI-1102B photo-2

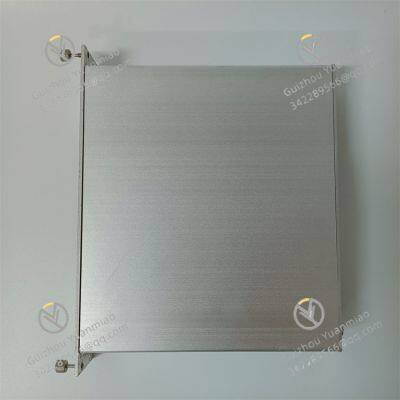

32 Channel Thermocouple Amplifier Module SCXI-1102B photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

The SCXI-1102B is a 32-channel thermocouple amplifier module from National Instruments (NI). Below is relevant content from its user manual:

Product Features

High Channel Count: Equipped with 32 independent thermocouple channels, meeting large-scale measurement requirements.
High Precision: Utilizes high-precision amplifiers to ensure the accuracy of measured data.
Cold Junction Compensation: Automatically compensates for cold junction temperature, further improving measurement precision.
Support for Multiple Thermocouple Types: Compatible with various thermocouple types such as J, K, T, E, and C.
Ease of Use: Provides standard interfaces and configuration tools, making installation, maintenance, and configuration straightforward.

Technical Parameters

Input Range: -200mV to +200mV
Output Range: 0V to 10V
Resolution: 16-bit
Power Supply: 5VDC
Operating Temperature: 0°C to +70°C
Enclosure Protection Class: IP65

Signal Connection

Input signals can be categorized into ground-referenced signals and floating signals. Before connecting thermocouples or other signals, confirm their type:

For floating signals, connect the negative channel input to the chassis ground or use the clamping resistor on the SCXI-1303 terminal block.
Do not re-ground already ground-referenced signals, as this may create ground loops and affect measurement accuracy.
The input protection circuit of each channel can withstand voltages up to ±42VAC peak or VDC; exceeding this range may damage the module, SCXI bus, and DAQ devices.
