1C31238H01 EMERSON High-density Analog Input Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
1C31238H01 EMERSON High-density Analog Input Module thumbnail-1
1C31238H01 EMERSON High-density Analog Input Module thumbnail-2
1C31238H01 EMERSON High-density Analog Input Module thumbnail-3
1C31238H01 EMERSON High-density Analog Input Module photo-1
1C31238H01 EMERSON High-density Analog Input Module photo-2

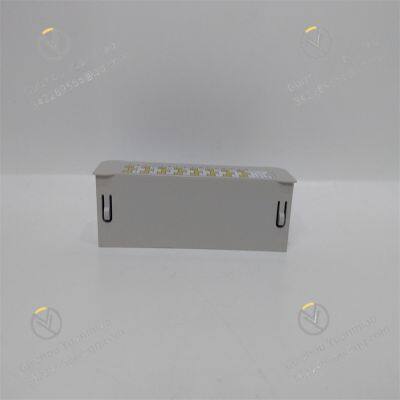

1C31238H01 EMERSON High-density Analog Input Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





1C31238H01 EMERSON User Manual

 1C31238H01 is a high-density analog input module in Emerson's Ovation distributed control system (DCS), designed for precise acquisition and processing of industrial analog signals. The following is a detailed overview:
Technical Specifications

  • Input Type: Analog signals (current/voltage, thermocouple, RTD)

  • Channel Configuration: 32 isolated channels (configurable in groups)

  • Input Range:

    • Current: 4–20mA, 0–20mA

    • Voltage: 0–5V, 0–10V, ±5V, ±10V

    • Thermocouple: J, K, T, E, R, S, B, N types

    • RTD: 2-wire, 3-wire, 4-wire (PT100, PT1000)

  • Accuracy: ±0.05% of full scale (typical)

  • Resolution: 16 bits

  • Update Rate: ≤250ms (per channel)

  • Isolation: Channel-to-channel and channel-to-chassis (500Vrms)

  • Power Supply: 24V DC (from backplane)

  • Power Consumption: ~15W

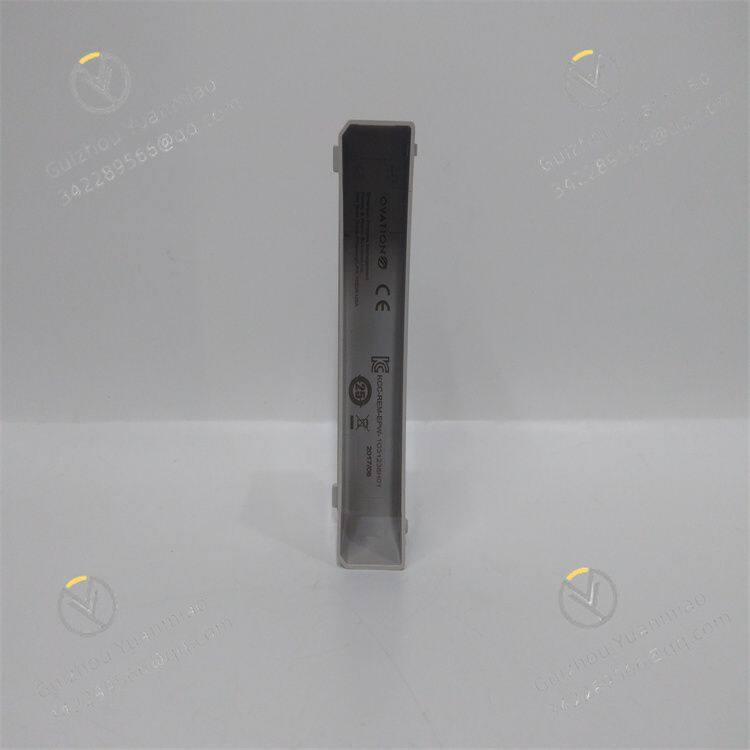

1C31238H01 (2)


Product Features

  1. Multi-Type Signal Support

    • Integrates universal input capabilities for current, voltage, thermocouples, and RTDs, eliminating the need for external signal conditioners.

  2. High-Precision Measurement

    • 16-bit resolution and ±0.05% accuracy enable fine-grained data acquisition for critical process parameters.

  3. Flexible Channel Grouping

    • 32 channels can be divided into 8 groups (4 channels/group) for independent configuration of signal types and filtering.

  4. Redundant Design

    • Supports redundant power supplies and communication paths for enhanced system reliability.

  5. Hot-Swap Capability

    • Allows module replacement without system shutdown, minimizing maintenance downtime.

  6. Advanced Diagnostics

    • Built-in self-test for open/short circuits, signal drift, and thermocouple cold junction compensation errors.

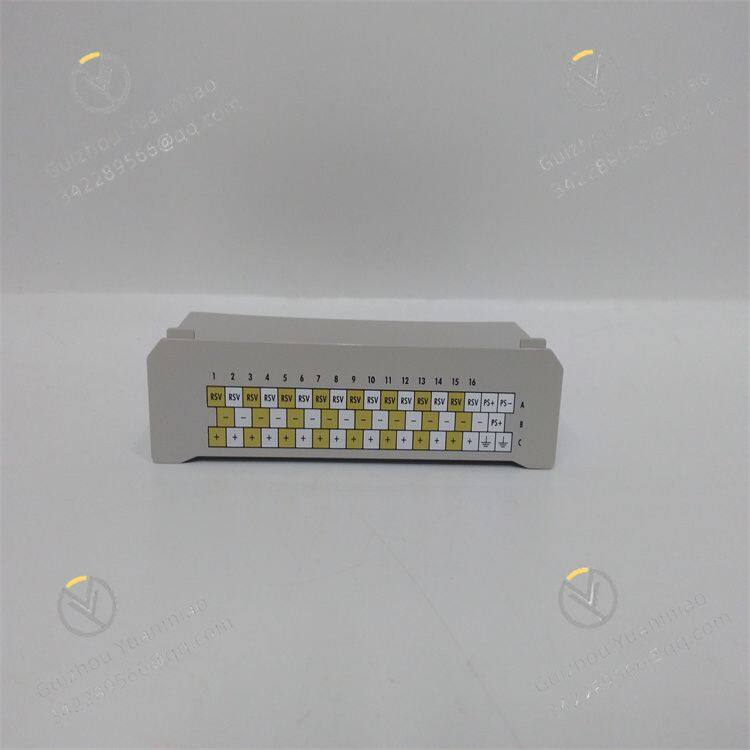

1C31238H01 (3)






Related products:


EMERSONKJ2003X1-BA2
EMERSON1C31224G01
EMERSON1C31227G01
EMERSON1X00416H01
EMERSON1C31129G03
EMERSONSE3008
EMERSON5X00605G01


Product Tags: 1C31238H01 , EMERSON , high-density analog input module
