5X00300G02 EMERSON Communication Interface Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
5X00300G02 EMERSON Communication Interface Module thumbnail-1
5X00300G02 EMERSON Communication Interface Module thumbnail-2
5X00300G02 EMERSON Communication Interface Module thumbnail-3
5X00300G02 EMERSON Communication Interface Module thumbnail-4
5X00300G02 EMERSON Communication Interface Module photo-1
5X00300G02 EMERSON Communication Interface Module photo-2
5X00300G02 EMERSON Communication Interface Module photo-3

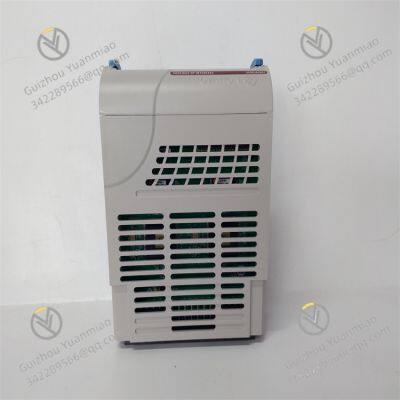

5X00300G02 EMERSON Communication Interface Module photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





5X00300G02 User Manual

 5X00300G02 is a communication interface module in Emerson's Ovation distributed control system (DCS), designed to enable seamless data exchange between the DCS and external devices or systems. The following is a detailed overview:
Technical Specifications

  • Communication Protocols:

    • Modbus RTU/ASCII, Modbus TCP, Profibus DP, Ethernet/IP, OPC UA

  • Interface Types:

    • 2x RS-485/RS-232 (isolated), 2x Ethernet (10/100 Mbps), 1x Profibus DP port

  • Data Transfer Rate:

    • RS-485: Up to 115.2 kbps

    • Ethernet: 10/100 Mbps auto-negotiation

  • Address Range:

    • Modbus: 1–247 slave addresses

    • Profibus: 0–126 device addresses

  • Power Supply: 24V DC (from backplane)

  • Power Consumption: ~15W

  • Operating Temperature: -40°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Humidity: 5%–95% non-condensing

  • Protection Class: IP20 (front panel)

  • Physical Dimensions: 177mm (W) × 127mm (H) × 76mm (D)

  • Weight: ~1.0kg

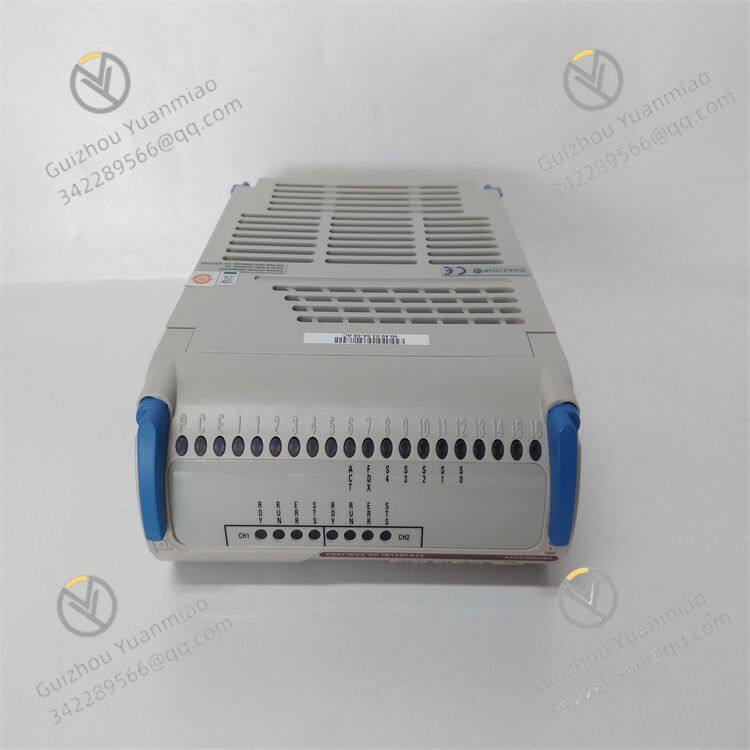

5X00300G02 (2)


Functional Overview
The module acts as a gateway between the Ovation DCS and external systems, enabling:


  • Data exchange with PLCs, SCADA systems, and intelligent field devices.

  • Integration of legacy equipment with modern control systems.

  • Remote monitoring and control via networked interfaces.

  • Protocol conversion between different industrial communication standards.

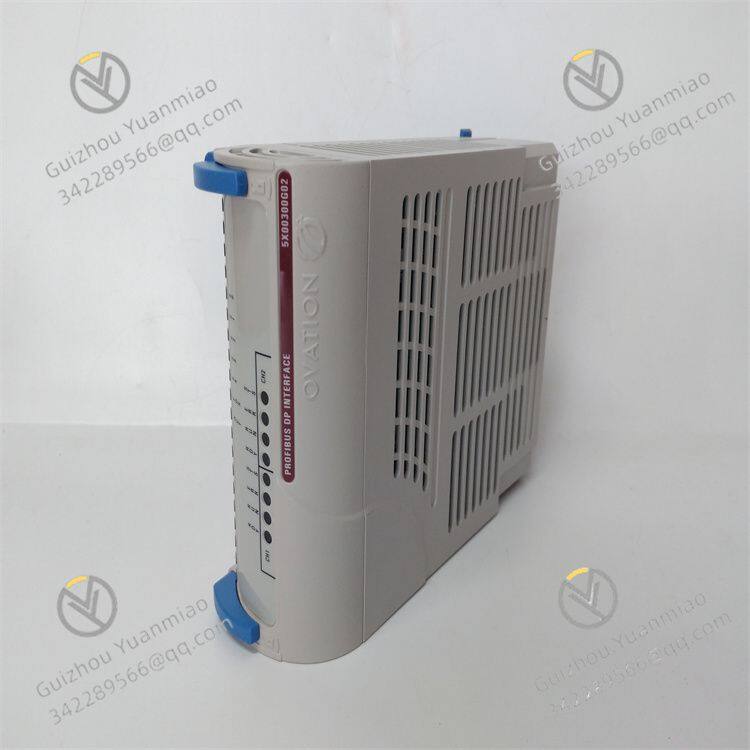

5X00300G02 (3)
