5X00241G02 EMERSON Digital Output Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
5X00241G02 EMERSON Digital Output Module thumbnail-1
5X00241G02 EMERSON Digital Output Module thumbnail-2
5X00241G02 EMERSON Digital Output Module thumbnail-3
5X00241G02 EMERSON Digital Output Module photo-1
5X00241G02 EMERSON Digital Output Module photo-2

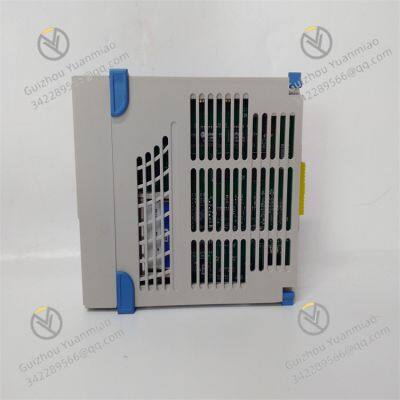

5X00241G02 EMERSON Digital Output Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





5X00241G02

 5X00241G02 is a digital output module in Emerson's Ovation distributed control system (DCS), designed to convert digital control signals into physical outputs for driving industrial devices. The following is a detailed overview:
Technical Specifications

  • Output Type: Transistor (sink/source) digital output

  • Channel Quantity: 16 independent channels

  • Output Voltage Range:

    • 24V DC (19.2–28.8V DC nominal)

  • Output Current:

    • 500mA per channel (sink), 300mA per channel (source)

  • Logic Levels:

    • High: ≥20V DC

    • Low: ≤0.8V DC

  • Response Time: ≤1ms (on/off)

  • Isolation: Channel-to-channel and channel-to-chassis (500Vrms)

  • Power Supply: 24V DC (from backplane)

  • Power Consumption: ~8W

  • Operating Temperature: -40°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Humidity: 5%–95% non-condensing

  • Protection Class: IP20 (front panel)

  • Physical Dimensions: 133mm (W) × 127mm (H) × 76mm (D)

  • Weight: ~0.6kg

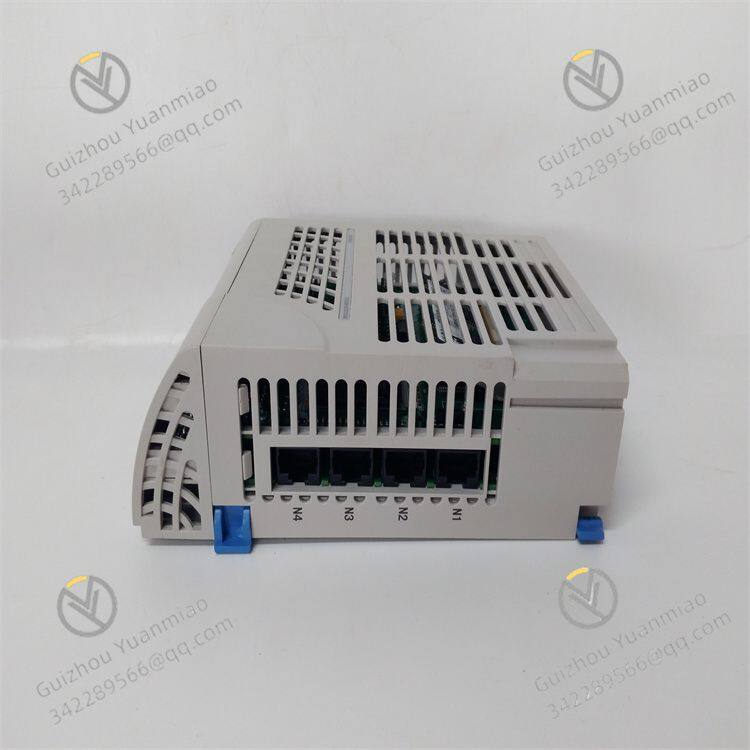

5X00241G02 (2)


Application Scenarios

  • Power Plants:

    • Controlling turbine bypass valves, generator excitation systems, and cooling fan relays.

  • Chemical Processing:

    • Actuating reactor feed valves, safety relief devices, and process indicator lights.

  • Water Treatment:

    • Operating pump starters, filter backwash controls, and chemical dosing pumps.

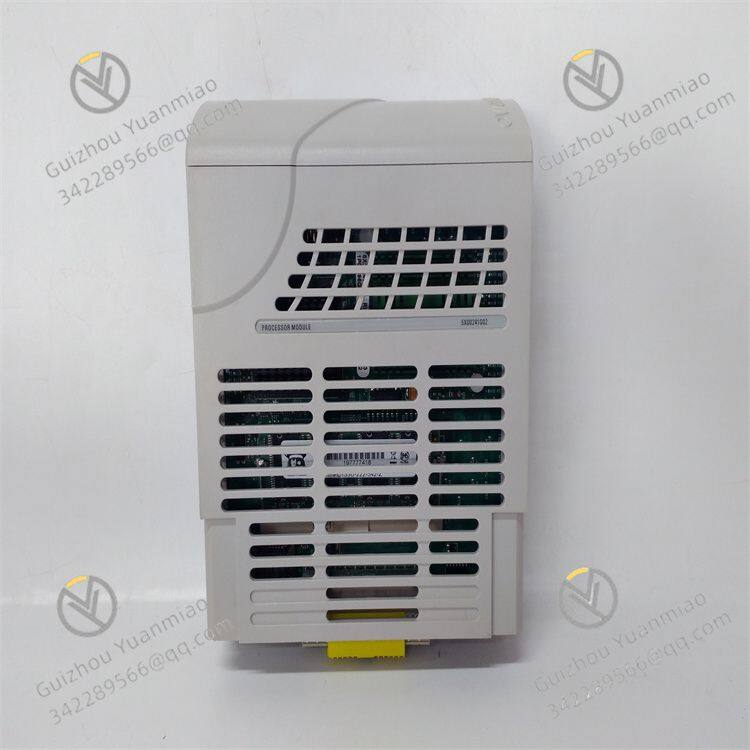

5X00241G02 (3)






Related products:


EMERSONKJ2003X1-BA2
EMERSON1C31224G01
EMERSON1C31227G01
EMERSON1X00416H01
EMERSON1C31129G03
EMERSONSE3008
EMERSON5X00605G01


Product Tags: 5X00241G02 , EMERSON , digital output module
