5X00489G01 EMERSON High-speed Digital Input Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
Business license
5X00489G01 EMERSON High-speed Digital Input Module thumbnail-1
5X00489G01 EMERSON High-speed Digital Input Module thumbnail-2
5X00489G01 EMERSON High-speed Digital Input Module thumbnail-3
5X00489G01 EMERSON High-speed Digital Input Module thumbnail-4
5X00489G01 EMERSON High-speed Digital Input Module thumbnail-5
5X00489G01 EMERSON High-speed Digital Input Module photo-1

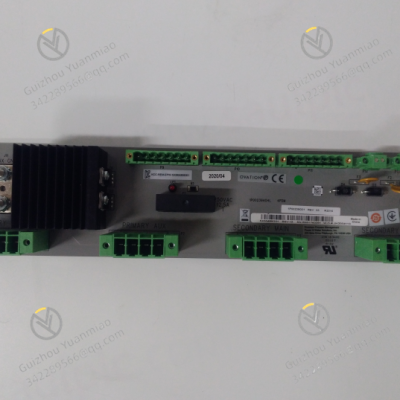

5X00489G01 EMERSON High-speed Digital Input Module photo-2
5X00489G01 EMERSON High-speed Digital Input Module photo-3

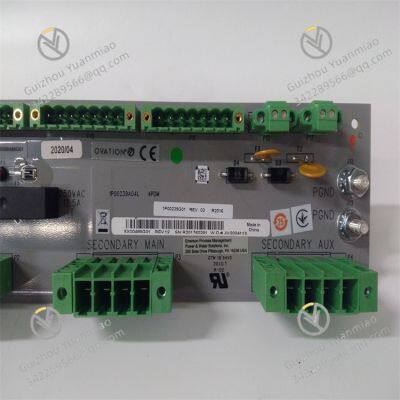

5X00489G01 EMERSON High-speed Digital Input Module photo-4

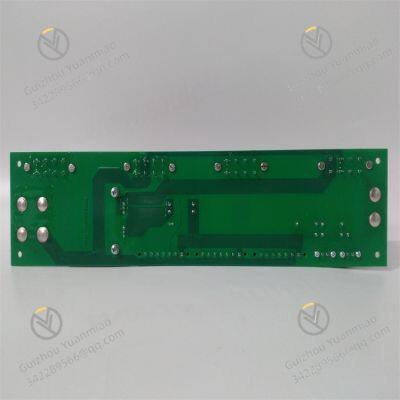

5X00489G01 EMERSON High-speed Digital Input Module photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





5X00489G01
 5X00489G01 is a high-speed digital input module designed for Emerson's Ovation distributed control system (DCS), specialized in capturing fast-changing discrete signals in industrial processes. Below is a detailed overview compiled from available information:
Technical Specifications

  • Input Channels: 32 isolated channels

  • Input Type: Dry contact (contact closure) or wet contact (voltage-driven, 24V DC typical)

  • Signal Voltage Range: 18–30V DC (wet contact)

  • Response Time: ≤1ms (On to Off/Off to On)

  • Isolation: Channel-to-channel and channel-to-chassis (1500Vrms)

  • Maximum Input Frequency: 500Hz (for pulsed signals)

  • Power Supply: 24V DC (from backplane)

  • Power Consumption: ~10W

  • Operating Temperature: -40°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Humidity: 5%–95% non-condensing

  • Protection Class: IP20 (front panel)

  • Physical Dimensions: 145mm (W) × 125mm (H) × 75mm (D)

  • Weight: ~0.6kg

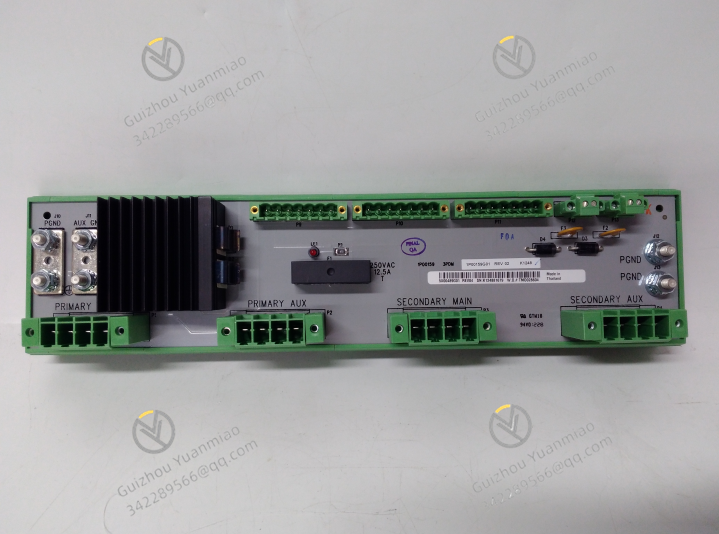

艾默生 5X00489G01


Product Features
  1. High-Speed Signal Capture
    With a response time of ≤1ms, it is ideal for capturing rapid state changes in high-speed industrial processes (e.g., conveyor belt position sensors, turbine speed switches).
  2. Dual Input Support
    Compatible with both dry contacts (mechanical switches) and wet contacts (transistor-driven signals), enhancing flexibility in system integration.
  3. Enhanced Isolation
    1500Vrms isolation between channels and from the chassis minimizes interference from high-voltage equipment, ensuring signal integrity in noisy environments.
  4. Dense Channel Configuration
    32 channels in a compact form factor reduce the number of modules required, saving rack space and lowering system costs.
  5. Event Sequence Recording
    Built-in timestamping (resolution: 1µs) for input state changes, supporting sequence-of-events (SOE) analysis in fault diagnosis.
  6. Hot-Swap Capability
    Allows module replacement without shutting down the DCS, reducing maintenance downtime in critical applications.

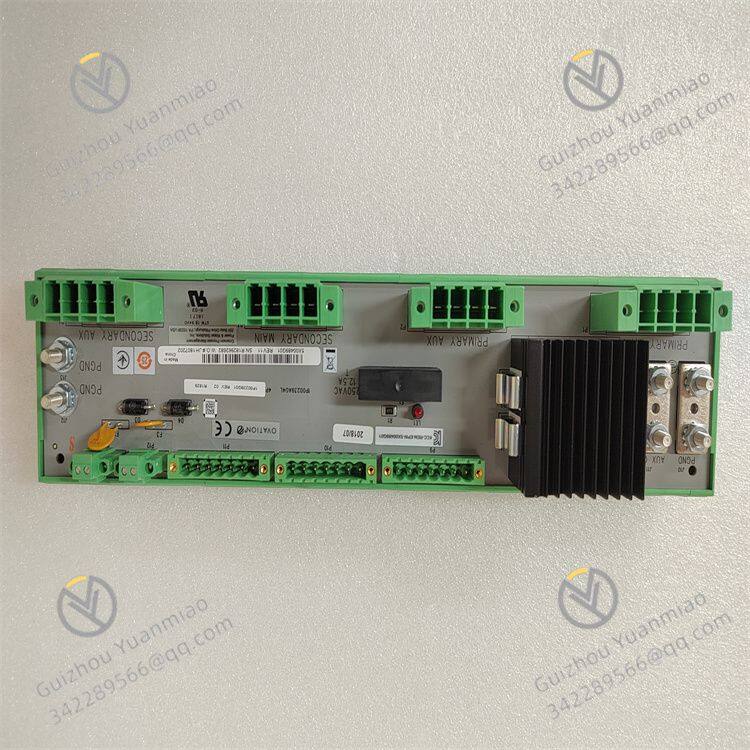

5X00489G01 (6)






Related products:


EMERSONKJ2003X1-BA2
EMERSON1C31224G01
EMERSON1C31227G01
EMERSON1X00416H01
EMERSON1C31129G03
EMERSONSE3008
EMERSON5X00605G01


Product Tags: 5X00489G01 , EMERSON , high-speed digital input module
