TRICONEX 3005 Communication Interface Module

TRICONEX 3005 Communication Interface Module thumbnail-2

TRICONEX 3005 Communication Interface Module thumbnail-3

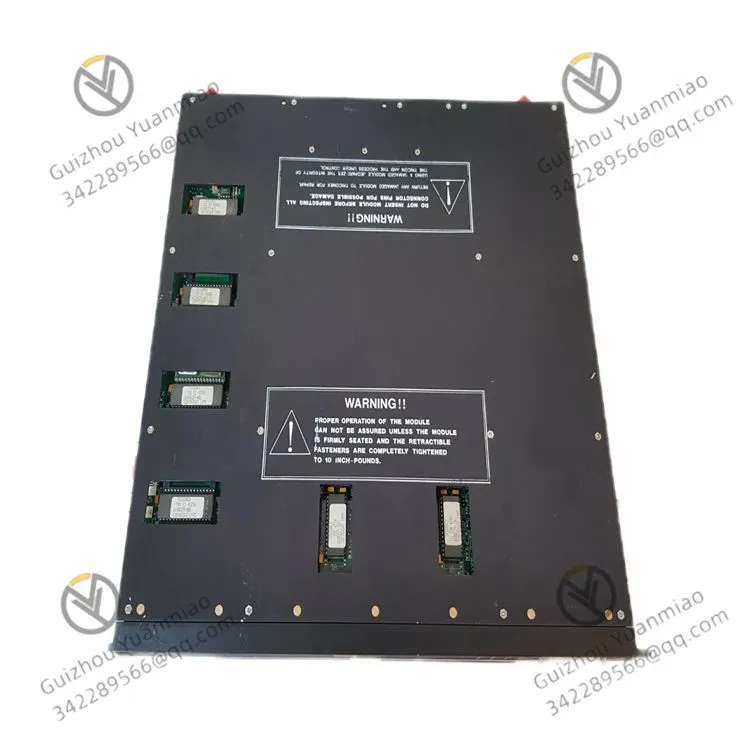

TRICONEX 3005 Communication Interface Module photo-1

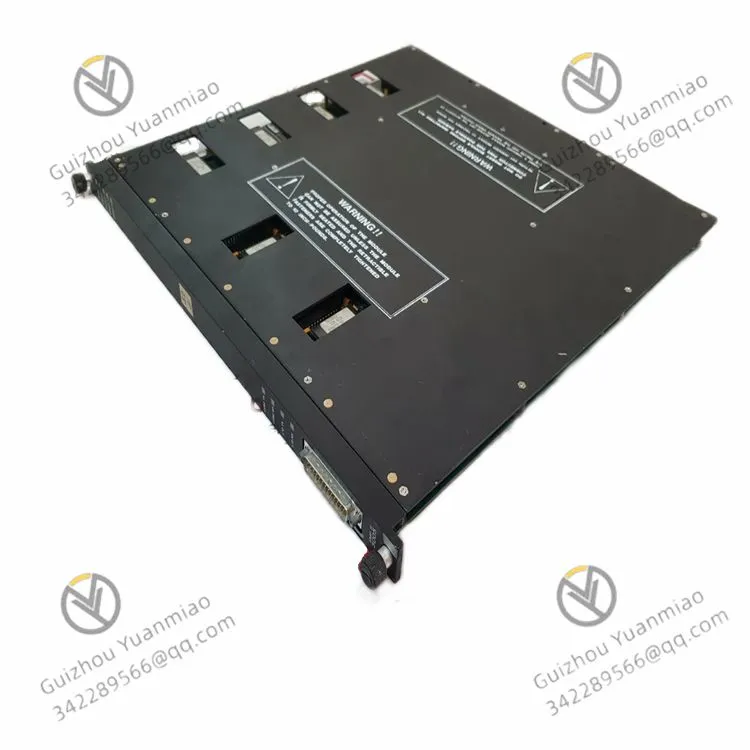

TRICONEX 3005 Communication Interface Module photo-2

TRICONEX 3005 Communication Interface Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

TRICONEX 3005 communication interface module

Detailed Description of Serial Communication Function1. Specifications of Serial Communication Interface

Physical Interface: Supports RS-232/RS-485 standards, allowing selection of different interface types as needed.
Communication Rate: Typical baud rate range is 9600bps to 115200bps, configurable.
Data Format: Supports 8 data bits, 1/2 stop bits, and configurable parity check (odd/even/none).
Electrical Characteristics:

RS-232: Supports ±15kV ESD protection, transmission distance ≤15 meters.
RS-485: Differential signal transmission, supports multi-point communication, transmission distance ≤1200 meters.

2. Support for Communication Protocols

TRICONEX 3005 supports multiple standard industrial protocols, with common configurations including:

Modbus RTU: Master/slave mode, supports standard function codes (e.g., 01, 02, 03, 04, 05, 06, 15, 16).
Custom Protocols: Proprietary protocols can be implemented via programming to meet communication requirements of special devices.
ASCII Protocol: Supports simple ASCII character protocols for basic data transmission.

3. Redundancy and Fault Tolerance Design

Hot Standby Redundancy: Supports dual-serial-port redundancy configuration, automatically switching to the standby port when the primary port fails to ensure communication continuity.
Error Detection: Built-in CRC check and timeout detection mechanisms ensure data transmission accuracy.
Fault Safety: When communication is interrupted, the module can be configured to maintain the last valid value or trigger a safety action (e.g., emergency shutdown).

4. Typical Application Scenarios

Connecting Legacy Devices: Communicates with old-model PLCs, instruments, RTUs, etc., via serial protocols.
Remote Monitoring: Achieves remote data transmission through modems or industrial wireless modules.
Data Acquisition: Collects real-time data from devices such as sensors and analyzers.
System Integration: Serves as an intermediate layer to connect serial devices to Ethernet-based control systems.

5. Configuration and Programming

Configuration Tools: Uses TRICONEX proprietary software (e.g., TriStation 1131) to configure serial parameters (baud rate, parity bit, etc.).
Programming Support:

Writes communication logic in languages such as ladder diagrams and function block diagrams within the Tricon system.
Supports interrupt-driven communication processing to ensure real-time response.

6. Technical Parameters

Parameter	Description
Channel Count	Typically 2 independent serial channels
Maximum Connected Devices	RS-232: 1-to-1; RS-485: Supports 32 slave devices
Isolation Protection	Optional optoelectronic isolation (typical value 2500VDC)
Operating Temperature	-40°C to +70°C (industrial grade)
Certifications	ATEX, IECEx, CSA, etc.

7. Advantages

High Reliability: TMR architecture ensures single-channel failures do not affect communication functions.
Flexible Configuration: Supports multiple protocols and parameter settings to adapt to different device requirements.
Safety Certification: Complies with SIL3 safety standards, suitable for safety-critical systems.

Notes

In practical applications, select the appropriate interface type (RS-232/RS-485) based on communication distance and the number of devices.
It is recommended to use RS-485 with optoelectronic isolation in strong electromagnetic interference environments.
The serial communication rate must match the counterpart device to avoid communication errors.

For more detailed technical specifications, it is recommended to refer to TRICONEX official documents or contact their technical support team.

Typical Application Scenarios1. Connecting Traditional Industrial Devices

Old-Model PLCs and RTUs: Communicates with early Siemens S7-200, Modicon, and other PLCs that do not support Ethernet via RS-232/485 interfaces, enabling modernization of legacy equipment.
Intelligent Instruments: Collects data from temperature, pressure, flow, and other instruments (e.g., ABB, Rosemount field instruments), supporting Modbus RTU protocol.
Human-Machine Interface (HMI): Connects to touch screens or operation panels, providing local operation interfaces for parameter setting and status monitoring.

2. Communication in Safety-Critical Systems

Emergency Shutdown System (ESD): Connects to field valve actuators and fire alarm devices via redundant serial ports, ensuring rapid response (response time
Burner Management System (BMS): Communicates with burner controllers to monitor flame status and gas pressure in real time, supporting safety interlock control.
Fire & Gas Detection System (FGS): Receives data from smoke/gas detectors, ensuring single-channel failures do not affect alarm output through a voting mechanism.

3. Remote Monitoring and Data Transmission

SCADA System Integration: Acts as an RTU (Remote Terminal Unit) to upload field data to the central control room SCADA system via Modbus RTU.
Wireless Communication Expansion: Connects to GPRS/4G DTUs or wireless modems to achieve remote monitoring of remote sites (e.g., oil fields, pipelines).
Historical Data Recording: Transmits key process parameters to data recorders or DCS systems for trend analysis and accident traceability.

4. Protocol Conversion in Complex Systems

Multi-Protocol Gateway: Serves as a protocol converter to convert Modbus RTU signals to Profibus DP or Ethernet/IP, enabling heterogeneous system integration.
Device Networking: Integrates multiple serial devices (e.g., flowmeters, analyzers) into a unified network, simplifying system architecture.

5. High-Reliability Redundancy Configuration

Dual-Serial-Port Hot Standby: In high-risk scenarios such as petrochemical industries, configures two serial channels (primary-backup mode), automatically switching when the primary channel fails to ensure communication continuity.
Cross-Checking: Receives the same data through two independent serial ports for consistency comparison, enhancing data reliability.

6. Applications in Special Environments

Explosion-Proof Zones: Connects to intrinsically safe field devices via isolated RS-485 interfaces in ATEX/IECEx-certified hazardous areas.
Harsh Industrial Environments: Stably transmits critical control signals in metallurgical or mining scenarios with high temperatures (-40°C to +70°C) and strong vibrations.

Product Tags: 3005 module
