GE 760-P1-S1-LO-A20-G-T Intelligent Relay

GE  760-P1-S1-LO-A20-G-T  intelligent relay

Analysis of 760-P1-S1-LO-A20-G-T Module

The 760-P1-S1-LO-A20-G-T is an intelligent relay manufactured by GE Multilin, belonging to the 750/760 series feeder management relay family. Specifically designed for medium and low-voltage power distribution systems, this module provides comprehensive protection, control, monitoring, and communication functions. The following is a detailed analysis based on its model designation and features of the same product series:

1. Model Nomenclature Analysis

• 760: Represents the product series (GE Multilin 750/760 series feeder relays).

• P1: Likely indicates the protection function group (e.g., basic overcurrent protection, ground fault protection, etc.).

• S1: Likely indicates the communication interface group (e.g., supporting Modbus RTU, DNP 3.0, and other protocols).

• LO: Typically denotes low-power design or logic output configuration.

• A20: May indicate analog output configuration (e.g., 4-20mA output) or specific application scenarios (e.g., generator protection).

• G-T: May indicate the installation method (e.g., rail mounting) or temperature rating (suitable for a wide temperature range).

•


2. Core FunctionsProtection Functions

• Overcurrent Protection: Three-stage overcurrent protection (instantaneous, time-overcurrent, inverse-time overcurrent), configurable for phase current, zero-sequence current, or negative-sequence current protection.

• Overvoltage/Undervoltage Protection: Monitors bus voltage to prevent equipment damage caused by voltage anomalies.

• Frequency Protection: Detects system frequency deviations for islanding detection or frequency anomaly protection.

• Ground Fault Protection: Sensitive ground fault protection (5A input), suitable for low-current grounding systems.

• Other Optional Functions: Such as differential protection, power direction protection, thermal overload protection, etc.

Control Functions

• Automatic Reclosing: Supports single or multiple reclosing to enhance power supply reliability.

• Backup Power Switching: Achieves automatic bus transfer (ATS) or synchronization checking functions.

• Circuit Breaker Control: Operates circuit breaker opening/closing, supporting remote and local manual operations.

Monitoring and Communication

• Electrical Parameter Measurement: Real-time monitoring of voltage, current, power, frequency, power factor, etc.

• Event Recording: Stores fault waveforms and sequence of events (SOE) with a resolution of up to 1ms.

• Communication Interfaces: RS485, Ethernet (supporting Modbus TCP/RTU, DNP 3.0, etc.), integrable with SCADA or DCS systems.

•

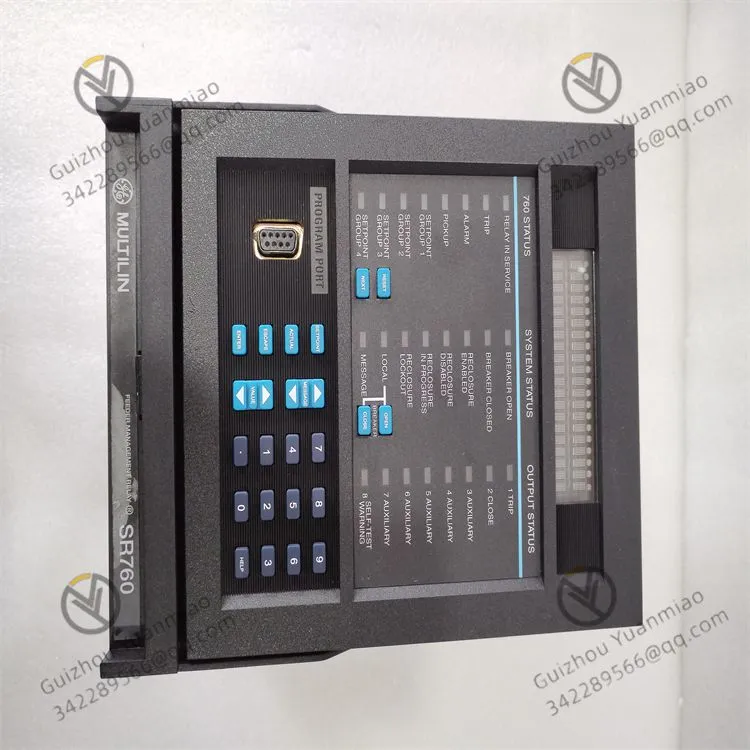

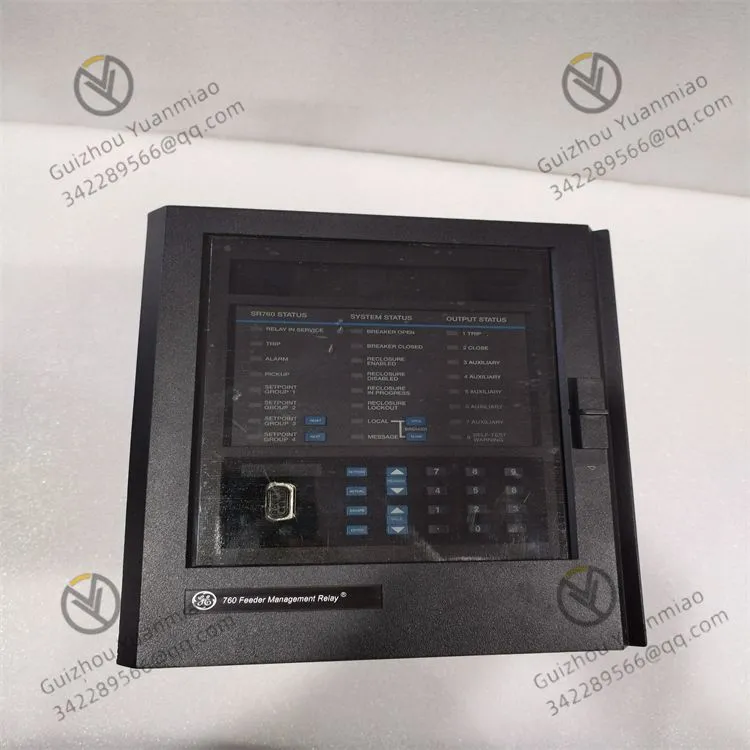

Human-Machine Interface

• LCD Display: 40-character display supporting menu navigation, showing real-time data and alarm information.

• Button Operation: Enables local parameter setting, constant value modification, and function configuration.

3. Technical Parameters

• Current Inputs: 5A phase CT input, 5A zero-sequence CT input, 5A sensitive ground CT input.

• Voltage Inputs: Typically supports 100V or 120V (line voltage) VT input.

• Power Supply: 88-300VDC or 70-265VAC (48-62Hz), adaptable to wide-range power fluctuations.

• Output Relays: 6 programmable output relays for tripping, alarming, or control.

• Analog Outputs: 8-channel 4-20mA analog outputs for remote monitoring.

• Operating Temperature: -20°C to +60°C (may expand based on model suffix).

4. Application Scenarios

• Substation Feeder Protection: Protects distribution lines, transformers, and motors.

• Industrial Power Systems: Power management and equipment protection for steel plants, chemical plants, mines, etc.

• Distributed Energy: Grid-connected protection and control for distributed power sources like photovoltaics and wind power.

• Backup Power Systems: Facilities with high power supply continuity requirements, such as hospitals and data centers.

•


5. Differences from Other Models

• Functional Focus: The P1 model typically provides basic protection functions, while P5 may support advanced protection (e.g., differential protection).

• Communication Capability: S1 may simplify communication interfaces (e.g., only RS485), while S5 may support more protocols or redundant communication.

• Power Consumption and Output: LO indicates low-power design, while HI may denote high-power output or high-sensitivity input.

•


6. Installation and Configuration

• Physical Installation: Supports panel mounting or 19-inch rack mounting, with a compact size (approximately 216mm×224mm×252mm).

• Configuration Methods:

• Local Configuration: Via front-panel buttons and LCD menu.

• Remote Configuration: Using dedicated software (e.g., Multilin Configurator) through communication interfaces.

• Debugging Tools: Supports online monitoring, waveform analysis, and fault diagnosis.

•


7. Advantages and Features

• Reliability: Industrial-grade design, adaptable to harsh environments, with a long mean time between failures (MTBF).

• Flexibility: Customizable protection functions and communication protocols to meet diverse application needs.

• Security: Dual hardware and software password protection to prevent unauthorized access.

• Intelligence: Supports self-diagnosis and remote maintenance, reducing operation and maintenance costs.

Conclusion
