Home > Electrical & Electronics > Electrical Control System > GE 760-P5-G5-S5-A20-R High-end Digital Relay

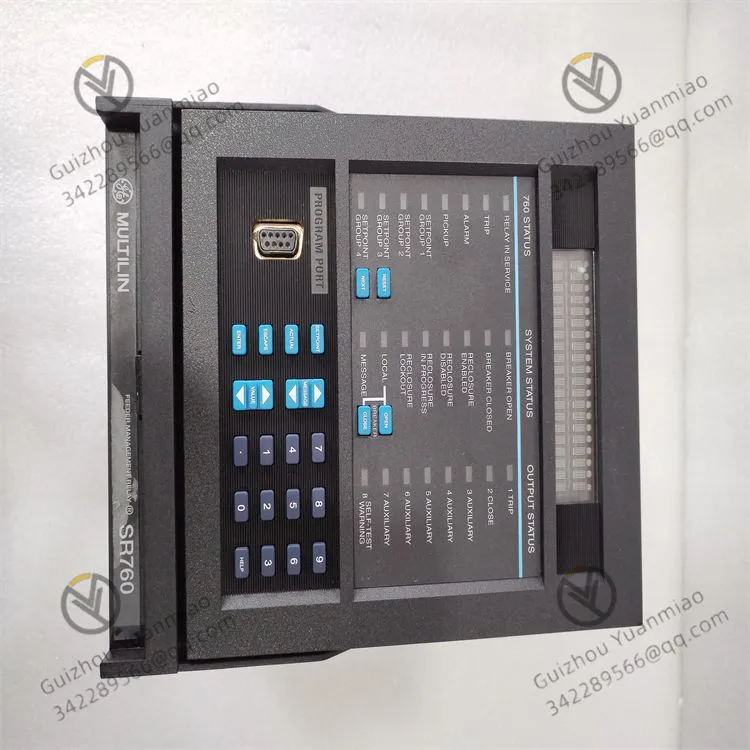

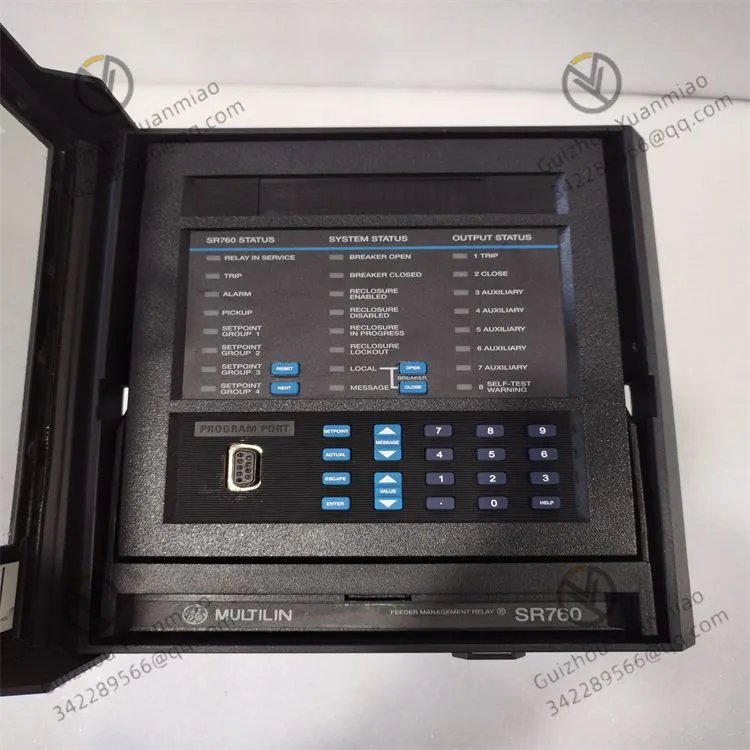

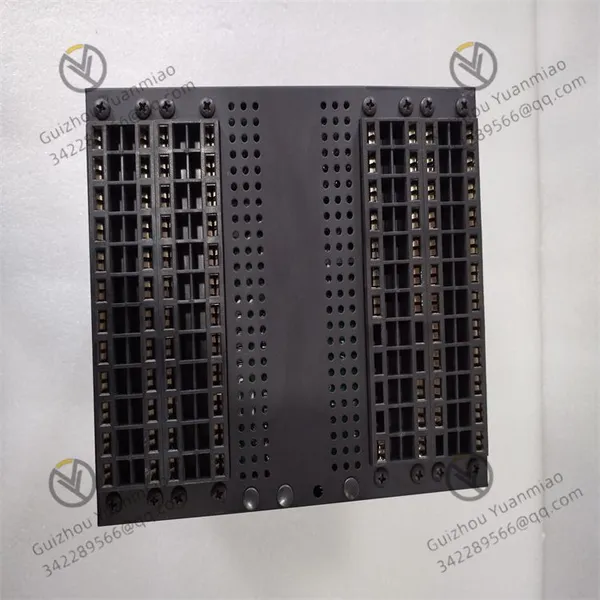

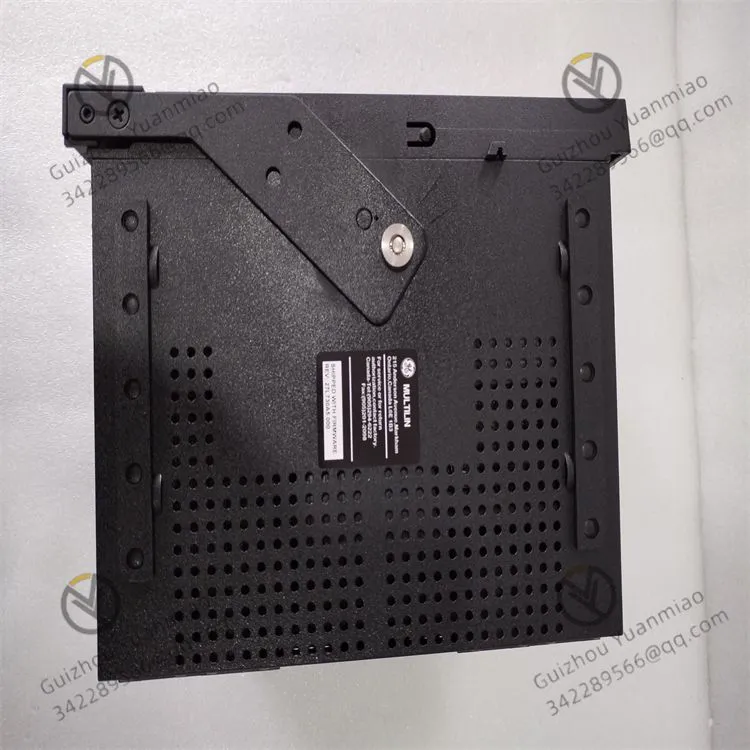

GE 760-P5-G5-S5-A20-R High-end Digital Relay

GE 760-P5-G5-S5-A20-R High-end Digital Relay thumbnail-2

GE 760-P5-G5-S5-A20-R High-end Digital Relay thumbnail-3

GE 760-P5-G5-S5-A20-R High-end Digital Relay photo-1

GE 760-P5-G5-S5-A20-R High-end Digital Relay photo-2

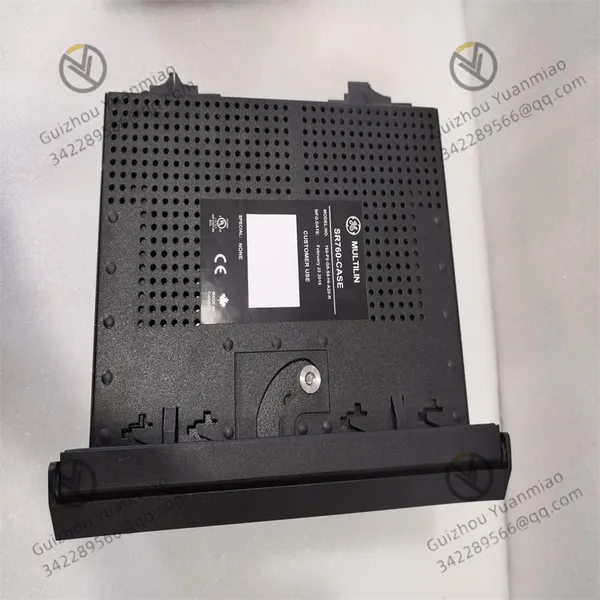

GE 760-P5-G5-S5-A20-R High-end Digital Relay photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

GE 760-P5-G5-S5-A20-R high-end digital relay

Analysis of 760-P5-G5-S5-A20-R Module

The 760-P5-G5-S5-A20-R is a high-end digital relay manufactured by GE Multilin, belonging to the 750/760 series feeder management relay family. Specifically designed for medium and high-voltage power systems, this module provides comprehensive protection, control, monitoring, and automation functions, suitable for the reliable operation of critical power infrastructure.

Model Nomenclature Analysis

760: Represents the product series (GE Multilin 750/760 series).
P5: Indicates the advanced protection function group, supporting complex algorithms such as complete overcurrent, differential, distance, and frequency protection.
G5: Likely denotes the generator protection kit, providing professional protection against generator faults (e.g., loss of excitation, reverse power, etc.).
S5: Represents the enhanced communication interface, supporting redundant Ethernet, fiber communication, and multiple protocols (Modbus/TCP, DNP 3.0, IEC 61850).
A20: May indicate analog output configuration (e.g., 20-channel 4-20mA output) or specific application scenarios (e.g., substation automation).
R: Typically signifies rack-mounted design, suitable for centralized control cabinet deployment.

2. Core FunctionsProtection Functions

Comprehensive Overcurrent Protection: Supports phase current, zero-sequence current, and negative-sequence current protection, equipped with inverse-time/definite-time curves (IEC/ANSI standards).
Differential Protection: Supports transformer, busbar, and line differential protection with inrush current suppression and harmonic braking functions.
Distance Protection: Multi-stage impedance protection for rapid fault clearing in transmission lines.
Dedicated Generator Protection: Loss of excitation protection, reverse power protection, overvoltage/undervoltage protection, and frequency anomaly protection.
Other Functions: Reclosing, synchronization checking, overload alarm, ground fault detection, etc.

Control and Automation

Automatic Switching Functions: Supports automatic backup power input (BZT) and bus section automatic control.
Circuit Breaker Condition Monitoring: Tracks circuit breaker operation times and contact wear, predicting maintenance needs.
Logic Programming: Built-in programmable logic controller (PLC) functions to implement customized control strategies.

Monitoring and Communication

High-Precision Measurement: Real-time monitoring of parameters such as voltage, current, power, frequency, and harmonics.
Event Recording and Waveform Capture: Stores pre-fault/post-fault waveform data (resolution ≤1ms), supporting fault replay analysis.
Communication Protocols: Supports IEC 61850 (digital substation standard), Modbus/TCP, and DNP 3.0, integrable with SCADA or DMS systems.

Human-Machine Interface

Color LCD Display: Graphical interface supporting touch operation, displaying real-time data and system topology.
Remote Configuration: Parameter setting and firmware upgrading via PC software (e.g., Multilin Configurator).

3. Technical Parameters

Current Input: 5A or 1A CT input, supporting 0.2% precision measurement.
Voltage Input: 100V or 120V VT input, supporting phase voltage/line voltage measurement.
Power Supply: 85-265VAC/DC wide-range power supply, supporting dual-power redundancy configuration.
Output Relays: ≥12 programmable outputs, supporting fast tripping (
Analog Outputs: 8-20 channels of 4-20mA outputs for remote monitoring and waveform recording.
Communication Interfaces: 2-4 Ethernet ports (supporting IEEE 1588 precise clock synchronization) and 2 RS485 ports.
Operating Environment: -25°C to +70°C, resistant to vibration and electromagnetic interference (complying with IEC 60255 standards).

4. Application Scenarios

Substation Automation: As the main protection device for 35kV-220kV transmission lines, busbars, and transformers.
Generator Protection: Comprehensive protection and control for generators in thermal power plants, hydropower stations, wind farms, etc.
Industrial Power Systems: Protection for medium and high-voltage distribution systems in industries such as steel, petrochemicals, and mining.
Distributed Energy Grid Connection: Access protection and power control for photovoltaic power stations and energy storage systems.
Smart Grid: Supports IEC 61850 communication to achieve digital substation and grid automation.

5. Differences from Other Models

Characteristics	760-P5-G5-S5-A20-R	760-P1-S1-LO-A20-G-T
Protection Functions	Advanced differential, distance, generator protection	Basic overcurrent and ground protection
Communication Capability	Redundant Ethernet, IEC 61850	Single RS485, Modbus/DNP 3.0
Analog Outputs	20 channels of 4-20mA	8 channels of 4-20mA
Application Scenarios	Medium/high-voltage systems, critical equipment	Low-voltage feeders, basic protection
Installation Method	Rack-mounted	Rail-mounted or panel-mounted

6. Advantages and Features

Reliability: Certified by IEC 61850, supporting dual configuration to meet high-reliability requirements of power systems.
Flexibility: Modular design, allowing selection of different protection function plugins based on needs.
Security: Hardware encryption and access control to prevent unauthorized configuration modifications.
Intelligence: Built-in self-diagnosis function, supporting predictive maintenance and fault early warning.

7. Typical Configuration and Installation

Physical Installation: 19-inch rack-mounted, depth ≤300mm, supporting DIN rail or panel mounting.
Configuration Tools: Use GE Multilin's dedicated software (e.g., UR Setup) for parameter setting and logic programming.
Debugging and Testing: Supports online simulation testing, enabling simulation of various fault scenarios to verify protection action logic.

Conclusion

The 760-P5-G5-S5-A20-R is a high-end intelligent relay designed for complex power systems, integrating protection, control, and monitoring, and supporting digital substation communication standards. Its powerful functions and reliability make it a core protection device for medium and high-voltage power systems, especially suitable for scenarios with extremely high requirements for power supply continuity.

Product Tags: 760-P5-G5-S5-A20-R
