Home > Electrical & Electronics > Electrical Control System > GE IC695CPU315 PACSystems RX3i Processor Module

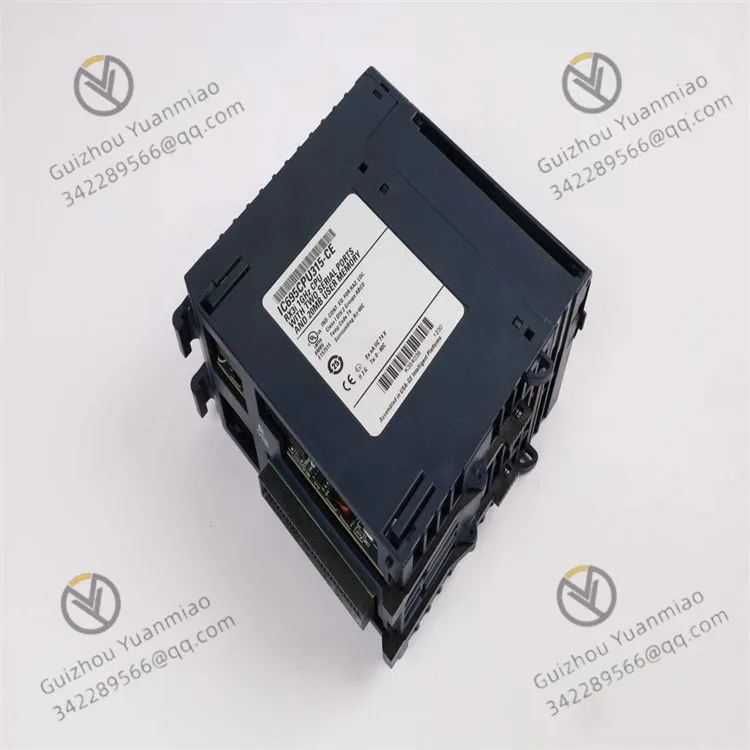

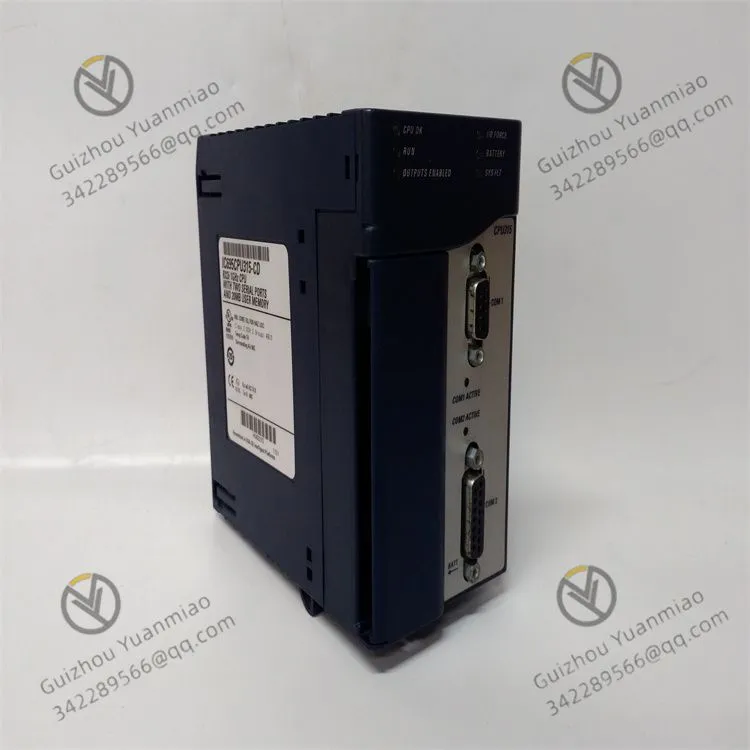

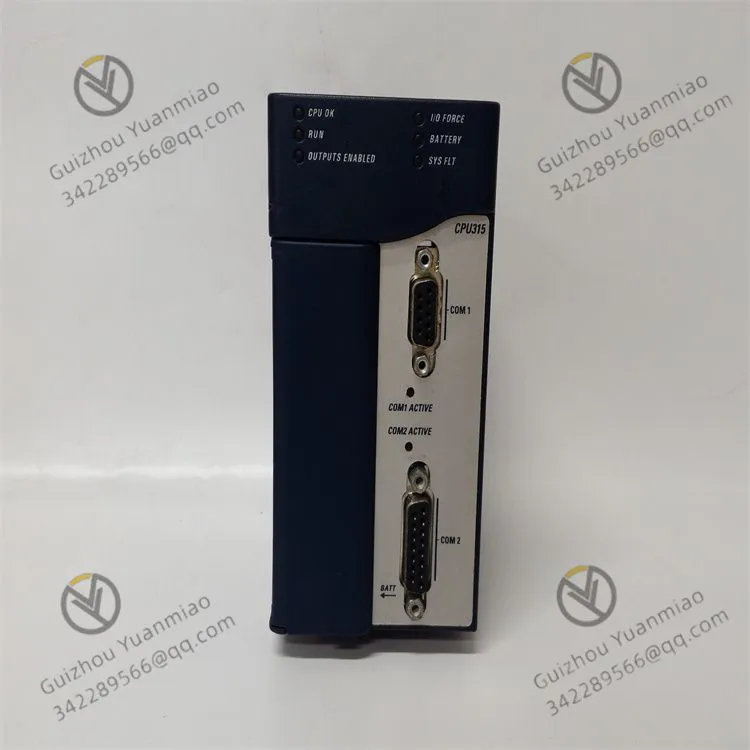

GE IC695CPU315 PACSystems RX3i Processor Module

GE IC695CPU315 PACSystems RX3i Processor Module thumbnail-3

GE IC695CPU315 PACSystems RX3i Processor Module thumbnail-4

GE IC695CPU315 PACSystems RX3i Processor Module photo-1

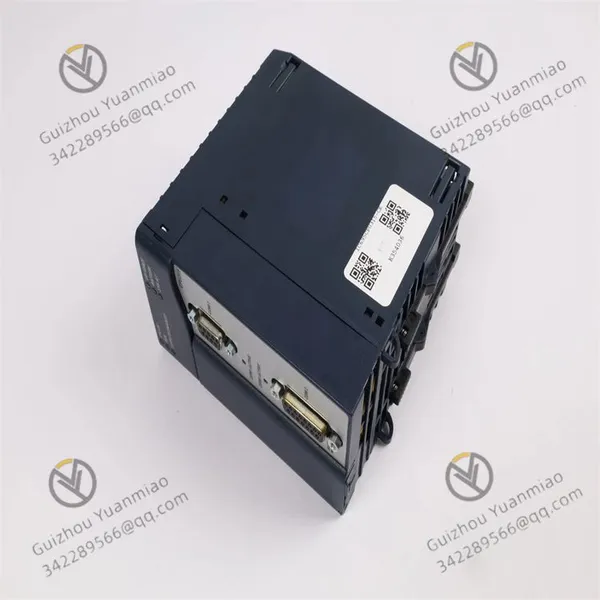

GE IC695CPU315 PACSystems RX3i Processor Module photo-2

GE IC695CPU315 PACSystems RX3i Processor Module photo-3

GE IC695CPU315 PACSystems RX3i Processor Module photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

GE IC695CPU315 PACSystems RX3i processor module

Core Parameters and Performance
Processor Architecture:
Equipped with a 1 GHz PowerPC processor, 64MB RAM (user-accessible), and 64MB flash memory (for program storage).
Supports floating-point operations, with Boolean instruction execution speed reaching 0.08ms/k, suitable for medium-scale control tasks.

Storage and Memory:
Built-in battery-backed RAM ensures data retention during power outages.
Supports SD card expansion (requires additional adapter) for storing large programs or historical data.

Operating Environment:
Temperature range: 0°C to 60°C (standard type), -20°C to 60°C (extended temperature type).
Vibration resistance: 5g (IEC 60068-2-6), shock resistance: 50g (IEC 60068-2-27).

Communication Interfaces
Ethernet Ports:
2 independent 10/100 Mbps Ethernet ports supporting protocols such as Modbus TCP, Ethernet/IP, and EGD (Ethernet Global Data).
Port 2 supports ring network redundancy (requires MRP protocol configuration) to enhance network reliability.

Serial Interfaces:
2 RS-232/RS-485 serial ports (software-configurable), supporting protocols like Modbus RTU and SNP for connecting legacy devices.

Backplane Communication:
Connects to local I/O modules via the RX3i PCI bus, supporting up to 32 I/O modules.
Supports remote I/O expansion (e.g., via Genius bus or PROFINET).

Functional Features
Programming Environment:
Compatible with GE PAC Control programming software, supporting five programming languages per IEC 61131-3 standards (LD, FBD, ST, IL, SFC).
Supports structured programming and modular design to improve code reuse.

Redundancy Capability:
Supports hot standby redundancy (requires PNC001 redundancy module) with switching time Supports power redundancy and network redundancy (MRP/RSTP) to ensure high system availability.

Security Features:
Supports password protection and program encryption to prevent unauthorized access.
Built-in watchdog timer monitors system operation and auto-resets in case of anomalies.

Application Scenarios
Manufacturing:
Suitable for small to medium-sized automated production lines, such as packaging machinery and material handling systems.
Supports multi-axis motion control (requires expansion of motion control modules).

Process Control:
Used for loop control in chemical, power, and other industries, supporting PID algorithms.
Can integrate with SCADA/HMI systems via OPC UA for remote monitoring.

Distributed Systems:
Serves as the main controller for remote I/O stations, connecting to field devices via Genius or PROFINET.
Supports communication with other brand PLCs through standard protocols.

Technical Comparison (with Series Products)

Feature	IC695CPU315	IC695CPE400
Processor	1 GHz PowerPC	Dual-core ARM Cortex-A9
Scan Speed	0.08ms/k	0.04ms/k
Ethernet Ports	2 (10/100 Mbps)	2 (Gigabit)
Expansion Capability	32 I/O modules	255 remote stations
Redundancy Support	Hot standby	Hot standby
Typical Applications	Small to medium systems	Large complex systems

Summary of Advantages

High cost-effectiveness: Suitable for projects with limited budgets requiring reliable control.
Strong compatibility: Seamlessly integrates with RX3i series I/O modules and legacy devices.
Easy maintenance: Supports online programming and remote diagnostics, reducing downtime.

Product Tags: IC695CPU315
