Home > Electrical & Electronics > Electrical Control System > NI PCI-6229 Multifunctional Data Acquisition Card

NI PCI-6229 Multifunctional Data Acquisition Card

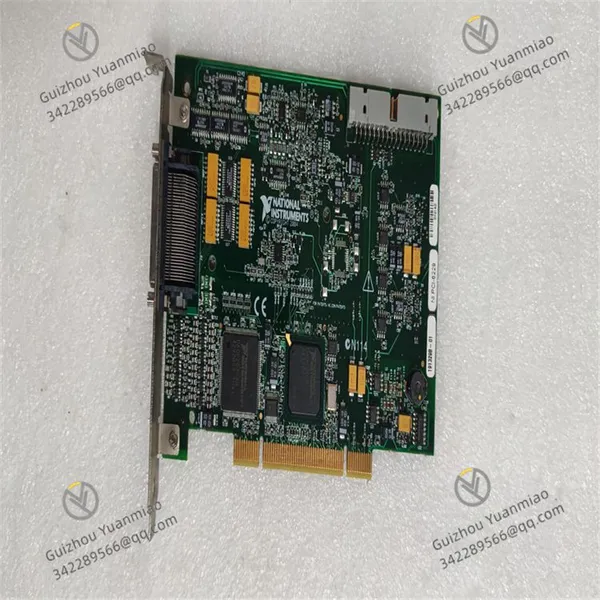

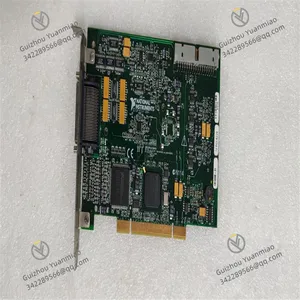

NI PCI-6229 Multifunctional Data Acquisition Card photo-1

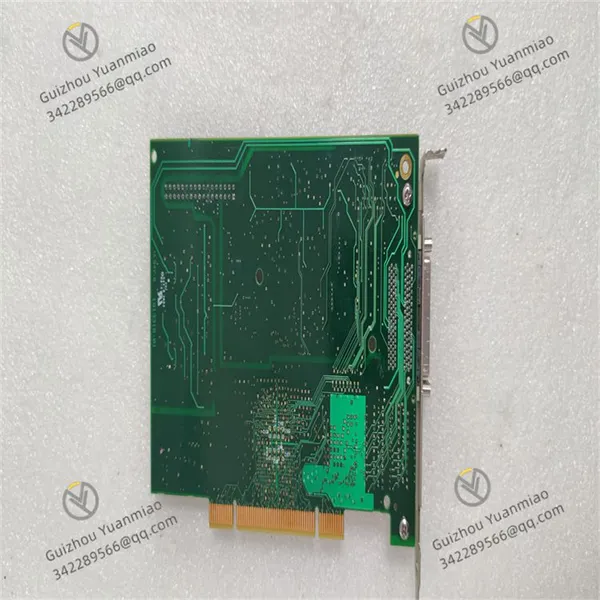

NI PCI-6229 Multifunctional Data Acquisition Card photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

NI PCI-6229I. Functional Features

High-Precision Acquisition and Multi-Channel Parallel Capability

16-bit ADC Resolution: With a dynamic range of 98dB, it captures microvolt-level weak signals (e.g., sensor outputs, bioelectrical signals), suitable for high-precision measurement scenarios.
Multi-Channel Synchronous Sampling: 16 analog input channels support synchronous sampling at up to 1.25MS/s (single channel), meeting requirements for high-frequency signals or multi-channel parallel monitoring (e.g., vibration analysis, transient signal capture).

Flexible I/O and Trigger Mechanism

24 digital I/O (TTL/CMOS compatible) with interrupt triggering, suitable for digital logic control or communication protocol simulation (e.g., UART, SPI).
3 32-bit counters/timers with a maximum counting frequency of 80MHz, supporting pulse counting, PWM generation, and pulse width measurement.
16 analog inputs (selectable ranges: ±10V, ±5V, ±1V, ±0.5V) support wide-range voltage signal acquisition.
2 analog outputs (±10V, 16-bit resolution) with up to 1.25MS/s update rate for signal excitation or waveform generation.
Analog I/O:
Digital I/O and Counters:
Triggering and Synchronization: Supports analog triggering (edge/window), digital triggering (TTL level), external clock synchronization, and re-triggering, adapting to multi-device collaborative acquisition (e.g., synchronization with oscilloscopes, DAQ modules).

High-Speed Data Transmission and System Compatibility

PCI Bus Interface: 32-bit/33MHz PCI bus with DMA technology enables real-time transmission rates up to 132MB/s, suitable for continuous large-data-stream acquisition.
Software Ecosystem: Compatible with development environments like LabVIEW, MATLAB, Python, and C++; programmable via NI-DAQmx driver, supporting Windows (7/10) and Linux systems.

II. Technical Specifications

Parameter Category	Specific Index
Analog Input	16 channels, 16-bit ADC, up to 1.25MS/s sampling rate (single channel), input ranges ±10V/±5V/±1V/±0.5V, bandwidth (-3dB) 400kHz, CMRR≥100dB @ 50/60Hz
Analog Output	2 channels, 16-bit DAC, up to 1.25MS/s update rate, ±10V output range, settling time ≤2μs
Digital I/O	24 channels (16 inputs/8 outputs), TTL/CMOS compatible, supports interrupt triggering
Counters/Timers	3 32-bit counters, maximum counting frequency 80MHz, supporting event counting, pulse width measurement, and PWM generation
Trigger Types	Internal triggering, external triggering (TTL/COMS), software triggering; supports trigger delay and re-triggering
Bus Interface	PCI (32-bit/33MHz), compatible with PCI-X motherboards
Operating Temperature	0°C~55°C (operating), -40°C~70°C (storage)

III. Typical Application Scenarios

Industrial Automation and High-Frequency Monitoring

High-Frequency Vibration Analysis: Synchronously acquires high-frequency vibration signals (e.g., impact waveforms within 100kHz) from motors, fans, etc., combined with FFT analysis for fault early warning.
Closed-Loop Control: Acquires temperature and pressure sensor signals, implementing PID control via analog outputs (e.g., precision temperature control systems, hydraulic equipment adjustment).

Scientific Research and Transient Signal Testing

Physics and Acoustic Experiments: Acquires ultrasonic and transient acoustic signals (e.g., echo signals in material non-destructive testing) to analyze waveform characteristics and propagation laws.
Electronic Signal Integrity Testing: Acquires clock jitter and edge characteristics of high-speed digital circuits to evaluate signal quality in PCB design.

Communication and Sensor Calibration

Communication Protocol Simulation: Simulates high-speed communication protocols like SPI and I2C via digital I/O to test timing compatibility of chip interfaces.
Sensor Dynamic Calibration: Provides high-frequency excitation signals for acceleration and pressure sensors, synchronously acquiring output data to complete dynamic response characteristic calibration.

IV. Comparison with NI PCI-6221

Module Model	Resolution	Sampling Rate (Analog Input)	Core Differences	Typical Application Scenarios Comparison
NI PCI-6221	16-bit	250kS/s (16-channel synchronous)	Low sampling rate, low bandwidth; suitable for low-frequency multi-channel acquisition (e.g., industrial process control, bioelectrical signals)	Low-frequency multi-channel monitoring, static signal acquisition
NI PCI-6229	16-bit	1.25MS/s (single channel)	High sampling rate, high bandwidth (400kHz); supports high-frequency signal acquisition and dynamic response testing	High-frequency vibration analysis, transient signal capture

V. Working Principle and System Integration

Signal Processing Flow

Analog Signal Chain: Input signals undergo anti-aliasing filtering, are converted to digital signals by a 16-bit ADC, and achieve real-time filtering, scaling, and buffering via FPGA, supporting distortion-free acquisition of high-frequency signals.
Digital Signal Processing: Digital I/O and counter modules implement high-speed trigger response through hardware logic, suitable for timing-sensitive applications (e.g., pulse width measurement).
Data Transmission: Transmits data via PCI bus or DMA technology, supporting real-time storage of high-frequency data streams in continuous acquisition mode (e.g., uninterrupted recording at 1MS/s sampling).

System Compatibility

Hardware: Compatible with desktop or industrial computers with standard PCI slots, combinable with other NI PCI modules (e.g., PCI-6733 analog output card) to build high-frequency test systems.
Software: Enables cross-platform programming via NI-DAQmx driver, supporting LabVIEW graphical development and Python/C++ text interfaces for easy integration into automated test platforms.

VI. Conclusion

With a high sampling rate of 1.25MS/s, 400kHz bandwidth, and 16-channel synchronous acquisition capability, the NI PCI-6229 serves as a core tool for high-frequency signal monitoring and dynamic response testing. Its advantage lies in balancing multi-channel parallel acquisition with high-frequency characteristics, making it suitable for industrial vibration analysis, scientific research transient signal capture, and high-speed electronic testing scenarios—especially applications requiring simultaneous handling of "high precision" and "high dynamics" (e.g., sensor dynamic calibration, communication signal integrity analysis).

Product Tags: PCI-6229
