NI PCIE-1427 High-Speed Vision Acquisition Card

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
NI PCIE-1427 High-Speed Vision Acquisition Card thumbnail-1
NI PCIE-1427 High-Speed Vision Acquisition Card thumbnail-2
NI PCIE-1427 High-Speed Vision Acquisition Card photo-1

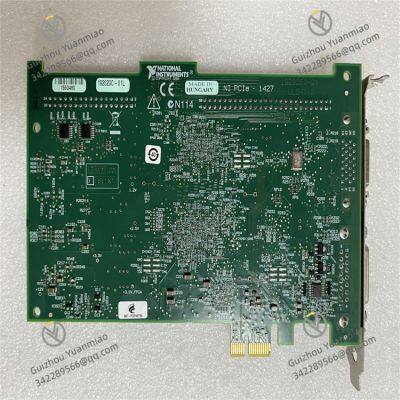

NI PCIE-1427 High-Speed Vision Acquisition Card photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
NI PCIe-1427I. Overview
The NI PCIe-1427 is a high-performance vision acquisition card designed for industrial imaging applications. It specializes in capturing, digitizing, and transferring video data from high-speed cameras to a host PC via the PCI Express interface. Key features include:


  • High-Speed Data Transfer: Leverages PCIe Gen2 x4 interface (up to 1GB/s bandwidth).

  • Camera Compatibility: Supports Camera Link® (Base, Medium, and Full configurations) and GigE Vision® protocols.

  • Real-Time Processing: Onboard FPGA for preprocessing tasks (e.g., image cropping, binning).

  • Triggering & Synchronization: Advanced triggering capabilities for precise image capture timing.

II. Technical Specifications
ParameterSpecifications
InterfacePCI Express Gen2 x4 (8 GT/s aggregate bandwidth)
Camera SupportCamera Link® (Base/Medium/Full) and GigE Vision®
Data RateUp to 680 MB/s (Camera Link) or 1 Gb/s (GigE Vision)
Channels2 Camera Link channels or 2 GigE Vision ports
Trigger I/O8 TTL-compatible digital I/O lines (4 inputs, 4 outputs)
Trigger ModesEdge, level, pulse width, and pattern matching
Onboard Memory512 MB DDR3 SDRAM (configurable as frame buffer or processing memory)
FPGAXilinx Kintex-7 FPGA for custom image preprocessing
Power Requirements7.5 W (typical), 10 W (maximum)
Operating Temp0°C to 55°C (storage: -40°C to 85°C)
Dimensions167.6 mm × 106.7 mm (half-length PCIe card)

PCIE-1427 (2)

III. Core Functionalities1. Camera Link® Interface

  • Protocol Support:

    • Base Configuration: 1 channel, 8-bit data, up to 680 MB/s.

    • Medium Configuration: 2 channels, 8-bit data, up to 1.36 GB/s.

    • Full Configuration: 4 channels, 8-bit data, up to 2.72 GB/s.

  • Electrical Interface: 2 Mini Camera Link connectors, compatible with most industrial cameras.

2. GigE Vision® Compatibility

  • Ethernet Ports: 2x RJ45 ports supporting 1 Gb/s data transfer.

  • PoE Support: Power over Ethernet (IEEE 802.3af) for simplified camera deployment.

3. Onboard FPGA Processing

  • Custom Algorithms: Programmable FPGA for real-time image preprocessing (e.g., ROI extraction, thresholding).

  • Data Reduction: Binning, decimation, and compression to reduce bandwidth requirements.

4. Triggering & Synchronization

  • Advanced Triggers:

    • Edge/Level Trigger: Responds to rising/falling edges or steady-state levels.

    • Pulse Width Trigger: Captures images based on specific pulse durations.

    • Pattern Matching: Triggers on complex digital patterns (e.g., barcode sequences).

  • Multi-Card Sync: Supports daisy-chaining for synchronized multi-camera systems.

IV. Software & Development Ecosystem1. Driver Support

  • NI-IMAQdx: Standard driver for image acquisition, compatible with LabVIEW, C/C++, Python, and .NET.

  • SDKs: Includes Camera Link® and GigE Vision® protocol libraries for custom applications.

2. Programming Environments

  • LabVIEW: Drag-and-drop vision tools for rapid development.

  • Vision Development Module: Advanced image processing functions (e.g., blob analysis, edge detection).

  • Third-Party Support: OpenCV integration for Python/C++ developers.

3. Configuration Tools

  • NI MAX (Measurement & Automation Explorer): Graphical interface for camera setup, calibration, and diagnostics.

PCIE-1427 (1)

V. Typical Applications1. Industrial Inspection

  • Automated Visual Inspection: High-speed defect detection in manufacturing (e.g., PCB soldering, automotive components).

  • Robotic Guidance: Real-time image processing for pick-and-place operations.

2. Scientific Imaging

  • High-Speed Phenomena: Capturing fast events (e.g., ballistics, fluid dynamics) with frame rates up to 10,000 fps.

  • Microscopy: Precise synchronization with microscopy equipment for time-lapse imaging.

3. Traffic & Surveillance

  • License Plate Recognition: High-resolution image capture for traffic monitoring systems.

  • Security Systems: Multi-camera synchronization for wide-area surveillance.

VI. Working Principle1. Data Flow

  1. Camera Interface: Acquires analog/digital video signals from Camera Link® or GigE Vision® cameras.

  2. Digitization: Converts analog signals to digital (if applicable) and formats data for PCIe transfer.

  3. FPGA Processing: Applies user-defined preprocessing (e.g., ROI extraction) to reduce data volume.

  4. PCIe Transfer: Transfers processed data to host memory via DMA (Direct Memory Access).

2. Trigger Handling

  • Hardware Triggers: External signals (e.g., sensors, PLCs) initiate image capture without CPU intervention.

  • Software Triggers: Host applications trigger captures based on algorithmic conditions (e.g., motion detection).

3. Synchronization Mechanisms

  • Camera Sync: Uses dedicated sync lines to ensure all cameras in a multi-camera system capture images simultaneously.

  • Timestamping: Embeds precise timestamps into image data for post-processing synchronization.

VII. Comparison with Similar Models
FeatureNI PCIe-1427NI PCIe-1433NI PCIe-1435
Camera Link SupportBase/Medium/FullFullFull
GigE Vision SupportYesNoNo
Max Data Rate680 MB/s (CL)2.72 GB/s (CL)2.72 GB/s (CL)
Onboard Memory512 MB1 GB2 GB
Target ApplicationsMixed Camera SystemsUltra-High-Speed CLHigh-Resolution CL
VIII. Installation & Integration1. Hardware Installation

  • PCIe Slot: Requires x4 or higher PCI Express Gen2/Gen3 slot.

  • Cooling: Passive cooling via heatsink; ensure adequate airflow in chassis.

2. Software Setup

  1. Install NI-IMAQdx driver and relevant SDKs.

  2. Configure cameras via NI MAX or custom software.

  3. Develop applications using preferred programming environment.

3. System Considerations

  • Power: Ensure host system provides sufficient power (additional 10 W).

  • Bandwidth: Avoid oversubscribing PCIe lanes when using multiple cards.

IX. Summary
The NI PCIe-1427 excels in high-speed, multi-camera vision systems by combining Camera Link® and GigE Vision® support with onboard FPGA processing. Its flexibility makes it ideal for industrial inspection, scientific research, and surveillance applications where real-time image acquisition and preprocessing are critical. The card’s robust triggering capabilities and PCIe Gen2 interface ensure reliable data transfer even in demanding environments.
Product Tags: PCIE-1427
