AC Brushless Alternator With AVR - Efficient Synchronous Generators

Fujian Tecgen Power Co., Ltd.
AC Brushless Alternator With AVR - Efficient Synchronous Generators thumbnail-1
AC Brushless Alternator With AVR - Efficient Synchronous Generators thumbnail-2
AC Brushless Alternator With AVR - Efficient Synchronous Generators thumbnail-3
AC Brushless Alternator With AVR - Efficient Synchronous Generators thumbnail-4
AC Brushless Alternator With AVR - Efficient Synchronous Generators photo-1

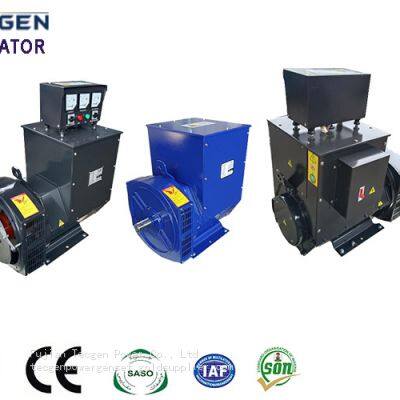

AC Brushless Alternator With AVR - Efficient Synchronous Generators photo-2

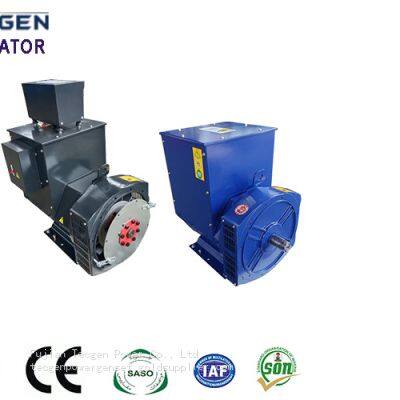

AC Brushless Alternator With AVR - Efficient Synchronous Generators photo-3

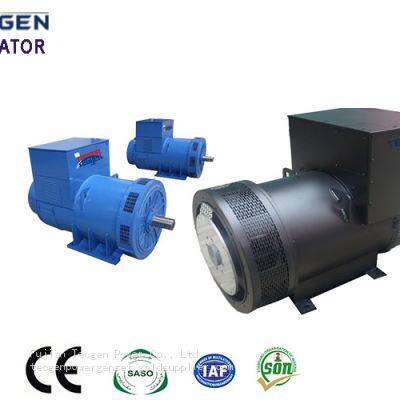

AC Brushless Alternator With AVR - Efficient Synchronous Generators photo-4
US$ 100 - 50000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Self-Starting Diesel Generator
Warranty:
1500hours
Stroke:
Other
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Self-Starting Diesel Generator
Warranty 1500hours
Stroke Other
Usage Common Units, Standby Unit, Emergency Crew
Speed Speed
Cooling Method Wind Cooling
Installation Method Fixed
Excitation Mode AC Rotating Exciter
Conditions of Use Land Use
Landuse Type of Unit Ordinary
Output Type AC Three Phase
Brand Tecgen
Output range 1kVA - 1000kVA
Alternator Type Brushless / Brush
Frequency 50 / 60Hz
Voltage 110/120/208/220/230/240/380/400/415/440
Bearing Single Or Double
Altitude Below 1000m
Connection Type AC Single Phase / Three Phase
Protection Grade H
Voltage Regulation AVR
Transport Package FCL
Trademark TECGEN
Origin CHINA

AC Brushless Alternator with AVR - Efficient synchronous generators


FEATURES OF THREE PHASE ALTERNATOR:

  1. Compatible with all permanent magnetic generators, ensuring      consistent excitation.

  2. Meets GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100      standards.

  3. Available with single or double bearings,      plus various adaptor & disc plate options.

  4. 12 reconnectable winding terminals for      versatile voltage options.

  5. Standard H insulation class for      reliability.

  6. Easy installation & maintenance of lead-end      rotated diodes & adaptor bolts.

  7. Standard sealed, maintenance-free      bearings.

  8. Standard IP23 protection, with optional      enhanced environmental protection.

ac dynamo alternator.jpg

Model

Prime

Stand-by

stator

Single bearing Packed

400V/50Hz

length

size/Weight

KW

KVA

KW

KVA

L=

mm

m³

KGS


TGI-164A

6.5

8

7

9

65mm

430*440*490

0.10

93


TGI-164B

8.8

11

10

12

80mm

430*440*490

0.10

97


TGI-164C

10.8

14

12

15

100mm

460*440*490

0.10

106


TGI-164D

12.8

16

14

18

115mm

460*440*490

0.10

112


TGI-184ES

15

19

17

21

135mm

520*490*510

0.13

130


TGI-184E

18

23

20

25

150mm

520*490*510

0.13

138


TGI-184F

22

28

24

30

190mm

610*490*510

0.16

161


TGI-184G

25

31

28

34

230mm

610*490*510

0.16

177


TGI-184H

30

38

33

41

255mm

670*490*510

0.17

222


TGI-184J

34

43

37

47

285mm

670*490*510

0.17

235


TGI-224C

34

43

37

47

130mm

720*490*770

0.27

242


TGI-224D

40

50

44

55

160mm

720*490*770

0.27

265


TGI-224E

48

60

53

66

180mm

810*490*770

0.31

288


TGI-224F

58

73

64

80

240mm

810*490*770

0.31

320


TGI-224G

68

85

76

95

300mm

860*490*770

0.33

365


TGI-274C

80

100

88

110

165mm

810*580*850

0.40

390


TGI-274D

96

120

104

130

205mm

810*580*850

0.40

427


TGI-274ES

100

125

112

140

215mm

810*580*850

0.40

440


TGI-274E

112

140

124

155

230mm

930*580*850

0.46

490


TGI-274FS

120

150

132

165

250mm

930*580*850

0.46

510


TGI-274F

128

160

140

175

285mm

930*580*850

0.46

530


TGI-274G

146

183

160

200

335mm

980*580*850

0.49

593


TGI-274H

160

200

176

220

375mm

1020*585*850

0.51

625


TGI-274J

180

225

200

250

410mm

1110*585*850

0.55

660


TGI-274K

200

250

220

275

450mm

1110*585*850

0.55

680


TGI-314C

200

250

220

275

275mm

1150*680*930

0.73

851


TGI-314D

240

300

264

330

340mm

1150*680*930

0.73

931


TGI-314ES

260

325

288

360

410mm

1150*680*930

0.73

1022


TGI-314E

280

350

308

385

370mm

1150*680*930

0.73

950


TGI-314FS

304

380

336

420

500mm

1220*690*950

0.80

1150


TGI-314F

320

400

352

440

450mm

1220*690*950

0.80

1150


TGI-354C

360

450

400

500

350mm

1320*750*1050

1.04

1355


TGI-354D

400

500

440

550

430mm

1370*780*1050

1.13

1380


TGI-354E

488

610

536

670

500mm

1370*780*1050

1.13

1490


TGI-354FS

500

625

560

700

440mm

1370*780*1050

1.13

1550


TGI-354F

536

670

600

750

575mm

1370*780*1050

1.13

1640


TGI-404B

600

750

660

825

355mm

1750*920*1360

2.19

1920


TGI-404C

640

800

704

880

380mm

1750*920*1360

2.19

2015


TGI-404D

728

910

800

1000

410mm

1750*920*1360

2.19

2102


TGI-404E

800

1000

880

1100

470mm

1750*920*1360

2.19

2227


TGI-404F

900

1125

1000

1250

560mm

1750*920*1360

2.19

2452


TGI-404G

1000

1250

1100

1375

675mm

1780*920*1360

2.23

2820


TGI-454B

1080

1350

1200

1500

465mm

1940*1050*1540

3.14

2900


TGI-454C

1264

1580

1400

1750

550mm

1940*1050*1540

3.14

3091


TGI-454D

1400

1750

1540

1925

620mm

2160*1050*1540

3.50

3391


TGI-454E

1520

1900

1680

2100

700mm

2160*1050*1540

3.50

3629


TGI-454F

1664

2080

1840

2300

770mm

2160*1050*1540

3.50

3913


TGI-454G

1800

2250

2000

2500

820mm

2160*1050*1540

3.50

4127


ac alternator brushless type.jpg

TECHNICAL SPECIFICATIONS OF THREE PHASE ALTERNATOR:

  1. Stable voltage adjustment rate: ±0.5%

  2. Instant voltage adjustment rate: ≥-15% to      ≤+20%

  3. Voltage adjustment range: ≥±25%

  4. Insulation class: H

  5. Constant working type: s1

  6. Protection class: IP23



Remark:

Land rate data of three phase alternator applies to all models at 40ºC (Altitude ≤ 1000m).
The voltages listed are derived from diverse individual windings, achieved through reconfiguration of 12 outlet terminals (3-phase) and 4 outlet terminals (single-phase).
We also offer custom voltage ranges tailored to client specifications.
