28kVA ISUZU Silent Diesel Generator Couple With Stamford Alternator Continuous USE

28kVA ISUZU Silent Diesel Generator Couple With Stamford Alternator Continuous USE photo-1

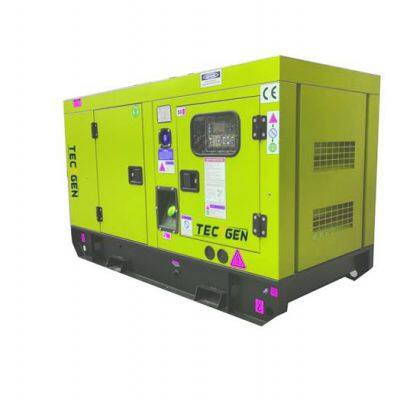

28kVA ISUZU Silent Diesel Generator Couple With Stamford Alternator Continuous USE photo-2

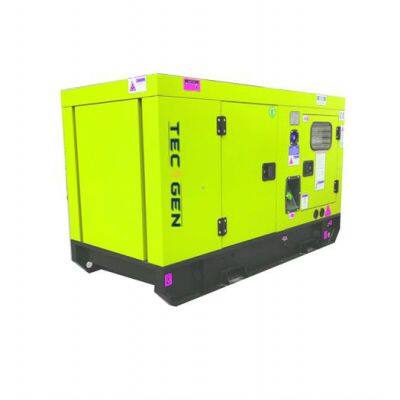

28kVA ISUZU Silent Diesel Generator Couple With Stamford Alternator Continuous USE photo-3

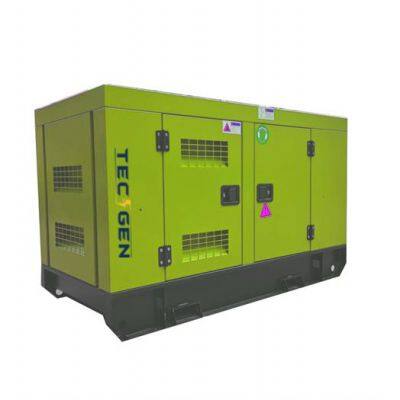

28kVA ISUZU Silent Diesel Generator Couple With Stamford Alternator Continuous USE photo-4
US$ 2500 - 3600 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Self-Starting Diesel Generator
Warranty:
1500hours
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
15 days
Type Self-Starting Diesel Generator
Warranty 1500hours
Stroke Four Stroke
Usage Common Units, Standby Unit, Emergency Crew
Speed Speed
Cooling Method Water Cooling
Installation Method Fixed
Excitation Mode AC Rotating Exciter
Conditions of Use Land Use
Landuse Type of Unit Low Noise Automation Type
Output Type AC Three Phase
Model TG28JIS
Frequency 50Hz
Voltage 230/400V
Phase 3 Phase, 4 Wire
P.F(COS) P.F 0.8
Rated Power 20kW / 25kVA
Standby Power 22kW / 28kVA
Engine Brand JX Isuzu
Engine Model JE493DB-02
Alternator Model Stamford SOL2-P1
Transport Package FCL
Trademark TECGEN
Origin CHINA

28kVA ISUZU Silent Diesel Generator Couple with Stamford Alternator Continuous USE


Introducing the Silent Power Generator - an exceptional ISUZU Diesel Generator that combines reliability, efficiency, and versatility. With its silent enclosed design, this generator set provides a seamless power solution for various applications. Let's explore the key points that differentiate our product and cater to Google SEO optimization:

Standard Features:

  • Power Output: 20kW/25kVA (Prime) and 22kW/28kVA (Standby)

  • Engine Model: ISUZU JE493DB-02, a robust 4-cylinder, naturally      aspirated engine

  • Generator Model: SOL2-P1

  • Voltage: 230/400V (Customizable to multiple options)

  • Frequency: 50Hz

  • Speed: 1500rpm

  • Integrated-fuel-tank: An 8-hour internal fuel tank prevents      corrosion damage, making it ideal for coastal or humid environments.

  • DEIF SGC-420 multifunctional controller: Ensures comprehensive      control and monitoring capabilities.

  • Mechanical or electronic speed regulation: Provides flexibility      for speed adjustments.

  • Maintenance-free 24V lead-acid battery with battery rack:      Guarantees hassle-free operation.

  • Delixi or CHNT circuit breakers: Ensures reliable electrical      protection.

  • Industrial-grade silencer: Reduces noise levels for a quieter      operation.

  • Forklift holes: Facilitates easy transportation and      maneuverability.

  • Optional configurations: Choose from built-in ATS or      wall-mounted ATS box for seamless automatic transfer of power.

  • Super silent operation: Offers a peaceful environment with      minimal noise.

  • 24-hour fuel tank: Provides extended operation without      refueling.

  • Remote monitoring and start: Allows convenient control and monitoring      of the generator set from a distance.

  • Oil-water separator: Ensures efficient separation of oil and      water for enhanced performance.

  • Water jacket heater: Facilitates quick engine start-up in cold      conditions.

  • Output switch: Enables easy control of power distribution.

  • Parallel operation capability: Allows multiple generator sets      to be connected in parallel for increased power output.

  • 3000-hour spare parts: Ensures availability of necessary      components for maintenance.

  • 18-month or 1500-hour after-sales service: Provides reliable      support and assistance.

  • Optional engine brands: Choose from SDEC, Yuchai, Doosan,      Shanghai Engine, VMAN, Wudong, Googol, CAT, Perkins, Deutz Cummins, and      more.

  • Optional generator brands: Select from renowned brands like      Stamford, Leroy Somer, Meccalte, and Marathon.

  • Versatile configurations: Available in open, silent,      containerized silent, and trailer-mounted silent options.

  • High production capacity: Factory produces 3000 units annually.


17kva jx isuzu power generator.jpg

28kVA JX Isuzu Diesel Generator Datasheets:


28kVA   ISUZU Silent Diesel Generator Technical Datasheets

Genset model

TG28JIS

Genset Type

Silent Enclosed

Rate Voltage

440V//415V/400V/380V/230V/220V/110V

Frequency

50Hz

Speed

1500rpm

P.F(COS)

P.F. 0.8

Prime Output Current

34.8A

Prime Power

20kW / 25kVA

Standby Power

22kW / 28kVA

Engine

Brand

ISUZU

Model

JE493DB-02

Alternator

Brand

Stamford

Model

SOL2-P1

Controller

Brand

DEIF

Model

SGC-420

Genset Weight

660kgs

Genset Dimensions

L2080 * W 880 * 1100

ISUZU   Diesel Engine Data

Brand

Isuzu

Engine Model

JE493DB-02

Number of Cylinders

4 Cylinder in Line

Cycle

4-troke

Aspiration

Natural Intake

Displacement

2.771L

Compression ratio

18.2L

Bore×Stroke

93*102mm

Speed

1500rpm

Prime Power

24kW

Standby Power

27kW

Speed Governor

MECH or Electrical

Cooling System

Forced water   cooling cycle

Starting system

DC Motor

Fuel Consumption at 100% Load

207g/kwh@1500rpm

Stamford   Alternator Data

Brand

Stamford

Model

SOL2-P1

Frequency/speed

50HZ/1500RPM

Rate Output

25kVA

No. of Phase

3 Phase, 4 Wire

Exciter type

Single bearing, Brushless, Self-excited   with AVR

Power factor

0.8

Insulation Grade

H

Protection Grade

IP23

Working Condition

Below 1000m

Bearing

Single

Coupling

Direct

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

DEIF   Controller System

Controller

Brand

DEIF

Model

SGC-420

Function

Auto Mains (Utility) Failure

Static with auto. battery charger

Emergency stop push button

ATS & RS485 Connection

CAN Functions

Diesel   Generator Output ranges & Brand Options

Prime Power (kW)

Diesel Engine

AC Alternator

Controller

Type

17kW ~ 1260kW

Cummins

Leroy Somer

DEIF

Open/Silent

10kW ~ 300kW

Weifang Ricardo

Tecgen

Mebay

16kW ~ 600kW

Deutz

Marathon

DEIF

7kW ~ 64kW

Yangdong

Tecgen



7kW ~ 76kW

Quanchai

18kW ~ 3000kW

Weichai

8kW ~ 800kW

SDEC

12kW ~ 320kW

FAWDE

18kW ~ 1200kW

Yuchai

11kW ~ 104kW

Beinei Aircooled

7kW ~ 1800kW

Perkins

Stamford

DEEPSEA

6.8kW ~ 2000kW

Caterpillar

Caterpillar

Caterpillar

6.8kW ~ 2000kW

FG Wilson

FG Wilson

FG Wilson

17kW ~ 30kW

Isuzu

Mecc Alte

ComAp

210kW ~ 818kW

VMAN

Tecgen

Tecegn

6kW ~ 2000kW

Chinese Engines

Smartgen


Usage:

  • Suitable for residential, commercial, and industrial      applications.

  • Ideal as a backup power source for various equipment.

Key Features:

  • Silent Power Generator: Enjoy the tranquility of a noise-free      operation.

  • ISUZU Diesel Generator: Benefit from the reliability and      efficiency of an ISUZU engine.

  • Customizable options: Tailor the generator set to your specific      requirements by choosing from various engine and generator brands.

  • Advanced control and monitoring: The DEIF SGC-420 controller      ensures precise control and comprehensive monitoring capabilities.

  • Durable and corrosion-resistant: Designed to withstand coastal      and humid environments, ensuring long-lasting performance.

Options and Advantages:

  • Wide range of engine and generator brands to choose from,      allowing customization based on specific needs.

  • Multiple configurations available to suit different      installation requirements.

  • Advanced features like remote monitoring, parallel operation,      and oil-water separator enhance convenience and performance.

  • Comprehensive warranty and after-sales support provide peace of      mind.
