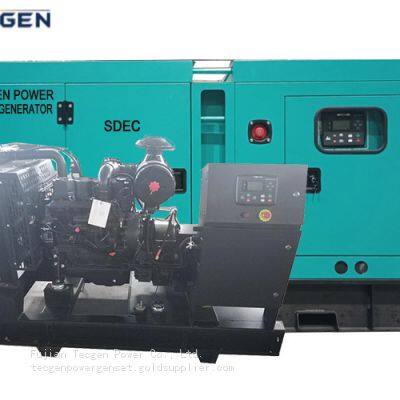

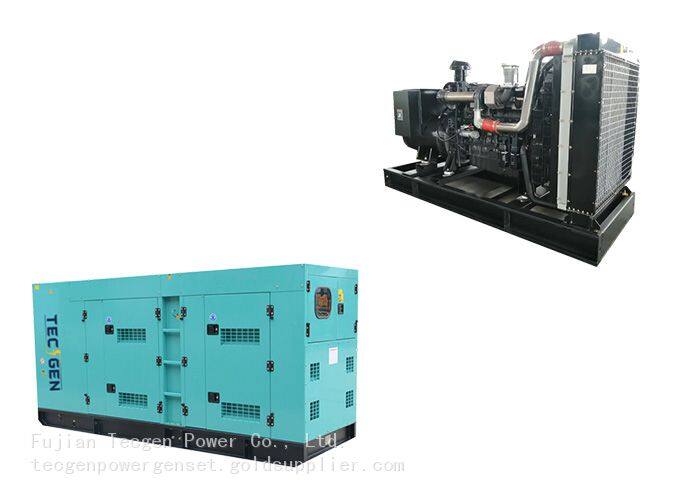

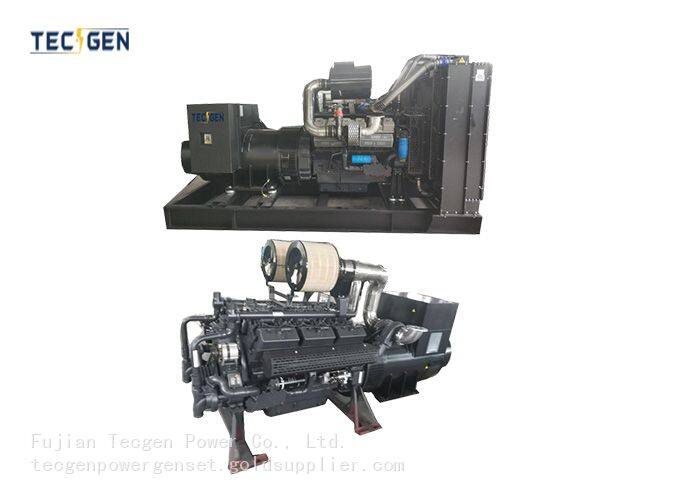

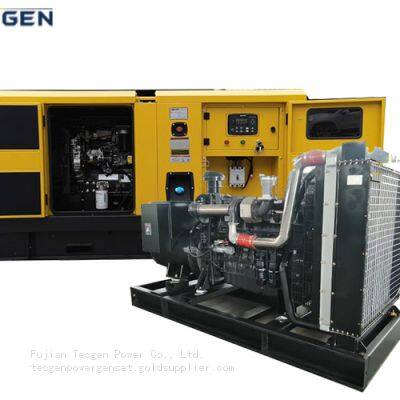

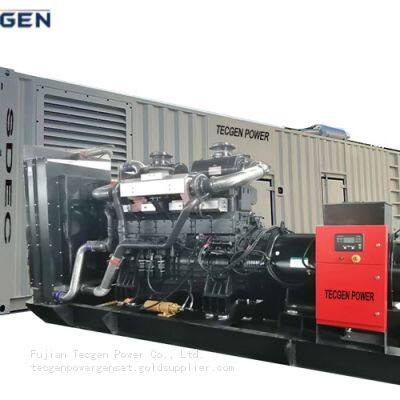

China Engine SDEC Diesel Generator With Stamford/Leroy Somer/Meccalte/Tecgen Alternator
China Engine SDEC Diesel Generator with Stamford/Leroy Somer/Meccalte/Tecgen Alternator
Distinctive Features of SDEC Series Diesel Generators
Rated Capacity & Specifications
Power Range: 12-1800kw (15-2250kva)
Frequency: 50/60HZ
Engine Speed: 1500/1800rpm
Phase: Available in 3phase or 1phase
Voltage: Adjustable from 110V to 460V
Operational Efficiency
Fuel Tank Capacity: Sufficient for 8 hours of continuous operation
Noise Level: Quiet operation with 68-80db@7m
Operating Temperature: Adaptable to -5ºC to 50ºC environments
Environmentally Friendly Water Tank: Maintains temperature between 40-50ºC
Engine & Alternator
Diesel Engine: Four-stroke, water-cooled, providing reliable and efficient performance
Alternator Options: Brushless alternator or renowned brands like Marathon, Stamford, Leroy Somer, and Tecgen
Control & Monitoring
Controller Options: Deepsea, ComAp, DEIF, Smartgen - ensuring precise and reliable operation
Starting Method: Adjustable, with manual or electronic options
Delivery & Packaging
Lead Time: Typically 20-30 days
Packaging: Protected with plastic wrapping film
Export Port: Flexible options including Fuzhou Port and other major ports in China
Optional Accessories
ATS (Automatic Transfer Switch)
Water Heater
Fuel Heater
Water Fuel Separator
Unique Advantages
Anti-Vibration Mountings: Reducing vibrations for smoother operation
Electrical Start System: With maintenance-free battery and engine-driven charger
Residential Silencer: With flexible connections and elbow for quiet operation
Comprehensive Testing: All generators undergo rigorous testing, including 50%, 75%, 100%, and 110% load tests
Corrosion-Resistant Components: Stainless galvanized zinc plates ensure durability
Industrial Silencer & Exhaust Hose: Ensuring safe and quiet exhaust
SDEC Engine & Stamford Alternator: Pairing of industry-leading engines and alternators for optimal performance
Additional Heating & Cleaning Options: Including water jacket preheater, oil heater, and double air cleaner
| SDEC Series | ||||||||||||
| Diesel Generator Set Techinical Specification ( 50Hz ) | ||||||||||||
| Genset Model | Genset Prime Power | Genset Standby Power | Engine Model | Engine MAX Power | Cylinders | Governor | Alternator Model | Fuel Consumption | Dimension (LxWxH) mm | |||
| KVA | KW | KVA | KW | KW | L/H | Open Type | Silent Type | |||||
| TG11SD | 10 | 8 | 11 | 9 | 3Z1.1-G42 | 11 | 3L | Electrical | TGI164S8 | 2.8 | 1100x500x750 | 1400x750x750 |
| TG14SD | 13 | 10 | 14 | 11 | 3ZT1.1-G42 | 14 | 3L | Electrical | TGI164S10 | 3.4 | 1100x500x750 | 1400x750x750 |
| TG17SD | 15 | 12 | 17 | 13 | 4Z2.3-G11 | 18 | 4L | Mechanical | TGI164S12 | 4.5 | 1400x650x860 | 1800x750x860 |
| TG22SD | 20 | 16 | 22 | 18 | 4Z2.7-G11 | 24 | 4L | Mechanical | TGI184S16 | 5.8 | 1500x650x860 | 1900x750x860 |
| TG28SD | 25 | 20 | 28 | 22 | 4Z3.0-G11 | 30 | 4L | Mechanical | TGI184S20 | 7.2 | 1600x650x860 | 2000x750x860 |
| TG34SD | 31 | 25 | 34 | 28 | 4Z3.2-G11 | 35 | 4L | Mechanical | TGI184S25 | 8.5 | 1600x750x1100 | 2000x850x1120 |
| TG41SD | 38 | 30 | 41 | 33 | 4ZT3.2-G11 | 44 | 4L | Mechanical | TGI184S30 | 9.8 | 1600x750x1100 | 2000x850x1120 |
| TG55SD | 50 | 40 | 55 | 44 | 4ZT3.5-G21 | 54 | 4L | Electrical | TGI224S40 | 12.0 | 1700x750x1100 | 2100x850x1120 |
| TG69SD | 63 | 50 | 69 | 55 | 4ZT4.1-G21 | 66 | 4L | Electrical | TGI224S50 | 15.0 | 1900x750x1100 | 2300x900x1120 |
| TG76SD | 69 | 55 | 76 | 61 | 4ZTAA4.1-G21 | 70 | 4L | Electrical | TGI224S55 | 16.0 | 1900x750x1100 | 2300x900x1120 |
| TG83SD | 75 | 60 | 83 | 66 | 4ZTAA4.1-G31 | 81 | 4L | Electrical | TGI224S60 | 18.0 | 1950x750x1100 | 2300x900x1120 |
| TG69SD | 63 | 50 | 69 | 55 | SC4H95D2 | 68 | 4L | Electrical | TGI224S50 | 15.0 | 1900x750x1100 | 2300x900x1120 |
| TG88SD | 80 | 64 | 88 | 70 | SC4H115D2 | 86 | 4L | Electrical | TGI224S64 | 19.5 | 1950x750x1100 | 2300x900x1120 |
| TG110SD | 100 | 80 | 110 | 88 | SC4H140D2 | 105 | 4L | Electrical | TGI274S80 | 22.0 | 1980x970x1185 | 2600x1050x1500 |
| TG127SD | 115 | 92 | 127 | 101 | SC4H160D2 | 116 | 4L | Electrical | TGI274S92 | 24.0 | 1980x970x1185 | 2600x1050x1500 |
| TG138SD | 125 | 100 | 138 | 110 | SC4H180D2 | 132 | 4L | Electrical | TGI274S100 | 28.0 | 2410x940x1400 | 2700x1050x1500 |
| TG165SD | 150 | 120 | 165 | 132 | SC7H205D2 | 152 | 6L | Electrical | TGI274S120 | 32.0 | 2410x940x1400 | 3200x1100x1700 |
| TG179SD | 163 | 130 | 179 | 143 | SC7H220D2 | 165 | 6L | Electrical | TGI274S130 | 34.0 | 2410x940x1400 | 3200x1100x1700 |
| TG206SD | 188 | 150 | 206 | 165 | SC7H250D2 | 185 | 6L | Electrical | TGI274S150 | 39.0 | 2410x940x1400 | 3200x1100x1700 |
| TG220SD | 200 | 160 | 220 | 176 | SC8D280D2 | 204 | 6L | Electrical | TGI274S160 | 44.0 | 2490x1080x1630 | 3400x1300x1700 |
| TG248SD | 225 | 180 | 248 | 198 | SC9D310D2 | 228 | 6L | Electrical | TGI274S180 | 49.0 | 2490x1080x1630 | 3500x1300x1800 |
| TG275SD | 250 | 200 | 275 | 220 | SC9D340D2 | 255 | 6L | Electrical | TGI274S200 | 53.0 | 2540x1100x1630 | 3500x1300x1800 |
| TG303SD | 275 | 220 | 303 | 242 | SC10E380D2 | 280 | 6L | Electrical | TGI314S220 | 58.0 | 3070x1100x1630 | 3800x1600x2050 |
| TG344SD | 313 | 250 | 344 | 275 | SC12E420D2 | 308 | 6L | Electrical | TGI314S250 | 63.0 | 3070x1100x1630 | 3900x1600x2050 |
| TG385SD | 350 | 280 | 385 | 308 | SC12E460D2 | 338 | 6L | Electrical | TGI314S280 | 69.0 | 3070x1100x1630 | 3900x1600x2050 |
| TG399SD | 363 | 290 | 399 | 319 | SC12E480D2 | 355 | 6L | Electrical | TGI314S290 | 73.0 | 3070x1100x1630 | 4000x1600x2050 |
| TG413SD | 375 | 300 | 413 | 330 | SC13E500D2 | 373 | 6L | Electrical | TGI314S300 | 76.0 | 3070x1100x1630 | 4000x1600x2050 |
| TG440SD | 400 | 320 | 440 | 352 | SC13E550D2 | 405 | 6L | Electrical | TGI314S320 | 82.0 | 3070x1100x1630 | 4000x1600x2050 |
| TG344SD | 313 | 250 | 344 | 275 | SC13G420D2 | 308 | 6L | Electrical | TGI314S250 | 63.0 | 3070x1100x1630 | 3900x1600x2050 |
| TG413SD | 375 | 300 | 413 | 330 | SC15G500D2 | 373 | 6L | Electrical | TGI314S300 | 76.0 | 3070x1100x1630 | 4000x1600x2050 |
| TG495SD | 450 | 360 | 495 | 396 | SC25G610D2 | 446 | 12V | Electrical | TGI354S360 | 98.0 | 3450x1400x1990 | 4500x1600x2250 |
| TG550SD | 500 | 400 | 550 | 440 | SC25G690D2 | 505 | 12V | Electrical | TGI354S400 | 111.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG619SD | 563 | 450 | 619 | 495 | SC27G755D2 | 560 | 12V | Electrical | TGI354S450 | 122.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG688SD | 625 | 500 | 688 | 550 | SC27G830D2 | 610 | 12V | Electrical | TGI354S500 | 135.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG756SD | 688 | 550 | 756 | 605 | SC27G900D2 | 662 | 12V | Electrical | TGI354S550 | 145.0 | 3630x1400x1990 | 4500x1600x2250 |
| TG55SD | 50 | 40 | 55 | 44 | 4HTAA4.3-G31 | 56 | 4L | Electrical | TGI224S40 | 12.0 | 1700x750x1100 | 2100x850x1120 |
| TG69SD | 63 | 50 | 69 | 55 | 4HTAA4.3-G32 | 68 | 4L | Electrical | TGI224S50 | 15.0 | 1900x750x1100 | 2300x900x1120 |
| TG88SD | 80 | 64 | 88 | 70 | 4HTAA4.3-G33 | 86 | 4L | Electrical | TGI224S64 | 19.5 | 1950x750x1100 | 2300x900x1120 |
| TG113SD | 105 | 84 | 113 | 90 | 4HTAA4.3-G34 | 105 | 4L | Electrical | TGI274S84 | 22.0 | 1980x970x1185 | 2600x1050x1500 |
| TG125SD | 115 | 92 | 125 | 100 | 4HTAA4.3-G35 | 117 | 4L | Electrical | TGI274S92 | 24.0 | 1980x970x1185 | 2600x1050x1500 |
| TG150SD | 138 | 110 | 150 | 120 | 4HTAA4.3-G36 | 140 | 4L | Electrical | TGI274S110 | 30.0 | 2410x940x1400 | 2700x1050x1500 |
| TG150SD | 138 | 110 | 150 | 120 | 6HTAA6.5-G31 | 141 | 6L | Electrical | TGI274S110 | 30.0 | 2410x940x1400 | 2700x1050x1500 |
| TG165SD | 150 | 120 | 165 | 132 | 6HTAA6.5-G32 | 155 | 6L | Electrical | TGI274S120 | 32.0 | 2410x940x1400 | 3200x1100x1700 |
| TG188SD | 169 | 135 | 188 | 150 | 6HTAA6.5-G35 | 170 | 6L | Electrical | TGI274S135 | 35.0 | 2410x940x1400 | 3200x1100x1700 |
| TG206SD | 188 | 150 | 206 | 165 | 6HTAA6.5-G33 | 185 | 6L | Electrical | TGI274S150 | 39.0 | 2410x940x1400 | 3200x1100x1700 |
| TG225SD | 200 | 160 | 225 | 180 | 6HTAA6.5-G34 | 205 | 6L | Electrical | TGI274S160 | 44.0 | 2490x1080x1630 | 3400x1300x1700 |
| TG225SD | 200 | 160 | 225 | 180 | 6DTAA8.9-G31 | 204 | 6L | Electrical | TGI274S160 | 44.0 | 2490x1080x1630 | 3400x1300x1700 |
| TG250SD | 225 | 180 | 250 | 200 | 6DTAA8.9-G32 | 228 | 6L | Electrical | TGI274S180 | 49.0 | 2490x1080x1630 | 3500x1300x1800 |
| TG275SD | 250 | 200 | 275 | 220 | 6DTAA8.9-G33 | 253 | 6L | Electrical | TGI274S200 | 53.0 | 2540x1100x1630 | 3500x1300x1800 |
| TG313SD | 275 | 220 | 313 | 250 | 6DTAA8.9-G34 | 280 | 6L | Electrical | TGI314S220 | 58.0 | 3070x1100x1630 | 3800x1600x2050 |
| TG350SD | 313 | 250 | 350 | 280 | 6ETAA11.8-G32 | 308 | 6L | Electrical | TGI314S250 | 63.0 | 3070x1100x1630 | 3900x1600x2050 |
| TG375SD | 350 | 280 | 375 | 300 | 6ETAA11.8-G33 | 338 | 6L | Electrical | TGI314S280 | 69.0 | 3070x1100x1630 | 3900x1600x2050 |
| TG413SD | 375 | 300 | 413 | 330 | 6ETAA11.8-G31 | 380 | 6L | Electrical | TGI314S300 | 76.0 | 3070x1100x1630 | 4000x1600x2050 |
| TG450SD | 400 | 320 | 450 | 360 | 6ETAA12.8-G32 | 400 | 6L | Electrical | TGI314S320 | 82.0 | 3070x1100x1630 | 4000x1600x2050 |
| TG500SD | 450 | 360 | 500 | 400 | 6ETAA12.8-G31 | 441 | 6L | Electrical | TGI354S360 | 98.0 | 3450x1400x1990 | 4500x1600x2250 |
| TG550SD | 500 | 400 | 550 | 440 | 6ETAA12.8-G310 | 495 | 6L | Electrical | TGI354S400 | 111.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG563SD | 500 | 400 | 563 | 450 | 12GTAA27-G34 | 505 | 12V | Electrical | TGI354S400 | 111.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG625SD | 563 | 450 | 625 | 500 | 12GTAA27-G33 | 555 | 12V | Electrical | TGI354S450 | 122.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG688SD | 625 | 500 | 688 | 550 | 12GTAA27-G32 | 622 | 12V | Electrical | TGI354S500 | 135.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG775SD | 700 | 560 | 775 | 620 | 12GTAA27-G31 | 684 | 12V | Electrical | TGI354S560 | 145.0 | 3630x1400x1990 | 4500x1600x2250 |
| TG563SD | 500 | 400 | 563 | 450 | 6KTAA25-G311 | 506 | 6L | Electrical | TGI354S400 | 111.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG625SD | 563 | 450 | 625 | 500 | 6KTAA25-G310 | 572 | 6L | Electrical | TGI354S450 | 122.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG688SD | 625 | 500 | 688 | 550 | 6KTAA25-G39 | 629 | 6L | Electrical | TGI354S500 | 135.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG750SD | 700 | 560 | 750 | 600 | 6KTAA25-G38 | 684 | 6L | Electrical | TGI354S560 | 145.0 | 3630x1400x1990 | 4500x1600x2250 |
| TG563SD | 500 | 400 | 563 | 450 | 6KTAA25-G36 | 506 | 6L | Electrical | TGI354S400 | 111.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG625SD | 563 | 450 | 625 | 500 | 6KTAA25-G35 | 572 | 6L | Electrical | TGI354S450 | 122.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG688SD | 625 | 500 | 688 | 550 | 6KTAA25-G34 | 629 | 6L | Electrical | TGI354S500 | 135.0 | 3550x1400x1990 | 4500x1600x2250 |
| TG750SD | 700 | 560 | 750 | 600 | 6KTAA25-G33 | 684 | 6L | Electrical | TGI354S560 | 145.0 | 3630x1400x1990 | 4500x1600x2250 |
| TG825SD | 750 | 600 | 825 | 660 | 6KTAA25-G32 | 754 | 6L | Electrical | TGI404S600 | 155.0 | 3900x1600x2100 | 5000x2200x2450 |
| TG900SD | 825 | 660 | 900 | 720 | 6KTAA25-G31 | 800 | 6L | Electrical | TGI404S660 | 164.0 | 4200x1600x2100 | 5000x2200x2450 |
| TG1000SD | 900 | 720 | 1000 | 800 | 6KTAA25-G320 | 902 | 6L | Electrical | TGI404S720 | 185.0 | 4390x1600x2100 | 5600x2250x2600 |
| TG1100SD | 1000 | 800 | 1100 | 880 | 6KTAA25-G321 | 968 | 6L | Electrical | TGI404S800 | 199.0 | 4390x1600x2100 | 5700x2250x2600 |
FAQ: Distinctive Answers for SDEC Series Diesel Generators
Which Is the Most Convenient Export Seaport for You?
We prioritize Fuzhou seaport, but are flexible to utilize other seaports in China to ensure efficient shipping and delivery to your destination.
What Payment Methods Do You Accept?
For your convenience, we offer a wide range of payment options including Telegraphic Transfer (T/T), Letter of Credit (LC), and Document against Payment (DP). We ensure secure and hassle-free transactions.
How Long Does It Take for Delivery?
Delivery time varies based on the specific configuration of the diesel generators, your delivery requirements, and our inventory status. However, we strive to maintain a quick turnaround time. Typically, open-type diesel generators take 7-15 working days, while silent diesel generators require 10-25 working days.
What Is Your Minimum Order Quantity (MOQ)?
Our MOQ is just 1 unit, making it easy for you to start with a small order. However, for larger quantities, we offer attractive discounts and better pricing.
What Is the Approximate Ocean Freight Cost?
The ocean freight cost varies depending on the final destination seaport. We can provide you with a customized quote based on your specific requirements and shipping details.
With our commitment to quality, flexibility, and customer satisfaction, we ensure that your purchase of SDEC Series Diesel Generators is seamless and efficient.
