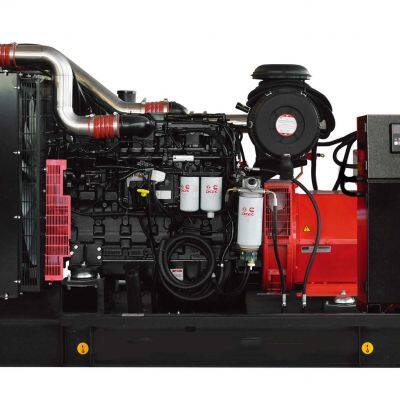

Cummins 625kVA Diesel Generator Set with Stamford Alternator
≥1 Sets
- T/T L/C
You May Like
-
Cummins 750kVA Diesel Generator Set with Stamford Alternator
-
Cummins 1000kVA Diesel Generator Set with Stamford Alternator
-
Cummins 1250kVA Diesel Generator Set with Stamford Alternator
-
Cummins 130kVA Diesel Generator Set with Stamford Alternator
-
Cummins 250kVA Diesel Generator Set with Stamford Alternator
-
Cummins 400kVA Diesel Generator Set with Stamford Alternator
Product Details
| Type | Basic Diesel Generator | Stroke | Four Stroke | |
| Usage | Common Units, Standby Unit | Speed | Speed | |
| Cooling Method | Water Cooling | Installation Method | Fixed | |
| Excitation Mode | AC Rotating Exciter | Conditions of Use | Land Use | |
| Landuse Type of Unit | Automation Type | Output Type | AC Three Phase |
Product Description
Genset Model: XP-C688K
Prime Power: 625 kVA
Standby Power: 688 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 3650×1450×2200 mm
Weight: 4450 kg
Engine Specification
Manufacturer / Model CCEC Cummins KTA19-G8A
Air intake system Turbocharged
Fuel system PT type fuel pump, EFC
Cylinder arrangement 6 in line
Displacement 18.9L
Bore and stroke 159*159（mm）
Compression ratio 13:1
Rated speed 1500rpm
Max. Standby power at rated speed 610KW/830HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 205 g/kWh 131L/h
Fuel consumption @ 75% (Prime Power) Load 206 g/kWh 99L/h
Fuel consumption @ 50% (Prime Power) Load 211 g/kWh 69L/h
Alternator Specification (Stamford S5L1D-E41)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%
