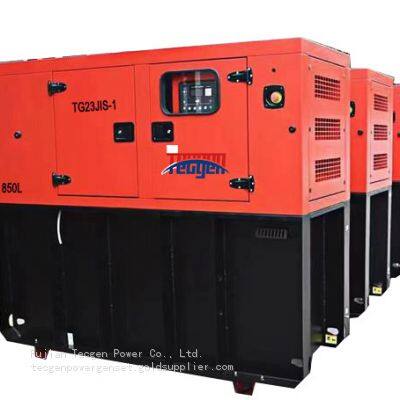

Single Phase ISUZU Diesel Power Generator 17kW Genset With 850L Fuel Tank for 24 Hours Continuous USE
Single Phase ISUZU Diesel Power Generator 17kW Genset with 850L Fuel Tank for 24 Hours Continuous USE
Product Description for Continuous AC Single Phase Silent Generator Set - 21kVA Diesel Genset with 850L Fuel Tank
Standard Features:
Model: TG23JIS-1
Output Type: Single Phase
Rated Voltage: 240V/230V/220V/110V selectable
Frequency: Stable 50Hz output
Speed: 1500rpm for efficient operation
Power Capacity: Prime Power of 17kW / 21kVA, Standby Power of 19kW / 23kVA
Key Features:
Silent Design: Engineered for minimal noise emission, suitable for noise-sensitive environments.
Large Fuel Tank: Equipped with an 850L fuel tank for extended runtime and reduced refueling frequency.
Stable Performance: Delivers consistent power output with low voltage fluctuations.
High Power Factor: PF 0.8 ensures efficient power utilization.
Easy Operation: User-friendly controls for simplified operation and maintenance.
Single Phase ISUZU Diesel Power Generator Technical Datasheets | ||||||
Genset model | TG23JIS-1 | |||||
Genset Type | Silent | |||||
Rate Voltage | 240V/230V/220V/110V | |||||
Frequency | 50Hz | |||||
Speed | 1500rpm | |||||
Output Type | Single Phase | |||||
P.F(COS) | P.F. 0.8 | |||||
Prime Output Current | 91.3A | |||||
Prime Power | 17kW / 21kVA | |||||
Standby Power | 19kW / 23kVA | |||||
Engine | Brand | ISUZU | ||||
Model | JE493DB-04 | |||||
Alternator | Brand | Stamford | ||||
Model | SOL2-M1 | |||||
Controller | Brand | Smartgen | ||||
Model | HGM6110N | |||||
Fuel Tank Capacity | 850L | |||||
Genset Weight | 630kgs | |||||
Genset Dimensions | L2080 * W 880 * 1100 | |||||
ISUZU Diesel Engine Data | ||||||
Brand | Isuzu | |||||
Engine Model | JE493DB-04 | |||||
Number of Cylinders | 4 Cylinder in Line | |||||
Cycle | 4-troke | |||||
Aspiration | Natural Intake | |||||
Displacement | 2.585L | |||||
Compression ratio | 18.2L | |||||
Bore×Stroke | 93*102mm | |||||
Speed | 1500rpm | |||||
Prime Power | 21kW | |||||
Standby Power | 24kW | |||||
Speed Governor | MECH or Electrical | |||||
Cooling System | Forced water cooling cycle | |||||
Starting system | DC Motor | |||||
Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
Stamford Alternator Data | ||||||
Brand | Stamford | |||||
Model | SOL2-M1 | |||||
Frequency/speed | 50HZ/1500RPM | |||||
Rate Output | 22.9kVA | |||||
No. of Phase | Single Phase, 3 Wire | |||||
Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
Power factor | 0.8 | |||||
Insulation Grade | H | |||||
Protection Grade | IP23 | |||||
Working Condition | Below 1000m | |||||
Bearing | Single | |||||
Coupling | Direct | |||||
Voltage adjust range | ≥5% | |||||
Voltage regulation NL-FL | ≤±1% | |||||
DEIF Controller System | ||||||
Controller | Brand | Smartgen | ||||
Model | HGM6110N | |||||
Function | Auto Mains (Utility) Failure | |||||
Static with auto. battery charger | ||||||
Emergency stop push button | ||||||
ATS & RS485 Connection | ||||||
CAN Functions | ||||||
Diesel Generator Output ranges & Brand Options | ||||||
Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
16kW ~ 600kW | Deutz | Marathon | DEIF | |||
7kW ~ 64kW | Yangdong | Tecgen
| ||||
7kW ~ 76kW | Quanchai | |||||
18kW ~ 3000kW | Weichai | |||||
8kW ~ 800kW | SDEC | |||||
12kW ~ 320kW | FAWDE | |||||
18kW ~ 1200kW | Yuchai | |||||
11kW ~ 104kW | Beinei Aircooled | |||||
7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for residential, commercial, and industrial applications where a reliable and continuous power supply is crucial. Whether it's powering essential home appliances or critical equipment in a factory, this silent generator set is the perfect solution.
Advantages:
Long-lasting Durability: High-quality components and robust construction ensure long-term reliability.
Efficient Fuel Consumption: Optimized engine design for maximum fuel efficiency.
Automatic Protection: Equipped with advanced safety features to protect against overloads and short circuits.
Eco-friendly: Low emissions contribute to a greener environment.
Options:
Customizable Output Configurations: Available in multiple voltage options to meet specific power requirements.
Additional Accessories: Including transfer switches, cables, and other accessories for enhanced functionality.
FAQ:
Q: What is the noise level of this generator set?
A: The silent design ensures minimal noise emission, making it suitable for noise-sensitive environments.Q: How long can the generator run on a full tank of fuel?
A: Depending on the load and operating conditions, the 850L fuel tank can provide extended runtime, reducing the need for frequent refueling.Q: Is the generator set easy to operate?
A: Yes, the user-friendly controls and intuitive interface make it easy to operate and maintain.
