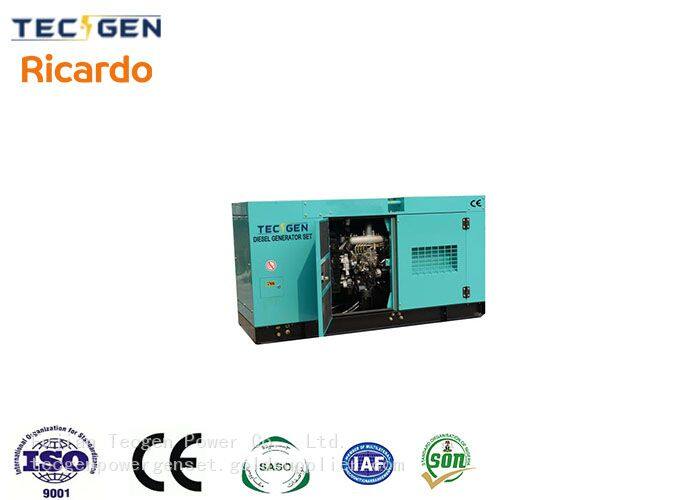

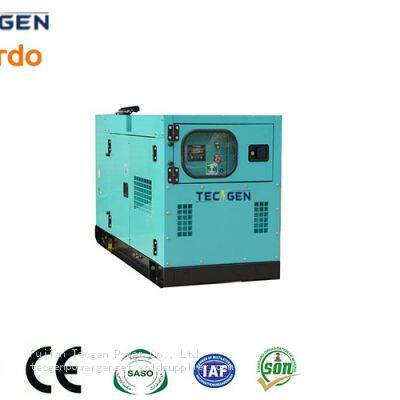

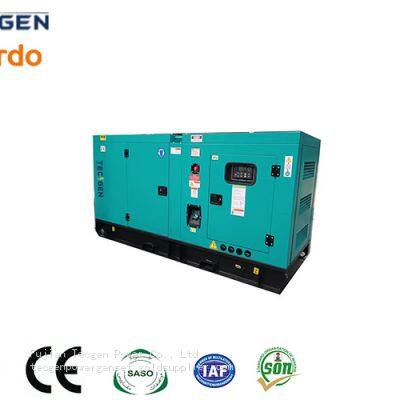

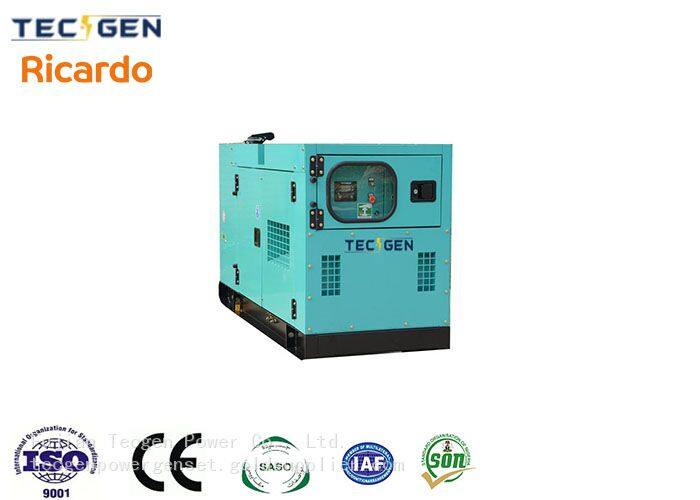

18kVA Ricardo Engine Generator Silent Genset for Back-up Power
Product Overview:
Power Output: 13kW - 300kW
Voltage Options: 480V, 440V, 400V, 220V, 208V, 120V
Frequency: 60Hz
Engine: Perkins, Water-cooled
Alternator: Stamford, Leroysomer, or Tecgen (TGI)
Control Panel: DEIF Controller, CE Certified
Engine Features:
Cooling: Forced Water cooled
Starting Method: MECH OR Electric
Speed: 1,800rpm
Noise Level: 65-75dB(A) at 7m
Alternator Specs:
Rated Output: 7kVA - 1000kVA
Voltage: 480V or Customed
Frequency: 60Hz
Power Factor: 0.8
Phase: 3-phase, 4-wire
Connection: Y or Custom
Excitation: Phase Compound, or Brushless
Voltage Regulation: Automatic, ±1.0% Static
Protection: IP 22 or IP23
Engine Connection: Direct Flywheel Coupling
Control Panel Highlights:
Manufactured by: MEBAY
Controller: MEBAY DC52D
Instrumentation: Standard Engine, Voltmeter, Ammeter, Frequency Meter
Protection: MCCB with Overload & Short Circuit
Options: AMF Control Panel or ATS (Built-in, Box, Cabinet)
Certification: CE Approved
18kVA Ricardo Engine Generator Datasheet | ||||
Ricardo Generator Set |
Genset Type |
Soundproof |
||
Genset Model |
TG18RSD6 |
|||
Prime Output |
13kW / 16kVA |
|||
Max Output |
14kW / 18kVA |
|||
Engine model |
Ricardo 4YT23-20D |
|||
Alternator |
TGI164S13 |
|||
Frequency |
60Hz |
|||
Speed |
1800rpm |
|||
Voltage |
480V |
|||
Output Type |
3 Phase, 4 Wire |
|||
Current |
19.5A |
|||
Controller |
MEBAY DC52D |
|||
ATS |
Built-in ATS / Wall mounted Box |
|||
Breaker |
Aisikai / Delixi |
|||
Battery |
Varta |
|||
Fuel Tank |
8 running Hours |
|||
Demission |
L1900x900x1170mm |
|||
Weight |
600kgs |
|||
Weifang Ricardo Generator set parameters | ||||
Voltage setting range |
≥±10% |
|||
Steady state voltage regulation rate |
≤0.5% |
|||
Transient voltage deviation (100% sudden power reduction) |
≤+17% |
|||
Transient Voltage Deviation (40% Sudden Power) |
≤-6.5% |
|||
Voltage Stability Time (100% Sudden Power Reduction) |
≤2.8S |
|||
Voltage Stability Time (40% Sudden Power) |
≤2.5S |
|||
Frequency adjustment range |
≥±10%Adjustble |
|||
Frequency volatility |
≤±0.25% |
|||
Transient frequency deviation (100% sudden power reduction) |
≤+8% |
|||
Transient frequency deviation (40% sudden power) |
≤-5% |
|||
Frequency Recovery Time (100% Sudden Power Reduction) |
≤1.48S |
|||
Frequency recovery time (40% sudden power) |
≤1.35S |
|||
Weifang Ricardo Diesel Engine Parameters | ||||
Weifang Ricardo Engine 4YT23-20D |
Brand |
Weifang Ricardo |
||
Model |
4YT23-20D |
|||
Prime power |
20kW |
|||
Combustion |
Direct Injection |
|||
No. of Cylinders |
6 Cylinder |
|||
Aspiration |
Natural Aspiration |
|||
Compression Ratio |
18 : 1 |
|||
Speed |
1800rpm |
|||
Displacement |
2.31 |
|||
Bore* Storke |
88mm*95mm |
|||
governor |
Electric |
|||
Start motor |
DC 24V |
|||
Cooling Capacity |
5.5 |
|||
Cooling Type |
Water cooling |
|||
FUEL CONSUMPTION |
225g/kW.h |
|||
AC Brushless Alternator Parameters | ||||
Alternator TGI274S196 |
Brand |
Tecgen |
||
Model |
TGI164S13 |
|||
Rate Output |
13kW |
|||
Rate Speed |
1800rpm |
|||
Frequency |
60Hz |
|||
Altitude |
≤1000 |
|||
Alternator type |
Single bearing, brushless type |
|||
Connection Type |
3 phase, 4 wire |
|||
Protection Grade |
IP23 |
|||
Insulation Class |
H |
|||
Voltage Regulation |
AVR |
|||
Option brand |
Stamford,Leroy Somer,Meccalte |
|||
Ricardo Genset Controller System | ||||
Controller MEBAY DC52D |
Brand |
MEBAY |
||
Model |
DC52D |
|||
Working Voltage |
DC8.0V to DC35.0V, continuous |
|||
Overall Dimensions (mm) |
233*38.5*173 |
|||
Functions |
AMF/ATS |
|||
RS485 & CAN communication | ||||
9 Inlet & 7 Outlet | ||||
PLC & BTN | ||||
Protections |
Under-speed |
|||
Over-speed | ||||
Configurable crank connect | ||||
Battery monitoring | ||||
Charging alternator | ||||
Pre-heat | ||||
Coolant temperature | ||||
Lube oil pressure | ||||
Fuel level detection | ||||
Fuel theft detection | ||||
ECU communication failure | ||||
ECU diagnostic lamp | ||||
Option brand |
DEEPSEA,Smartgen,ComAp |
|||
Optional accessories | ||||
Engine |
Alternator |
Electrical system |
||
Water Heater |
Anti-condensation heater |
Anti-condensation heater |
||
Oil preheater |
PMG |
Unit control screen with three remote functions |
||
Air starting motor |
Parallel |
ATS automatic load transfer screen |
||
Heavy Air Filter for Desert |
Generators of other temperature rise grades |
Full-automatic parallel screen for multiple units |
||
Heavy duty secondary muffler |
RTD temperature sensor, 2 per phase |
Remote control system separate from unit |
||
Fuel system |
Other |
Cooling system |
||
12/24h Base tank |
Super Silent Canopy |
Split water tank |
||
Oil - water separator |
Static sound box generator set |
|
||
Fully automatic oil supply system |
Vehicle-mounted power generation vehicle |
Heat exchanger and external circulation cooling tower |
||
Integrated Fuel Tank |
Towing generator set |
Marine cooling system |
||
Delivery Date of Diesel Generator Set | ||||
Spot goods |
QTY(Set) |
12 – 24 Sets |
24 – 120 Sets |
|
Delivery Time |
7-15 Days |
15 – 25 Days |
||
Custom |
Delivery Time |
20 Days |
20 – 30 Days |
|
Stable & Reliable Power: Weifang Diesel Engine
Low Noise & Vibration: Quiet, smooth operation.
Maintenance-Friendly: Simple, cost-effective maintenance.
Durable & Long-Lasting: Reliable for extended use.
Fuel-Efficient Performance
Advanced Fuel Technology: Up to 95% fuel efficiency.
Cost Savings: Lower fuel costs for you.
Ease of Operation & Maintenance
User-Friendly Design: No technical expertise required.
Safe to Use: Precise operation ensures operator safety.
Comprehensive Maintenance Service
Tailored Solutions: Custom maintenance to meet your needs.
Regular Upkeep: Ensuring safe, reliable operation.
Affordable Pricing
Competitive Rates: Reasonable prices for your budget.
Flexible Quoting: Tailored prices to fit your needs.
