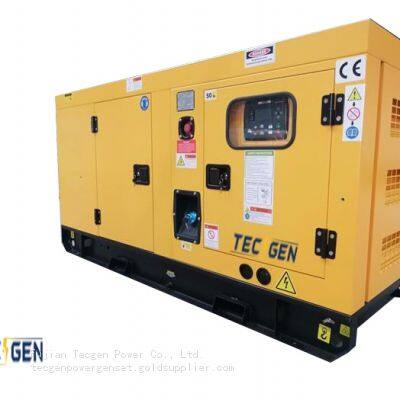

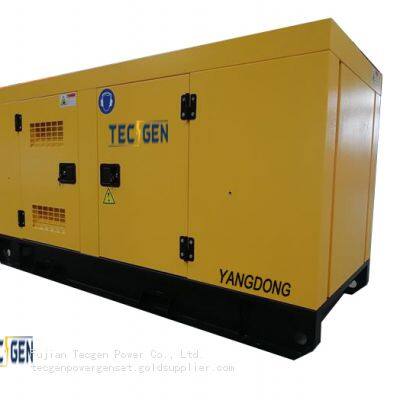

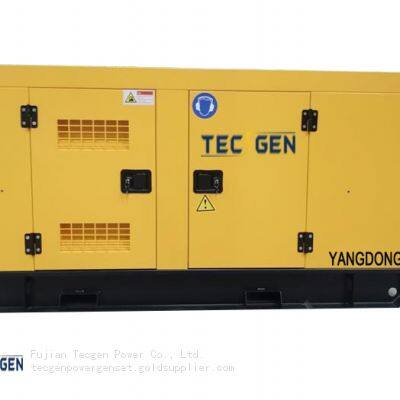

Emergency Use Yangdong Diesel Generator With Stamford/Leroy Somer/Meccalte/Tecgen Alternator
Emergency Use Yangdong Diesel Generator with Stamford/Leroy Somer/Meccalte/Tecgen Alternator
FUJIAN TECGEN POWER CO., LTD. stands as a highly specialized and seasoned manufacturer of diesel generators, brush and brushless alternators, and AC motors. With over 15 years of dedication in this field (since 2006), we are consistently committed to producing diesel generators, brush and brushless alternators, and AC motors of the highest quality, all at competitive prices.
Our comprehensive product range includes:
1. Diesel Engines (Chinese Brands): Up to 1000kW
2. Portable Gasoline Generators: 0.5kW, 1kW, 2.0kW, 2.5kW, 2.7kW, 5.0kW, 6.0kW, 10kW, 13kW.
3. Portable Diesel Generators: 2.0kW, 3.0kW, 5.0kW, 6.0kW, 8kW, 10kW, 13kW, 15kW.
4. Water-cooled diesel generators spanning from 6kVA to 3000kVA.
5. Brush and brushless alternators ranging in power from 1kW to 800kW.
We proudly power our products with renowned engines from Cummins, Ricardo, Deutz, Perkins, FAWDE, Yangdong, ISUZU, Yanmar, SDEC, Weichai, Baudouin, and more.
Here's why you should choose us:
1. Over 15 years of manufacturing expertise, dating back to 2007.
2. Vast experience in handling OEM orders.
3. State-of-the-art production equipment.
4. A dedicated design team that can assist in customizing packaging solutions.
5. Use of genuine materials and meticulous craftsmanship.
As a professional manufacturer specializing in engines and generators, we integrate development, production, and sales. Our factory is located in Fuan City, while our specialized office is situated in Fuzhou, one of the earliest coastal cities to open up.
| YANGDONG Series | ||||||||||||
| Diesel Generator Set Techinical Specification ( 50Hz ) | ||||||||||||
| Genset Model | Genset Prime Power | Genset Standby Power | Engine Model | Engine Max Power | Cylinders | Governor | Alternator Model | Fuel Consumption | Dimension (LxWxH) mm | |||
| KVA | kW | KVA | kW | L/H | Open Type | Silent Type | ||||||
| TG10YD | 9 | 7 | 10 | 8 | YD380D | 11 | 3L | Mechanical | TGI164S7 | 3.1 | 1300x550x1000 | 1700x850x1050 |
| TG11YD | 10 | 8 | 11 | 9 | YD385D | 13 | 3L | Mechanical | TGI164S8 | 3.6 | 1400x550x1000 | 1900x900x1120 |
| TG15YD | 14 | 11 | 15 | 12 | YD480D | 15 | 4L | Mechanical | TGI164S11 | 4.1 | 1400x550x1000 | 1900x900x1120 |
| TG18YD | 16 | 13 | 18 | 14 | YND485D | 19 | 4L | Mechanical | TGI164S13 | 4.9 | 1400x550x1000 | 2100x900x1120 |
| TG21YD | 19 | 15 | 21 | 17 | YND490D | 22 | 4L | Mechanical | TGI184S15 | 5.8 | 1600x650x1000 | 2100x900x1120 |
| TG22YD | 20 | 16 | 22 | 18 | YSD490D | 23 | 4L | Mechanical | TGI184S16 | 6.0 | 1600x650x1000 | 2100x900x1120 |
| TG25YD | 23 | 18 | 25 | 20 | Y490D | 26 | 4L | Mechanical | TGI184S18 | 6.9 | 1600x700x1100 | 2100x900x1180 |
| TG28YD | 25 | 20 | 28 | 22 | Y495D | 30 | 4L | Mechanical | TGI184S20 | 7.6 | 1600x700x1100 | 2100x900x1180 |
| TG28YD | 25 | 20 | 28 | 22 | Y4100D | 33 | 4L | Mechanical | TGI184S24 | 8.4 | 1700x700x1100 | 2280x900x1180 |
| TG34YD | 31 | 25 | 34 | 28 | Y4102D | 36 | 4L | Mechanical | TGI184S25 | 9.1 | 1700x750x1100 | 2280x900x1180 |
| TG41YD | 38 | 30 | 41 | 33 | Y4105D | 42 | 4L | Mechanical | TGI184S30 | 10 | 1750x750x1100 | 2200x950x1200 |
| TG44YD | 40 | 32 | 44 | 35 | Y4102ZD | 44 | 4L | Mechanical | TGI184S32 | 11 | 1850x750x1100 | 2250x1000x1250 |
| TG52YD | 48 | 38 | 52 | 42 | Y4102ZLD | 53 | 4L | Mechanical | TGI224S36 | 13 | 1850x750x1100 | 2250x1000x1250 |
| TG55YD | 50 | 40 | 55 | 44 | Y4105ZLD | 61 | 4L | Electrical | TGI224S40 | 14 | 1850x750x1100 | 2300x1000x1300 |
| TG69YD | 63 | 50 | 69 | 55 | YD4EZLD | 69 | 4L | Electrical | TGI224S50 | 16 | 1900x750x1100 | 2400x1000x1300 |
| TG83YD | 75 | 60 | 83 | 66 | Y4110ZLD | 88 | 4L | Electrical | TGI224S60 | 21 | 2000x900x1200 | 2500x1100x1300 |
We cordially invite all partners to join us in a distributorship collaboration.
Δ TESTING PARAMETERS
TECGEM POWER offers an extensive range of brand-new, premium-quality products.
Each unit undergoes rigorous factory testing before dispatch.
Component malfunction detection
Fuel tank pressure evaluation
Bolt tightening torque assessment
Paint coating thickness analysis
Voltage endurance and insulation testing
Noise level measurement
Loading Test: Comprehensive testing at 25%, 50%, 75%, 100%, and 110% load to validate all control systems, alarms, and shutdown safeguards.
Δ ADDITIONAL OFFERINGS
Weather-resistant enclosure / Sound-insulated canopy / Trailer-mounted units
Engine / Alternator Pre-heaters
Automatic load distribution & synchronization panel
Built-in ATS (Automatic Start & Stop for Main Failure (AMF))
Wall-mounted ATS Box or ATS Cabinet
Extended 12/24-hour fuel tank
Integrated Fuel Tank
Power output sockets
Fuel-Water Separator
Remote Control capabilities
Warranty Terms:
The products are warranted against material and workmanship defects for a duration of 18 months or 1500 operating hours, whichever occurs first, from the date of delivery to the end user. Exceptions apply to replaceable parts of diesel generators damaged due to improper human operation. The aforementioned warranty is further supported by the engine and alternator suppliers.
