Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type

Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type

Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type thumbnail-3

Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type thumbnail-4

Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type photo-1

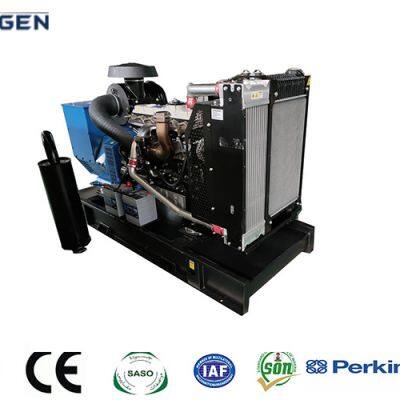

Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type photo-2

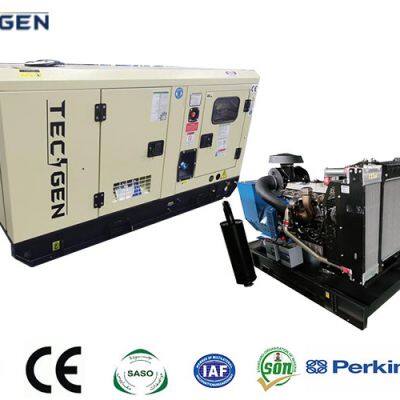

Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type photo-3

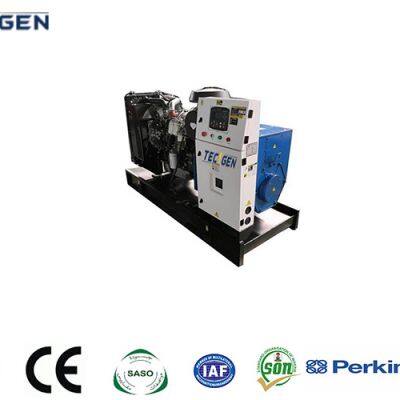

Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type photo-4

US$ 5000 - 7000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Self-Starting Diesel Generator

Warranty:

1500hours

Stroke:

Four Stroke

Contact Supplier Request Quote Chat Now

Fujian Tecgen Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

15 days

Product Details
Company Profile
Contact Us

Type Self-Starting Diesel Generator

Warranty 1500hours

Stroke Four Stroke

Usage Common Units, Standby Unit, Emergency Crew

Speed Speed

Cooling Method Water Cooling

Installation Method Fixed

Excitation Mode AC Rotating Exciter

Conditions of Use Land Use

Landuse Type of Unit Low Noise Automation Type

Output Type AC Three Phase

Model TG58PSD6

Frequency 60Hz

Voltage 440V//415V/400V/380V/230V/220V/110V

Prime Output 42kW / 53kVA

Standby Output 46kW / 58kVA

Engine Model Perkins 1103A-33TG1

Alternator Model Leroy Somer TAL-A42-F

Transport Package FCL

Trademark TECGEN

Origin CHINA

Product Description: Perkins Diesel Generator Set - TG58PSD6 Standard Features: • Model: TG58PSD6, a silent type generator set designed for optimal performance and minimal noise output. • Voltage options: 440V, 415V, 400V, 380V, 230V, 220V, and 110V to cater to various power requirements. • Operating frequency: 60Hz, ensuring stable power output. • Engine speed: 1800rpm, maintaining efficient and reliable operation. • Power factor: 0.8, optimizing the generator's efficiency.

Key Features: • Perkins diesel engine: Reliable and durable, providing long-lasting power. • Leroy Somer alternator: High-quality alternator ensures stable and efficient power output. • DEIF controller: Automatic main failure detection and advanced control functions for seamless operation. • Silent design: Reduces noise levels, making it suitable for a wide range of applications.

Datasheets of Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type

Soundproof Perkins Generator Set Technical Datasheets
Genset model				TG58PSD6
Genset Type				Silent
Rate Voltage				440V//415V/400V/380V/230V/220V/110V
Frequency				60Hz
Speed				1800rpm
P.F(COS)				P.F. 0.8
Prime Output Current				69.5A
Prime Power				42kW / 53kVA
Standby Power				46kW / 58kVA
Engine			Brand	Perkins
			Model	1103A-33TG1
Alternator			Brand	Leroy Somer
			Model	TAL-A42-F
Controller			Brand	DEIF
			Model	SGC-420
Genset Weight				1300kgs
Genset Dimensions				L2250 * W 1050 * 1300
Perkins Diesel Engine Data
Brand				Perkins
Engine Model				1103A-33TG1
Number of Cylinders				3 Cylinder in Line
Cycle				4-troke
Aspiration				Turbocharged
Displacement				3.3L
Compression ratio				17.25:1
Bore×Stroke				105*127mm
Speed				1800rpm
Prime Power				50.5kW
Standby Power				55.6kW
Speed Governor				Electrical
Cooling System				Forced water cooling cycle
Starting system				DC Motor
Fuel Consumption at 100% Load				210g/kwh@1800rpm
Leroy Somer Alternator Data
Brand				Leroy Somer
Model				TAL-A42-F
Frequency/speed				60HZ/1800RPM
Rate Output				42kw
No. of Phase				3 Phase, 4 Wire or 12 Wire
Exciter type				Single bearing, Brushless, Self-excited with AVR
Power factor				0.8
Insulation Grade				H
Protection Grade				IP23
Working Condition				Below 1000m
Bearing				Single
Coupling				Direct
Voltage adjust range				≥5%
Voltage regulation NL-FL				≤±1%
DEIF Controller System
Controller	Brand			DEIF
	Model			SGC-420
	Function			Auto Mains (Utility) Failure
				Static with auto. battery charger
				Emergency stop push button
				ATS & RS485 Connection
				CAN Functions
Diesel Generator Output ranges & Brand Options
Prime Power (kW)		Diesel Engine		AC Alternator	Controller	Type
17kW ~ 1260kW		Cummins		Leroy Somer	DEIF	Open/Silent
10kW ~ 300kW		Weifang Ricardo		Tecgen	Mebay
16kW ~ 600kW		Deutz		Marathon	DEIF
7kW ~ 64kW		Yangdong		Tecgen
7kW ~ 76kW		Quanchai
18kW ~ 3000kW		Weichai
8kW ~ 800kW		SDEC
12kW ~ 320kW		FAWDE
18kW ~ 1200kW		Yuchai
11kW ~ 104kW		Beinei Aircooled
7kW ~ 1800kW		Perkins		Stamford	DEEPSEA
6.8kW ~ 2000kW		Caterpillar		Caterpillar	Caterpillar
6.8kW ~ 2000kW		FG Wilson		FG Wilson	FG Wilson
17kW ~ 30kW		Isuzu		Mecc Alte	ComAp
210kW ~ 818kW		VMAN		Tecgen	Tecegn
6kW ~ 2000kW		Chinese Engines			Smartgen

Usage:

The Perkins diesel generator set is suitable for a variety of applications, including industrial, commercial, and residential use. It can be used as a primary or standby power source to ensure uninterrupted power supply in case of power outages or failures.

Advantages:

High power output: Up to 42kW prime power and 46kW standby power, satisfying most power needs.
Turbocharged engine: Delivers maximum performance and efficiency.
Forced water cooling system: Ensures optimal engine temperature for longer lifespan.
Easy to maintain: User-friendly design and access to critical components make maintenance a breeze.

Options:

Customers can choose from a range of options, including different voltage configurations, additional protection features, and customization options to suit their specific needs.

FAQ:

Q: What is the warranty period for the Perkins diesel generator set?
A: The warranty period depends on the specific agreement and can be negotiated with our sales team.
Q: Is it possible to customize the generator set to meet my specific requirements?
A: Yes, we offer customization options to suit your unique needs. Please contact our sales team for more details.
Q: How noisy is the silent type generator set?
A: The silent design significantly reduces noise levels, making it suitable for most environments. Exact noise levels can be provided upon request.
