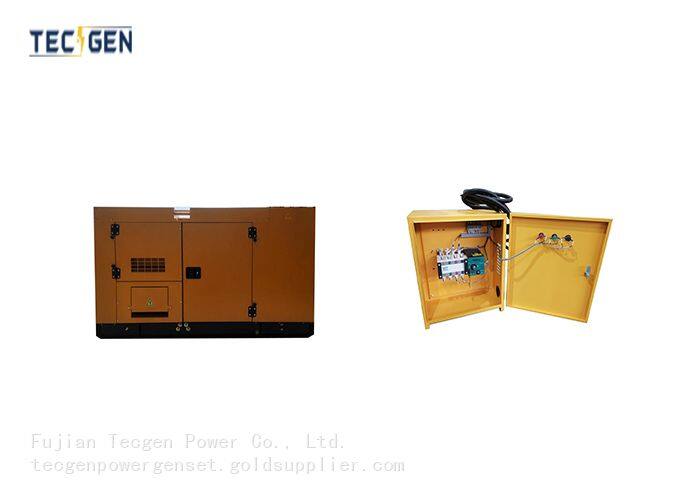

60Hz Diesel Generators 16kVA Yangdong Silent Genset for Backup Power
- Fuzhou
- T/T L/C Money Gram PayPal D/P Western Union Other
- 20 days
You May Like
-
60Hz Diesel Generator Set 23kVA Yangdong Diesel Genset With Soundproof Canopy
-
60Hz Diesel Power Genset 20kW Yangdong Diesel Generator With Soundproof Canopy for Hotel Power
-
26kVA Silent Diesel Generator Yangdong Diesel Generator With Three Phase Output
-
Silent Type Diesel Generator 40kW / 50kVA Yandgong Diesel Genset for Rental
-
Silent 63kVA Diesel Power Generator Yangdong Diesel Genset With ATS for Emergency Use
-
60kW Chinese Diesel Engine Generator Yandgong Silent Generator for Home Use
Product Details
| Type | Self-Starting Diesel Generator | Warranty | 1500hours | |
| Stroke | Four Stroke | Usage | Common Units, Emergency Crew | |
| Speed | Speed | Cooling Method | Water Cooling | |
| Installation Method | Fixed | Excitation Mode | AC Rotating Exciter | |
| Conditions of Use | Land Use | Landuse Type of Unit | Low Noise Automation Type | |
| Output Type | AC Three Phase | Model | TG18YDSD6 | |
| Voltage | 440V//415V/400V/380V/230V/220V/110V | Frequency | 60Hz | |
| Prime power | 13kW / 16kVA | Max power | 14kW / 18kVA | |
| Engine Brand | YANGDONG | Engine model | YD480D | |
| Alternator Model | TGI164S13 | Controller | Smartgen HGM6110N | |
| Canopy Color | Customed | Transport Package | FCL | |
| Trademark | TECGEN | Origin | CHINA |
Product Description

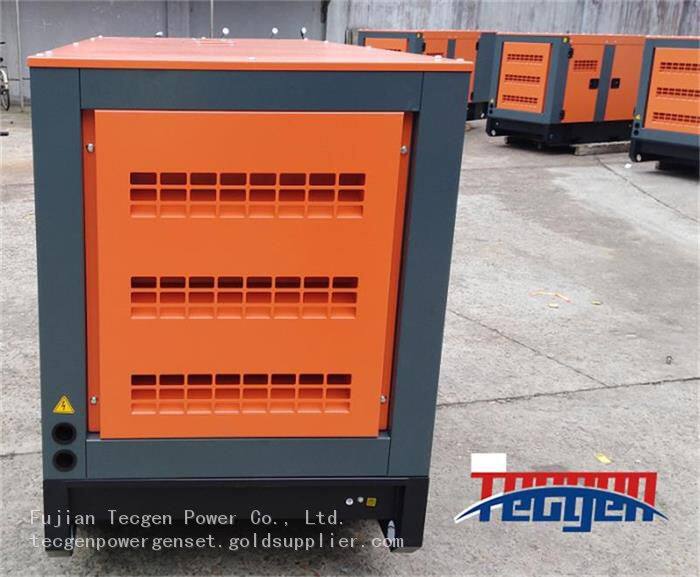

60Hz Diesel Generators 16kVA Yangdong Silent Genset for Backup Power
Product Description for 60Hz Diesel Generators
Key Features:
60Hz Stable Frequency: Ensures smooth and reliable power output for sensitive equipment.
Yangdong Genset: High-performance diesel engine for exceptional durability and efficiency.
Silent Operation: Low noise design ideal for noise-sensitive environments.
AC Three-Phase Output: Perfect for balanced power supply in industrial and commercial settings.
Standard Features:
Rated Voltage Options: 440V, 415V, 400V, 380V, 230V, 220V, 110V to cater to diverse power needs.
1800rpm Operating Speed: Ensures optimal power generation and engine longevity.
Automatic Voltage Regulation: Maintains stable voltage output under varying loads.
Easy-to-Use Control Panel: User-friendly interface for seamless operation and monitoring.
60Hz Diesel Generator Technical Datasheets | ||||||
Genset model | TG18YDSD6 | |||||
Genset Type | Silent | |||||
Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
Frequency | 60Hz | |||||
Speed | 1800rpm | |||||
Output Type | AC Three Phase | |||||
P.F(COS) | P.F. 0.8 | |||||
Prime Output Current | 19.2A | |||||
Prime Power | 13kW / 16kVA | |||||
Standby Power | 14kW / 18kVA | |||||
Diesel Engine | Brand | Yangdong | ||||
Model | YD480D | |||||
AC Alternator | Brand | Tecgen Power | ||||
Model | TGI164S13 | |||||
Genset Controller | Brand | Smartgen | ||||
Model | HGM6110N | |||||
Genset Weight | 755kgs | |||||
Genset Dimensions | L2100 * W 900 * 1000 | |||||
Fuel Tank Capacity | 10 running hours | |||||
Yangdong Diesel Engine Data | ||||||
Brand | Yangdong | |||||
Engine Model | YD480D | |||||
Number of Cylinders | 4 Cylinder in Line | |||||
Cycle | 4-troke | |||||
Aspiration | Natural Aspiration | |||||
Displacement | 1.809L | |||||
Compression ratio | 18:1 | |||||
Bore×Stroke | 80*90mm | |||||
Speed | 1800rpm | |||||
Prime Power | 16kW | |||||
Standby Power | 18kW | |||||
Speed Governor | MECH or Electrical | |||||
Cooling System | Forced water cooling cycle | |||||
Starting system | DC Motor | |||||
Fuel Consumption at 100% Load | 250g/kwh@1800rpm | |||||
AC Alternator Data | ||||||
Brand | Tecgen Power | |||||
Model | TGI164S13 | |||||
Frequency/speed | 50HZ/1800RPM | |||||
Rate Output | 13kW | |||||
No. of Phase | 3 Phase, 4 Wire | |||||
Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
Power factor | 0.8 | |||||
Insulation Grade | H | |||||
Protection Grade | IP23 | |||||
Working Condition | Below 1000m | |||||
Bearing | Single | |||||
Coupling | Direct | |||||
Voltage adjust range | ≥5% | |||||
Voltage regulation NL-FL | ≤±1% | |||||
Genset Controller System | ||||||
Controller System | Brand | Smargen | ||||
Model | HGM6110N | |||||
Functions | Auto Mains (Utility) Failure | |||||
Static with auto. battery charger | ||||||
Emergency stop push button | ||||||
ATS & RS485 Connection | ||||||
CAN Functions | ||||||
Diesel Generator Set Output ranges & Brand Options | ||||||
Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin | Leroy Somer / Stamford / Mecc Alte / Tecgen
| DEIF | Open/Silent | ||
7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for power backup in hospitals, hotels, factories, and other critical facilities.
Can be used as a primary power source in remote locations or construction sites.
Options:
Available in both open and silent enclosure configurations.
Customizable power ratings to meet specific project requirements.
Warranty:
18 months or 1500 hours, whichever comes first, to ensure peace of mind and continued performance.
FAQ:
Q: What is the fuel tank capacity of the generator?
A: The fuel tank capacity is sufficient for 10 running hours, ensuring uninterrupted power supply.
Q: What is the power factor of the generator?
A: The power factor is 0.8, providing efficient and balanced power output.
Q: Is the generator easy to maintain?
A: Yes, the modular design allows for easy access and maintenance of all components.
With its reliable performance, efficient fuel consumption, and user-friendly controls, our 60Hz Diesel Generators with Yangdong Genset are the perfect choice for your power generation needs. Contact us today for more information and to discuss your specific requirements.
