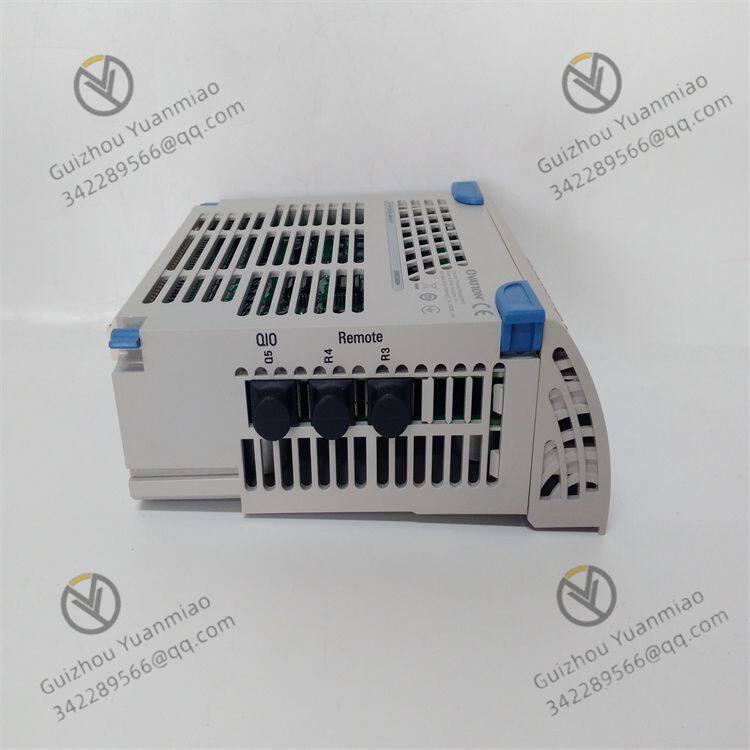

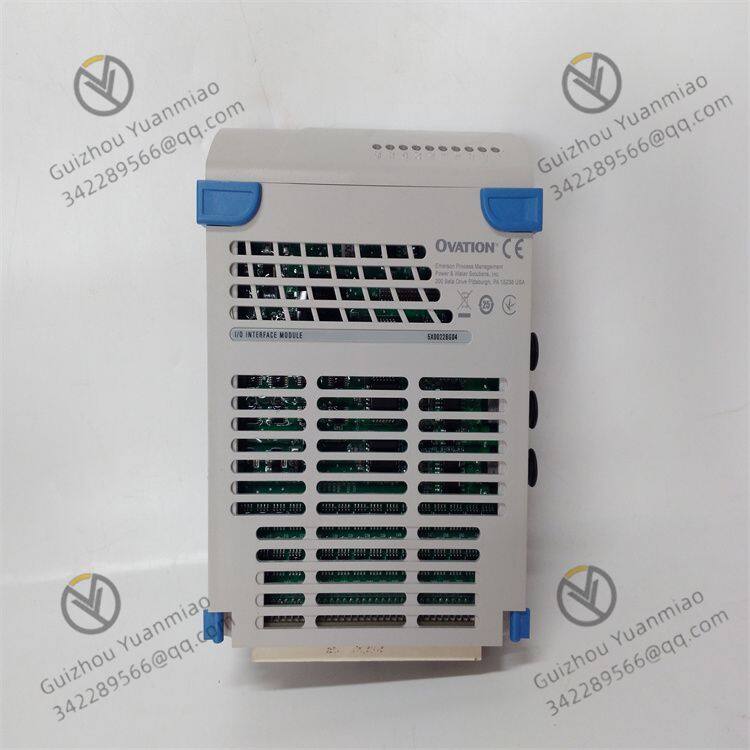

Emerson 5X00226G04 Controller Module

Emerson 5X00226G04 controller module

Electrical parameters:

Input circuit: Supports drain type input (NPN transistor, collector open form) and source type input (PNP transistor, collector open form). The input circuit is isolated by an optocoupler, and the minimum load is DC5V 2mA.

External power supply: DC30V or less, AC240V or less (AC250V or less when not in compliance with CEUL and CUL standards).

Maximum load: The resistive load is 2A/1 point. In terms of the load current at each common terminal, the total output at 1 point is 2A, the total output at 4 points is 8A, and the total output at 8 points is also 8A. The inductive load is AC220V 80VA.

Response time: OFF->ON is approximately 10ms, and ON->OFF is also approximately 10ms.

Physical and environmental parameters:

Connection method: Non-detachable terminal blocks are used for physical connection of input/output.

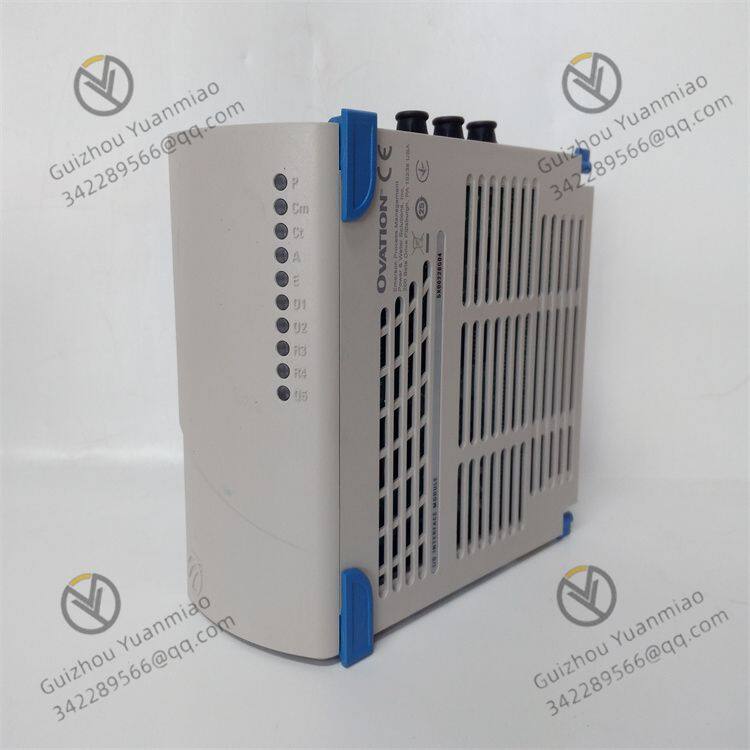

Status indication: When the optocoupler is driven or the relay coil is energized, the LED light on the panel lights up, facilitating the inspection of the module's working status.

Operating temperature: It is usually -10 ℃ to + 55℃, and there is also a saying of -40 ℃ to 80℃.

Storage temperature: -40℃ to 70℃.

Relative humidity: 5% to 95% RH, no condensation.

Performance characteristics:

Wide measurement range: Supports multiple input ranges such as 4-20mA and 0-10V, which can adapt to different types of analog signals and meet various application requirements.

High precision: It can accurately measure and record analog signals such as current and voltage, and is suitable for scenarios with high precision requirements.

Good electrical isolation: Good electrical isolation can reduce signal interference and protect the control system from electrical noise and faults.

Self-diagnostic function: It is equipped with self-diagnostic and fault detection functions, which can monitor the module status in real time, provide fault alarm and diagnostic information, and facilitate users to quickly troubleshoot problems.

Communication interface standard: Supports industrial communication protocols such as Ethernet/IP and Modbus, facilitating communication with the main control system and other devices.

Modular design: Supports hot plugging, allowing for replacement or maintenance without interrupting system operation, and is convenient for integration with other control modules.

Application field:

In the field of power: It can be used in power plants and substations as a core protection device to ensure the safe operation of power generation and transmission equipment. It can also provide protection against overload and short circuit for the motor, and monitor parameters such as voltage, current and power in real time, providing data support for the optimization of the power system.

In the field of industrial automation: It can be used in hydraulic and pneumatic control systems, internal combustion engines and engine control, etc., to achieve precise control of analog quantities such as temperature, pressure and flow in industrial processes. It can also be used in metal-cutting machine tools, robots and other equipment to control circular or linear motion. It can also be applied to single machines such as injection molding machines and printing machines, or to multi-machine group control and automated assembly lines to achieve logical control of switch quantities.

In the field of construction: It can be used in the power distribution systems of industrial and civil buildings to protect and control them, enhance the reliability of power supply, and ensure the normal operation of electrical equipment in various buildings.

In the field of oil and gas: This module can adapt to harsh industrial environments and provide reliable power support for oil and gas field facilities, ensuring the stable operation of equipment in oil and gas extraction, transportation and other links.

In the fields of chemical engineering and metallurgy: The production processes in these industries are complex and have high requirements for power distribution systems. The 5X00226G04 module can integrate multiple protection and control functions, meeting the complex demands of medium-voltage power distribution systems and ensuring the safety and stability of the production process.
