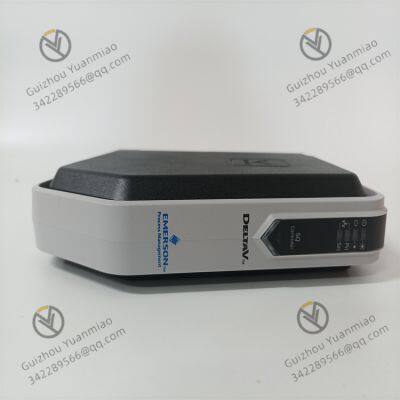

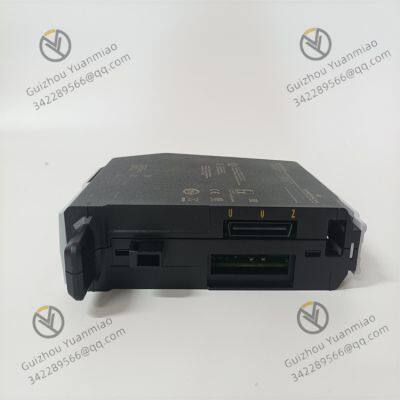

Emerson SE3008 SQ Controller Module

Emerson SE3008 SQ controller module

Functional characteristics

Industrial-grade high reliability: Utilizing industrial-grade materials and components, it can adapt to temperature environments ranging from -40 ℃ to 70℃, as well as harsh industrial conditions such as humidity and vibration. It features strong stability and can ensure long-term trouble-free operation.

Rich communication interfaces: It provides multiple communication interfaces such as serial port and Ethernet, supports multiple protocols such as Modbus and Profibus, and can be seamlessly connected with different devices, facilitating data communication and system integration.

Strong scalability: Adopting a modular design concept, users can select appropriate modules for combination based on their actual needs to achieve customized functions and configurations, facilitating system expansion and upgrade.

Easy installation and configuration: The hardware design is optimized. The bracket can be inserted into the standard DIN rail, and the IO card can be directly inserted into place without screws, accelerating the assembly of the cabinet. The controller configuration is simple. After being connected to the DeltaV network, it can be automatically perceived from DeltaV Explorer, and the components can automatically address and communicate.

Support for redundant architecture: It supports 1:1 redundancy. When one controller fails, the other can immediately take over the work, ensuring the continuous and stable operation of the system and reducing downtime caused by faults.

Flexible programming and control: By using IEC-61131 programming technology, control strategies can be developed through function blocks, sequential function diagrams and structured text. The control execution can be set to match the process dynamics. The controller scheduling is automatically adjusted. Any parameter can also be referenced by the module name, without being restricted by its position in the system.

Equipped with automatic diagnosis function: The automatic diagnosis and event reporting of timestamps applied in the controller help to quickly locate and solve problems that occur during the system operation. It also supports automatic detection of hardware redundancy, with zero configuration workload.

Clock synchronization function: With a synchronized system clock, it can perform consistent time-based event-driven operations throughout the system, ensuring the coordination and accuracy of system operation.

Application scenarios

Steel industry: It can be used for the control of parameters such as temperature, pressure and flow rate in the steel production process, such as the precise regulation of furnace temperature in the blast furnace ironmaking process, and the control of rolling speed and pressure in the steel rolling process, to ensure the stability of steel quality.

Power industry: It is an automatic control system suitable for power plants, which can monitor and control equipment such as generators and steam turbines, achieving stable operation and efficient management of the power generation process. It can also be used in distribution automation systems to optimize power distribution.

In the cement industry, on the cement production line, the proportion of raw materials, the temperature of the kiln, the packaging of cement products and other links can be controlled to ensure that the quality of cement products meets the standards, improve production efficiency and reduce energy consumption.

In the chemical industry, it can be applied to the temperature and pressure control of chemical reaction vessels, as well as the flow control of chemical materials, ensuring the safety and stability of the chemical production process. It can also be used to monitor various dangerous gases and liquids in the chemical production process, promptly detect abnormalities and take measures.

Papermaking industry: It can achieve speed and tension control of paper machines, as well as adjustment of parameters such as pulp concentration and moisture during the paper production process, improving paper quality and production efficiency. At the same time, it can also be used in the wastewater treatment system of paper mills to monitor and control water quality parameters.

In the field of CNC machine tools: It can precisely control the coordinate axis movement of the machine tool, achieve high-precision cutting processing, and also automatically control the tool change, cooling and lubrication system, etc. of the machine tool, improving processing accuracy and production efficiency.
