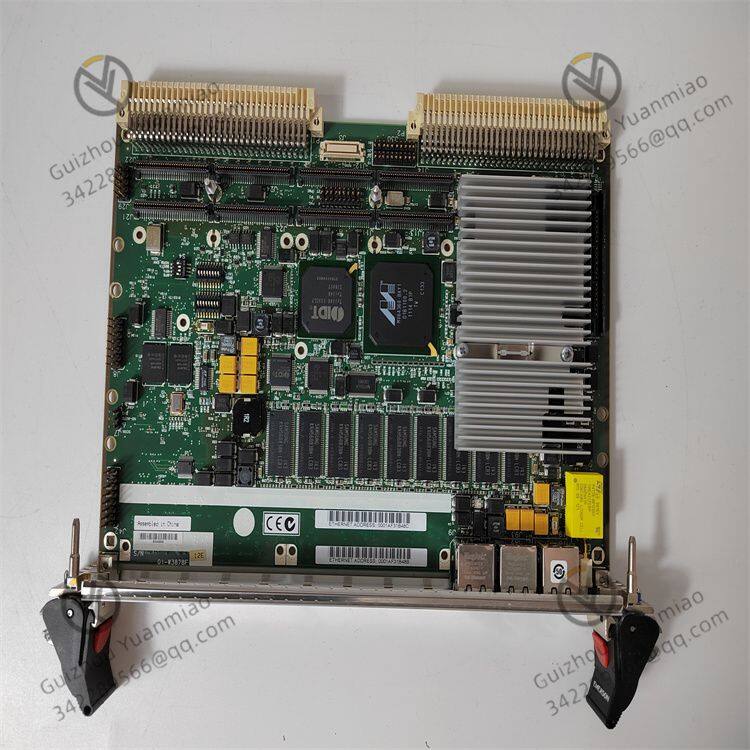

Emerson MVME61006E-0163 High-performance Embedded Module

Advantages and characteristics

Powerful computing power It adopts the MPC7457 PowerPC processor with a main frequency of 1.267GHz, equipped with a 128-bit AltiVec coprocessor, suitable for applications such as vector processing. It also features a 512KB on-chip L2 cache and a 2MB L3 cache, capable of efficiently handling complex tasks and data-intensive applications.

High-speed data transmission: Equipped with dual gigabit Ethernet interfaces, it supports 10/100/1000Mbps rates, enabling rapid network data transmission and meeting the demands of scenarios with high requirements for data transmission speed.

Rich communication interfaces: Equipped with multiple I/O interfaces, including serial ports, USB, VME bus, etc., it can be conveniently connected to various external devices, meeting the communication and data interaction requirements between different devices and facilitating system integration.

High reliability design: With a protection level of IP65, it has dust-proof and water-proof capabilities. The operating temperature range is from -40 °C to + 85°C, and it supports a dual power supply design. The input voltage range is + 5V DC. It can operate stably in harsh industrial environments and adapt to different industrial site environments.

Memory and storage advantages: Equipped with DDR ECC RAM, starting from 512MB and supporting up to 2GB, it can ensure the efficiency of data storage and processing during the system operation. Meanwhile, 128MB of Flash can be used to store system programs and important data.

Good compatibility: It has backward compatibility with existing VME products and can work with existing VMEbus backplanes and boards. Oems can extend the lifespan and performance of existing designs without sacrificing existing key resources, protecting software and hardware investments.

Modular design: It offers a modular design, which is convenient for users to expand and customize according to their actual needs. By adding relevant modules, different functional requirements can be met, increasing the flexibility of use.

Support for real-time operating systems: Supports the VxWorks real-time operating system, which features strong real-time performance, high reliability, and scalability, and can well adapt to the real-time control requirements and complex environments of industrial sites.

Application scenarios

Industrial automation: It can be used for production line control and production process monitoring in factory automation, and also participate in robot control to achieve precise control and real-time monitoring of robot movements. It can also be used for process monitoring to conduct real-time monitoring and control of various parameters in industrial production.

Power industry: It can be applied to power monitoring and management systems to conduct real-time monitoring of the operating status of power equipment, ensuring the stable operation of the power system, such as monitoring the operating parameters of generators, transformers and other equipment, and promptly identifying potential faults.

Aerospace: It is applicable to aircraft control systems, providing computing support for aircraft attitude control, navigation, etc., and can also be used in avionics to process various sensor data and communication signals.

Medical imaging: It can be used for image data processing in medical imaging devices such as CT and MRI, helping to improve image resolution and processing speed, and providing doctors with more accurate diagnostic basis.

Transportation: It can be used for intelligent traffic signal control, adjusting the duration of traffic lights in real time according to traffic flow to optimize traffic efficiency. It can also participate in signal processing and data communication tasks in other transportation systems.

Chemical industry: It can be used for the automatic control of chemical production processes, precisely controlling parameters such as temperature, pressure and flow rate in chemical production to ensure the safety and stability of the production process.

The oil and gas industry: It can be used for signal collection and processing in oil and gas fields, such as monitoring parameters like pressure and production of oil Wells, providing data support for oil and gas extraction. It can also be used for monitoring during pipeline transportation.

Water treatment industry: It can achieve analog signal measurement and control, monitor and control water quality parameters, water level, flow rate, etc. during the water treatment process, and ensure the normal operation of the water treatment system.
