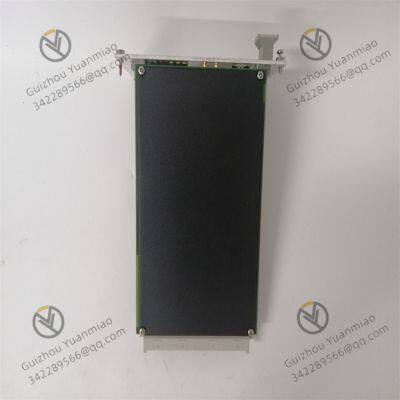

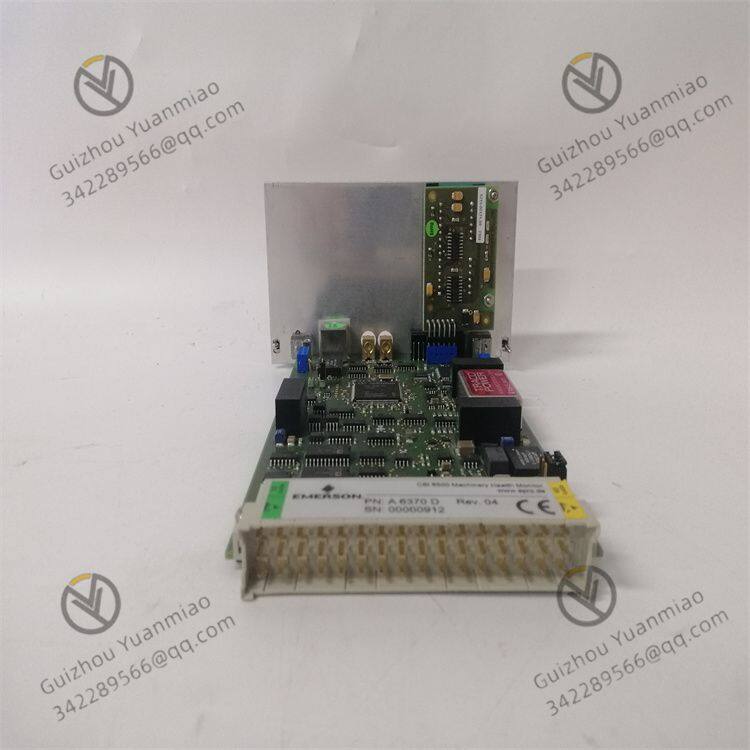

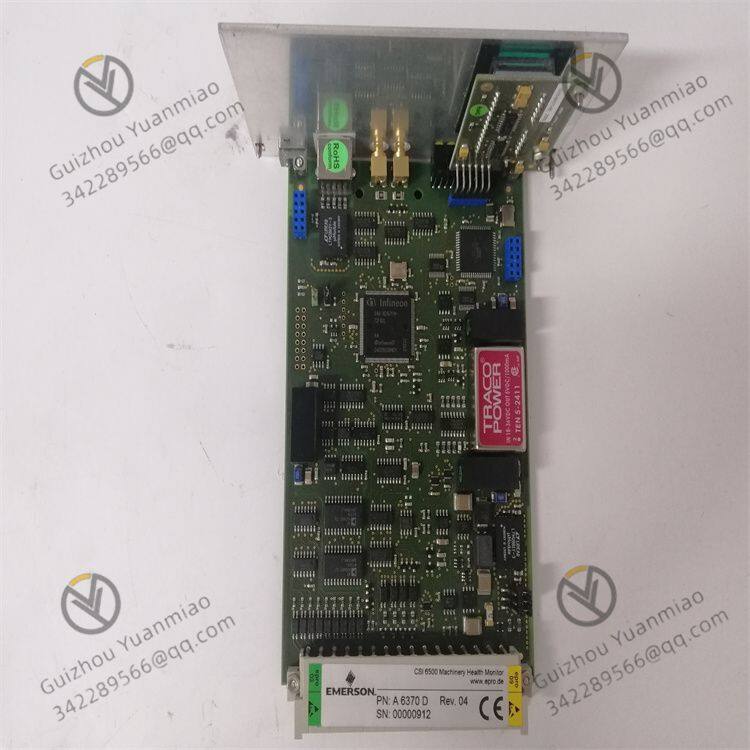

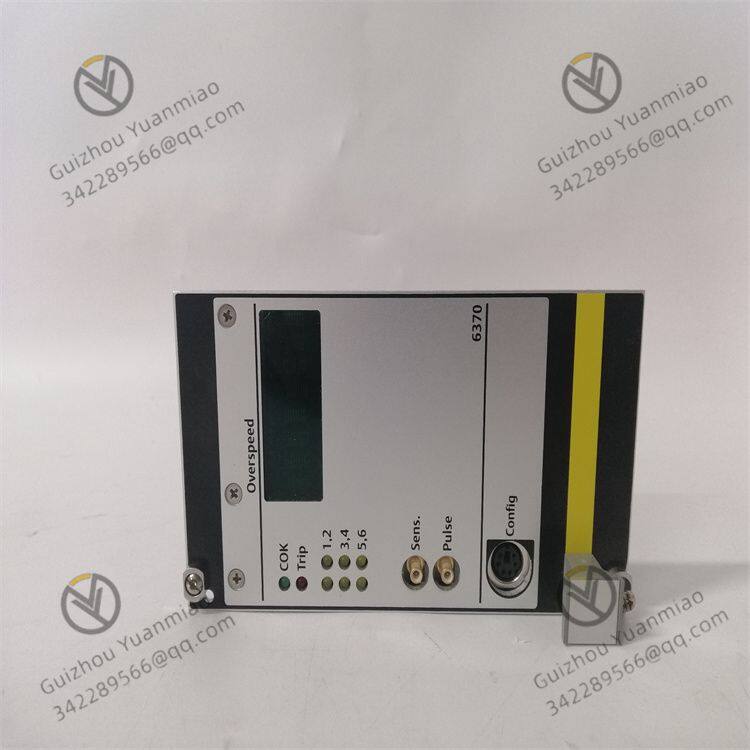

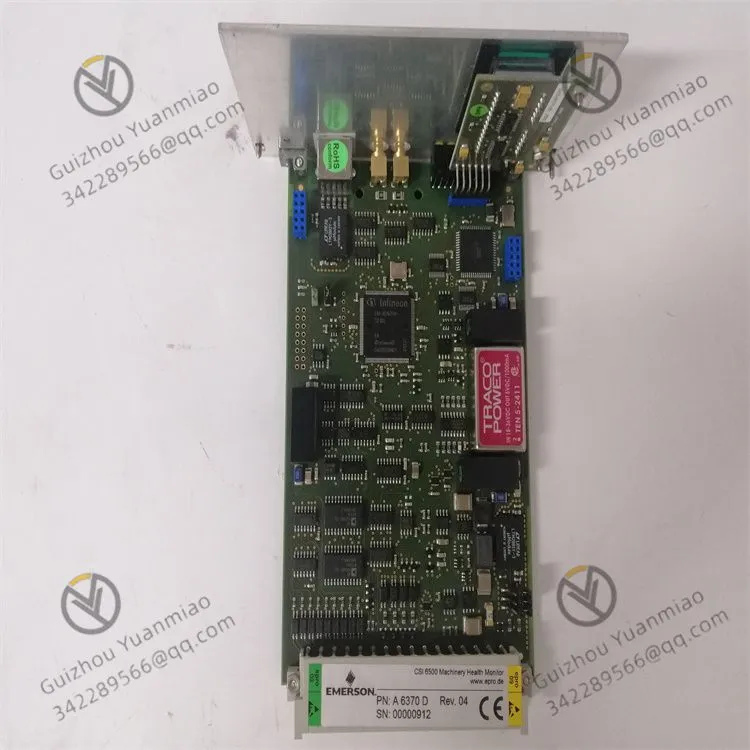

A6370D Emerson Digital Expansion Module

Working principle

Digital input principle: The module is equipped with multiple digital input channels and can be connected to various digital sensors, such as proximity switches, limit switches, etc. When the state of the sensor changes, corresponding electrical signals will be generated, such as high or low levels. These signals are transmitted to the signal processing circuit inside the module through the input channel. The module performs filtering, amplification and other processing on them to remove interference and ensure the accuracy of the signals. Then, the processed signals are converted into digital signals that can be recognized by the internal circuit of the module for subsequent processing.

The principle of digital output: The module determines the state of the digital signal to be output based on the internal program or the received control instructions. These signals are amplified and processed by the internal drive circuit to have sufficient driving capacity. Then, they are transmitted to external actuating devices such as relays and solenoid valves through digital output channels, thereby controlling the start, stop, switch and other actions of these devices to achieve the control of industrial processes.

Signal processing and logical operations: The module usually integrates a microprocessor or logic circuit inside, which can process and analyze the input digital signals. It can perform operations on multiple input signals based on preset logical relationships (such as AND, OR, not and other logical operations), and then determine the state of the output signal according to the operation results. For example, when the input signals of multiple limit switches meet specific logical conditions, the module output signal controls the motor to stop running.

Communication principle: This module supports multiple communication protocols, such as Profibus, Canbus, Rs-485, etc., and can be connected to the main control devices such as PLC and DCS through the corresponding communication interfaces. The module transmits the collected digital input signal data to the main control device through the communication interface, and the main control device can conduct overall system monitoring and decision-making based on these data. Meanwhile, the main control device can also send control instructions to the module through the communication interface. The module receives and executes these instructions to achieve the control of the output channel.

Power supply principle: The module requires external power supply and usually supports a wide voltage input range. The power supply circuit converts and stabilizes the external input power supply, providing a stable DC power supply for various circuit units inside the module, such as signal processing circuits, microprocessors, and drive circuits, to ensure the normal operation of the module.

Performance parameters

Function and application: Mainly used to expand the number of digital input and output channels, it can receive digital input signals, such as switch status or sensor status, and at the same time control digital output signals to perform various control and monitoring tasks, such as controlling valves, actuators or indicator lights, etc.

Applicable systems: It is often used in conjunction with industrial control systems, PLCS (Programmable Logic Controllers), or DCS (Distributed Control Systems) to expand system functions and meet various monitoring and control requirements.

Features and advantages: It adopts a modular design, which is convenient for users to configure and expand according to their actual needs. It has powerful programmable functions. Users can program in programming languages such as C, C++ or Python to achieve various complex logical and control functions. It has excellent real-time performance, capable of responding quickly to input signals and controlling output signals in real time, which helps ensure the stability and reliability of the system. Moreover, it adopts a standardized design, making maintenance and upgrade simple and convenient.

Input channels: The backplane provides 4 digital input channels and has electrical isolation function.

Output channels: The backplane provides two current output channels, with a range of 0/4 to 20mA or 20 to 4/0mA, and an accuracy of ±1% of the full scale.

Protection level: According to the IEC 60529 standard, the protection level when the rack is installed is IP20.

Operating temperature: -20°C to + 65°C.

Storage temperature: -40°C to + 70°C.

Application field

Industrial automation: In manufacturing, it can be used to control various equipment on the production line, such as the start and stop of conveyor belts and the movement of mechanical arms, to achieve the automation of the production process. It can also be connected to sensors to monitor the operating status of the equipment and provide real-time feedback to the control system to ensure the normal progress of production.

Energy field: It can be used in power plants to monitor the operating status of generators, control excitation systems, etc., to ensure stable power production. In power transmission and distribution systems, it can monitor parameters such as switch status, line current and voltage, and achieve automatic control and fault early warning of power transmission.

Process control: In industries such as chemical engineering, petroleum, and natural gas, it is used to monitor and regulate various parameters during the production process, such as temperature, pressure, and flow rate. By controlling valves, pumps and other equipment, it is ensured that the production process proceeds in accordance with the set technological requirements, guaranteeing product quality and production safety.

Building automation: It can be used in large buildings to control the lighting system, automatically adjusting the brightness and on/off of the lights according to the ambient light and time. It can also be used in HVAC systems to monitor parameters such as indoor temperature and humidity, control the operation of air conditioning equipment, provide a comfortable indoor environment, and achieve energy-saving effects at the same time.

Traffic system: In traffic signal control, it can receive signals from sensors such as vehicle detectors, adjust the duration of traffic lights in real time according to traffic flow, and optimize traffic flow efficiency. In railway and airport control systems, it can be used to control turnouts, signal lights, boarding Bridges and other equipment to ensure the safety and smoothness of transportation.

Water treatment and environmental protection: In water treatment plants, water quality parameters can be monitored, pumps and valves can be controlled, and the water treatment process can be automated, including water purification, disinfection and other links. In environmental protection facilities, it is possible to monitor the discharge of waste gas and waste water, control the operation of related treatment equipment, and ensure that pollutants are discharged up to standard.

In the food and beverage industry, it can be used to control packaging equipment, filling equipment, etc. on food production lines, ensuring the accuracy and consistency of the production process. It can also monitor parameters such as temperature and humidity of the food storage environment to ensure food quality and safety.
