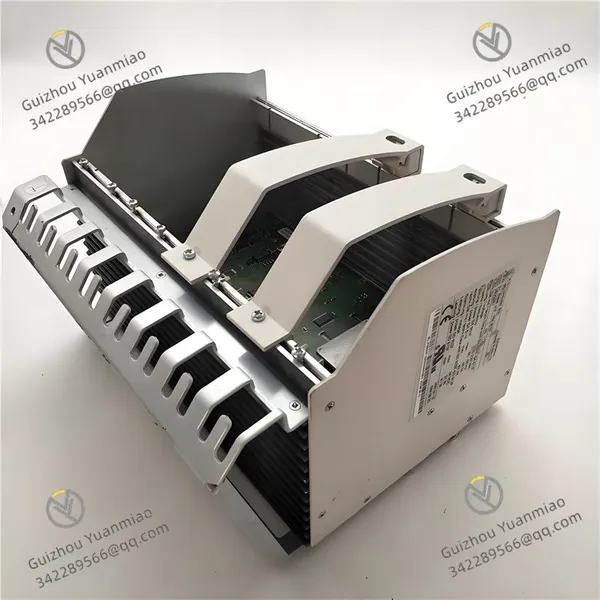

ABB PM802F 3BDH000002R1 Base Unit

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Power consumption Less than 4W

Operating temperature -20 to 55℃

Storage temperature -20-70℃

Dimensions 67.5mm*112mm*114.5mm

Power Supply:

Input: Dual-power redundant input, DC voltage range 12-36V, typical value 24V, with reverse connection protection, using industrial terminal interface.
Power Consumption: Less than 4W.

Safety Module:

Input/Output: Freely configurable safety module with 20 safety inputs and 4 safety outputs, as well as 4 signal outputs, 2 clock outputs, and 2 ground switch outputs. Diagnosable via bus gateway, meeting SIL 3, Cat. 4/PL e, SIL 3 safety ratings, compliant with EN 50156 standard.
Response Time: Maximum 30ms (plus response time of PSR-TS-SDOR4).
Recovery Time: Less than 10s.

Interfaces:

Equipped with USB interface and TBUS DIN rail for expansion modules and bus couplers.

Product Specifications:

Input Type: Digital, HTL type. 10 dual-channel inputs (up to SIL 3), 20 single-channel inputs (up to SIL 2). "0" signal input voltage range: 0-5V DC; "1" signal input voltage range: 11-30V DC.
Output Type: 4 safe semiconductor outputs (up to Cat. 4 per EN ISO 13849-1) and 2 negative switching outputs. Rated output voltage: 24V DC; low-state output voltage
Dimensions: Width 67.5mm, Height 112mm, Depth 114.5mm.
Protection Class: IP20, minimum protection class IP54 at insertion position.
Ambient Temperature: Operating temperature -20°C to 55°C; storage/transport temperature -20°C to 70°C.
Humidity: Maximum relative humidity during operation 75% (average, occasionally 85%); maximum humidity during storage/transport 75% (average, occasionally 85%).

Processor and Memory:

Adopts Intel 80960 HD 25/75, 32-bit, CPU clock 75MHz, computing power up to 150MIPS. Main memory uses static RAM with battery retention via E1 and E2 slots, capacity 4MB. The main memory has an automatic error checking and correction function (EDC unit), capable of detecting 2-bit errors and correcting 1-bit errors in 32-bit data words.

Communication:

Features 6 slots and 1 power slot, with 2 slots using fast DMA technology for direct communication with the CPU to achieve high-speed data transmission. Ethernet modules can be inserted to enable control-layer information transmission based on standard TCP/IP Ethernet. The remaining 4 slots (F1-F4) use interrupt mode to exchange data with the CPU and main memory, and each module can generate its own interrupt source. The powerful interrupt controller and advanced multitasking operating system can quickly respond to interrupt information from these four communication modules and exchange data with them rapidly. Meanwhile, through priority control, real-time reception of error report information from communication modules is ensured.

Product Tags: PM802F , 3BDH000002R1 , Base Unit
