ABB PM511V08 3BSE011180R1 Processor Module

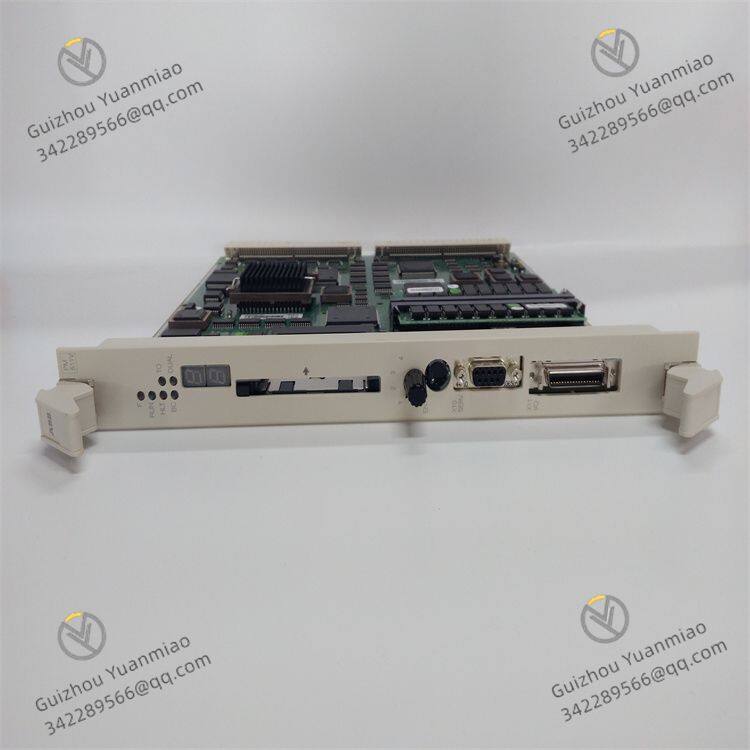

ABB PM511V08 3BSE011180R1 Processor Module photo-1

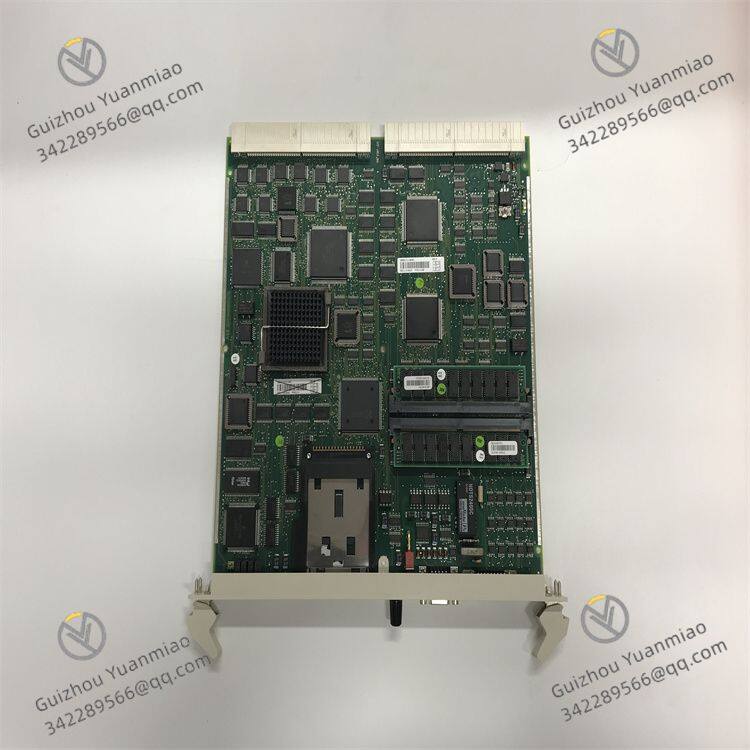

ABB PM511V08 3BSE011180R1 Processor Module photo-2

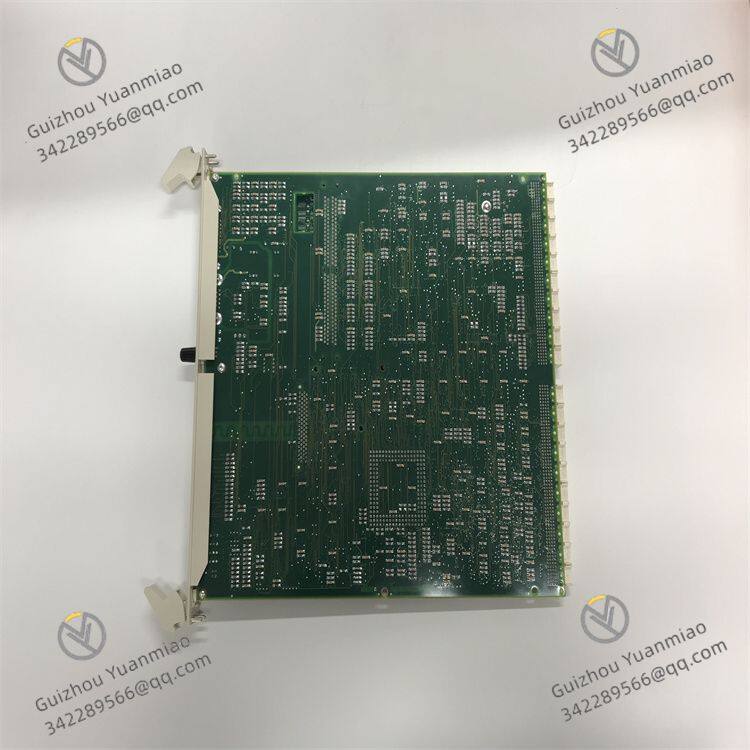

ABB PM511V08 3BSE011180R1 Processor Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Working voltage 24V DC
Operating temperature -20℃ to 55℃
Storage temperature -40℃ to 70℃
Basic Information
  • Model: PM511V08

  • Order Number: 3BSE011180R1

  • Series: ABB AC 800M controller series, serving as the core processing unit for industrial automation control systems.

Hardware ParametersProcessor and Performance
  • Processor Type: 32-bit microprocessor (specific model unspecified, typically a high-performance industrial-grade chip).

  • Computing Capability: Supports high-speed data processing, suitable for real-time control scenarios.

  • Memory Configuration:

    • Main Memory: Usually includes Static RAM (SRAM) and Flash memory for program storage and execution (specific capacity refers to the manual, typical values: 16MB Flash + 8MB SRAM).

    • Battery Backup: Maintains memory data via battery to ensure programs and configurations are preserved during power outages.

Dimensions and Installation
  • Physical Dimensions: Approx. Width × Height × Depth = 100mm×160mm×110mm (subject to official data).

  • Installation Method: Standard DIN rail mounting, supporting vertical or horizontal installation.

  • Protection Level: IP20 (front protection), suitable for installation in control cabinets.

Interfaces and Expansion
  • Communication Interfaces:

    • 1-2 Ethernet ports (10/100Mbps, supporting protocols like TCP/IP, Modbus).

    • 1-2 serial ports (RS-232/RS-485 for programming or low-speed communication).

    • Bus interface: Supports ABB TBUS or other fieldbuses (e.g., ProFINET, EtherCAT, etc., requiring expansion modules).

  • Expansion Slots: Typically equipped with multiple module slots for accessing I/O modules, communication modules, etc. (specific quantity refers to the manual).

Power Parameters
  • Input Voltage:

    • DC: 24V DC (typical value, range usually 18-36V DC, supporting redundant power input).

    • AC: Some models support 100-240V AC input (confirm the specific version).

  • Power Consumption: Less than 10W (in typical operation).

  • Reverse Polarity Protection: Supports power reverse connection protection to avoid damage from wiring errors.

PM511V08 3BSE011180R1 (3)

Communication and Protocols
  • Supported Protocols:

    • Industrial Ethernet protocols: EtherNet/IP, Modbus TCP, ABB's proprietary protocols (e.g., S2 communication).

    • Fieldbus protocols: Supports ProFINET, CANopen, DeviceNet, etc., via expansion modules.

  • Data Transmission Rate: Ethernet ports support 10/100Mbps auto-negotiation; serial ports reach up to 115.2kbps.

Environmental Parameters
  • Operating Temperature: -20°C ~ +55°C (fanless design, adapted to industrial environments).

  • Storage Temperature: -40°C ~ +70°C.

  • Humidity: Maximum relative humidity 95% during operation (non-condensing).

I/O and Expansion Capability
  • Built-in I/O: Some models may integrate a small number of digital inputs/outputs (e.g., 4DI/2DO) for basic control.

  • Expanded I/O: Expands numerous I/O modules via TBUS or fieldbus, supporting types like analog, digital, and high-speed counting.

  • Maximum Expansion Points: Usually connects hundreds of I/O points, specific to system configuration and communication bus load.

PM511V08 3BSE011180R1 (2)

PM511V08 3BSE011180R1 (1)

Software and Programming
  • Operating System: Embedded Real-Time Operating System (RTOS), supporting multitasking and interrupt priority management.

  • Programming Tools: Uses ABB Control Builder M (based on IEC 61131-3 standard, supporting programming languages such as LD, FBD, ST, SCL).

  • Firmware Upgrade: Supports firmware upgrade via Ethernet or serial port to ensure functional updates and compatibility.

Application Scenarios
  • Industrial Automation Control: Process control and machine automation in chemical, power, metallurgy, and manufacturing industries.

  • PLC Alternative Solution: As a high-performance controller for handling complex logic, motion control, and communication tasks.

  • Distributed Control System (DCS): Serves as a field controller integrated with the host computer system.
