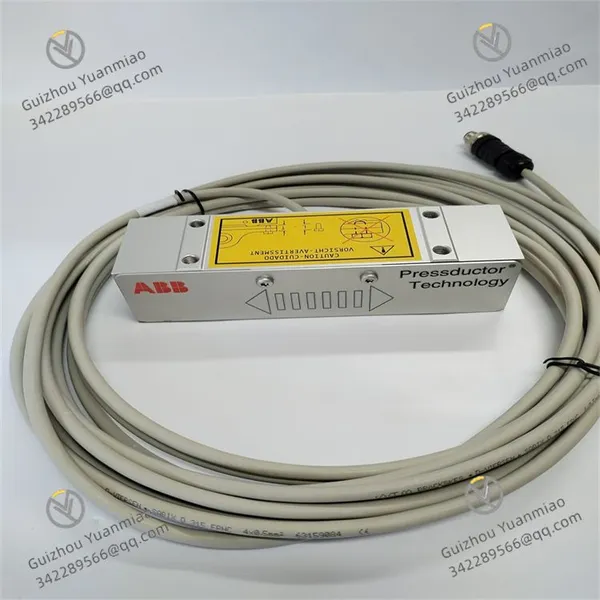

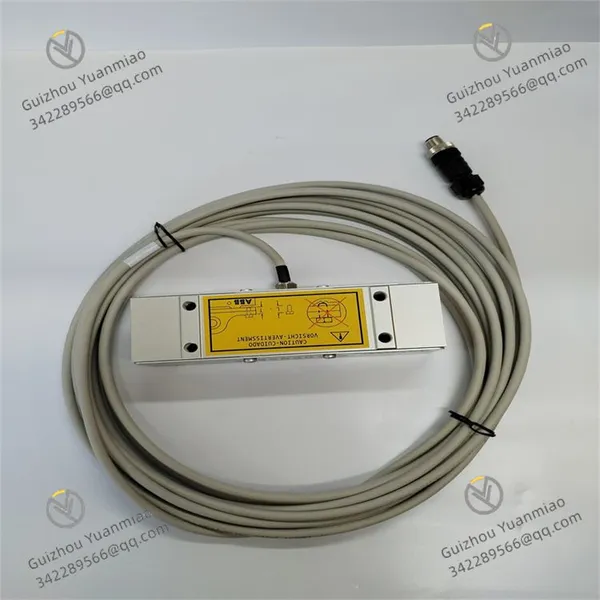

ABB PFTL301E 1.0kN 3BSE019050R1000 Load Cell

ABB PFTL301E 1.0kN 3BSE019050R1000 Load Cell thumbnail-1
ABB PFTL301E 1.0kN 3BSE019050R1000 Load Cell thumbnail-2
ABB PFTL301E 1.0kN 3BSE019050R1000 Load Cell photo-1
ABB PFTL301E 1.0kN 3BSE019050R1000 Load Cell photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -20 ℃ to +80℃
Dimensions Approximately 150mm×80mm×40mm
Weight Approximately 5kg
Power supply requirement 24VDC±10%
Power consumption ≤3W
I. Basic Information

  • Model: PFTL301E, belonging to ABB's tension sensor series, suitable for medium and small load measurement scenarios.

  • Rated Load: 1.0kN (approximately 100kgf), used for precise measurement of force values within the low-tension range.

  • Product Number: 3BSE019050R1000, a unique identifier to distinguish versions and specifications.

  • Country of Origin: Switzerland, continuing ABB's high-precision and reliable standards for industrial sensors.

  • Working Principle: Based on the magnetoelastic effect (the same technology as PFTL201C), mechanical force induces changes in the magnetic properties of internal materials, converting tension into electrical signals. It features no physical movement loss, strong overload resistance, and is suitable for long-term high-frequency use.

II. Application Scenarios

  • Typical Fields: Light industry production lines (e.g., film processing, textile dyeing, cable winding), precision material handling (paper slitting, metal foil rolling), tension monitoring for automated equipment, etc.

  • Advantageous Scenarios: Applications requiring precise low-tension measurement, environments with vibration/temperature fluctuations, or long-life maintenance-free conditions (e.g., food packaging production lines, medical consumable manufacturing).

PFTL301E 1

III. Product Features

  • Structural Characteristics: Stainless steel housing with a protection level ≥ IP65, resistant to moisture, dust, and mild corrosive environments, suitable for industrial field installation.

  • Measurement Accuracy: Non-linearity error ≤ ±0.1% FSO, repeatability error ≤ ±0.05% FSO, maintaining high stability within the 1.0kN range, unaffected by mechanical deformation.

  • Environmental Adaptability: Operating temperature -20°C ~ +80°C, vibration resistance (10-1000Hz, 10g), impact resistance (100g, 11ms), suitable for harsh working conditions.

IV. Technical Specifications

  • Dimensions: Approximately 150mm×80mm×40mm (compact design, saving installation space).

  • Weight: Approximately 5kg, facilitating on-site integration.

  • Power Requirements: 24VDC±10%, power consumption ≤3W, requiring a filter capacitor (100μF/35V) and overload protection.

V. Output Signal Types1. Standard Signals (Default Configuration)

  • Analog Signals:

    • 4-20mA Current Output: Linearly corresponds to 0-1.0kN tension, with strong anti-interference capability, transmission distance ≤500m, load resistance ≤500Ω (compatible with PLC analog modules).

    • 0-10V Voltage Output (Optional): Fast response, transmission distance ≤300m, load resistance ≥10kΩ (requires separate configuration).

  • Digital Signals (Optional):

    • RS485 Communication: Supports Modbus RTU protocol, adjustable rate 1200-115200bps, bus can parallel ≤32 sensors, requiring terminal resistors (120Ω).

2. Extended Signals (Custom Options)

  • Frequency Output: Square wave/pulse signals, with frequency proportional to tension (e.g., 100Hz corresponds to 1.0kN), suitable for upgrading old systems.

  • Industrial Bus Interfaces: Profibus DP, CANopen, EtherCAT, etc. (requires advance customization to meet automation network integration needs).

PFTL301E 1

VI. Electrical Connections and Anti-InterferenceWiring Terminals
Terminal Mark Function Wiring Requirements
+Vcc 24VDC power positive Separate routing, avoid parallel with power cables
GND Power ground Ground resistance ≤4Ω, single-point grounding
SIG+ Signal positive (analog/digital) Twisted-pair shielded cable (≥0.5mm²)
SIG- Signal negative (analog/digital) Paired with SIG+, shield connected to SHIELD
SHIELD Shield grounding Ground only at the controller end to prevent circulating current
Anti-Interference Measures

  • Signal cables should be ≥10cm away from power cables. In high-frequency environments (e.g., near frequency converters), install signal isolators or metal trunking.

VII. Calibration and Verification

  • Zero Calibration: 4mA (or 0V) under no load, error ≤ ±0.05% FSO.

  • Full-scale Calibration: 20mA (or 10V) at 1.0kN load, error ≤ ±0.5% FSO.

  • Digital Signal Verification: Read register 40001 via Modbus, tension in N (1.0kN=1000N), data deviation from actual load ≤ ±1N.

VIII. Comparison with PFTL201C
Item PFTL201C (10kN) PFTL301E (1.0kN)
Rated Load 10kN (large-tension scenarios) 1.0kN (medium-small tension scenarios)
Dimensions/Weight 220×125×50mm/21kg 150×80×40mm/5kg
Typical Applications Pickling lines, rolling mills (heavy industry) Films, textiles (light industry)
Signal Compatibility Same (analog/digital/custom) Same (interface parameters consistent)
Product Tags: PFTL301E 1.0kN , 3BSE019050R1000 , Load Cell
