ABB CP435T 1SBP260193R1001 Display Screen

ABB CP435T 1SBP260193R1001 Display Screen thumbnail-1
ABB CP435T 1SBP260193R1001 Display Screen thumbnail-2
ABB CP435T 1SBP260193R1001 Display Screen photo-1

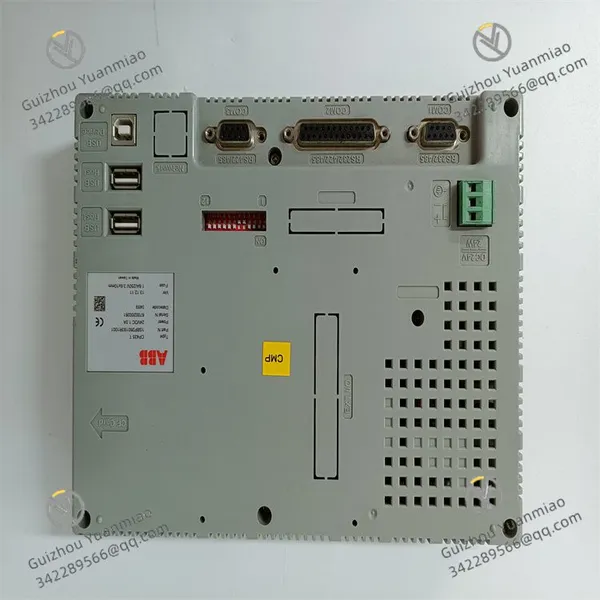

ABB CP435T 1SBP260193R1001 Display Screen photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Power supply 24V DC
Power consumption 20V·A
Weight 1.31kg
Operating temperature 0 - +50℃
Storage temperature -10 to +60
Analysis of Functional Features of ABB CP435T 1SBP260193R1001I. High-Performance Display and Interactive Design

  • High-Definition Visualization Capability
    Equipped with a 10.1-inch TFT color display with a resolution of 1280×800 pixels, supporting 16 million color display. The dynamic images are smooth, clearly presenting process flows, trend charts, and animations, adapting to the high-precision visualization requirements of industrial monitoring.

  • Sensitive Touch Operation
    Fitted with a capacitive touchscreen, supporting multi-touch (e.g., zooming, swiping) and gesture operations. It features fast response and ergonomic design, enhancing on-site operation convenience.

II. Strong Industrial Communication and Integration Capability

  • Rich Communication Interfaces

    • Built-in Ethernet (ETH) interface supporting mainstream industrial protocols such as Modbus TCP, Profinet, and EtherNet/IP, enabling high-speed communication with devices like PLCs, robots, and sensors.

    • Equipped with RS-232/RS-485 serial ports (compatible with Modbus RTU) for traditional devices; supports USB interfaces (Type A/Type B) for external storage devices, keyboards, or mice.

  • Flexible System Integration
    As a Human-Machine Interface (HMI), it can be seamlessly integrated into ABB automation systems or third-party industrial control systems to achieve data collection, device monitoring, and remote control.

III. Industrial-Grade Durability and Protection Performance

  • High Protection Rating
    The front panel has a protection rating of IP65, resisting dust, water splashes, and oil corrosion, suitable for harsh environments such as mechanical manufacturing, food processing, and chemical industry.

  • Wide Temperature and Anti-Interference Design

    • Operating temperature range: 0°C–50°C; storage temperature: –20°C–60°C, adapting to different working conditions.

    • The housing is made of impact-resistant plastic, anti-electromagnetic interference (EMC), complying with industrial standards such as EN 61000-6-2/4 to ensure long-term stable operation.

IV. Flexible Function Expansion and Customization

  • Powerful Hardware Configuration
    Equipped with a high-performance processor (e.g., ARM Cortex-A series), 1GB RAM + 8GB Flash, supporting complex program operation and data storage (historical trends, alarm records, recipe data, etc.).

  • Programmable Interface and Logic
    The UI interface can be customized through ABB configuration software (e.g., Panel Builder 300), supporting drag-and-drop development to flexibly configure elements such as buttons, gauges, and trend charts, and define interaction logic (e.g., alarm triggering, data calculation).

  • Multi-Functional Application Support

    • Data Management: Supports local storage or network upload of operation data for process traceability and optimization.

    • Alarm and Event Management: Monitors device status in real time, alarms via sound-light or pop-ups during anomalies, and records logs.

    • Recipe and Permission Management: Supports storage of multiple groups of process parameters, ensuring system security through password-based hierarchy (operator/administrator).

V. Wide Range of Industrial Application Scenarios

  • Applicable fields include manufacturing (automotive production lines, machine tool control), energy (power monitoring, photovoltaic equipment), water treatment, food & beverage, logistics warehousing, etc., for local device operation, production line visual monitoring, and parameter adjustment.

  • Supports access to factory networks via Ethernet and remote access through Web server functions, improving automation management efficiency.

VI. Energy Efficiency and Convenient Maintenance

  • Low Power Consumption Design
    Powered by 24V DC with optimized power consumption, complying with industrial energy-saving standards to reduce operation costs.

  • Convenient Maintenance and Diagnosis

    • Supports online firmware upgrade (via USB or network interface) for quick system update.

    • Built-in diagnostic tools for real-time monitoring of hardware status (temperature, memory usage), reducing maintenance difficulty.

CP435T 1SBP260193R1001 (2)

CP435T 1SBP260193R1001 (1)

Technical SpecificationsDisplay Parameters

  • Screen size: 7-inch, 16:9 wide screen.

  • Screen type: TFT color display, CCFL backlight.

  • Resolution: 800×480 pixels.

  • Display colors: 64K colors.

  • Viewable area: 153.7mm (length) × 92.4mm (height).

Electrical Parameters

  • Power supply: 24V DC, allowable range 20.4–27.6V DC.

  • Power consumption: 20V·A.

Communication Interfaces

  • Serial port 1: RS 232/RS 485.

  • Serial port 2: RS 232/RS 422/RS 485.

  • USB ports: 1 USB 2.0 host port, 1 USB 2.0 device port.

  • Communication speed: 4.8–187.5 kbd.

  • Supported protocols: Modbus RTU, AC 500_Modbus ASCII, etc.

Memory Parameters

  • User data memory: 512KB, type RAM.

  • User program memory: 8MB, type ROM.

Mechanical Parameters

  • Net width: 231mm.

  • Net height: 176mm.

  • Net depth: 47mm.

  • Weight: 0.86kg (net weight), 1.31kg (gross weight).

  • Installation method: Front panel installation, installation angle 0–135°.

Environmental Parameters

  • Operating temperature: 0–+50°C.

  • Storage temperature: –10–+60°C.

  • Protection rating: Front panel IP65/NEMA 4X (indoor use only).

Other Parameters

  • Real-time clock: Available, with rechargeable lithium battery.

  • User levels: 9-level password protection.

  • Software functions: Supports alarm management, recipe management, trend analysis, macro instructions, ladder diagram sub-screens, etc.

  • Programming software: CP400 soft.

Core Difference Comparison with CP430T-ETH
Parameter Dimension CP430T-ETH 1SBP260196R1001 CP435T 1SBP260193R1001
Display screen size 5.7-inch (320×240 pixels, 64K colors) 10.1-inch (1280×800 pixels, 16 million colors)
Touchscreen type Resistive Capacitive (supports multi-touch)
Memory configuration 4MB flash + 16MB RAM 8GB Flash + 1GB RAM
Communication protocol support Basic industrial protocols Comprehensive support for Profinet, EtherNet/IP, etc.
Protection rating Not specified (typically IP54) Front panel IP65
Application scenarios Local monitoring for small devices Visualization for medium-large production lines and complex system integration
Product Tags: CP435T , 1SBP260193R1001 , control panel
