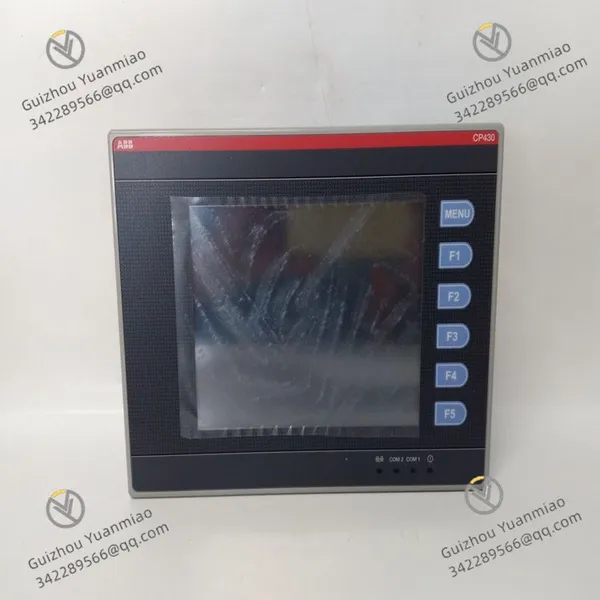

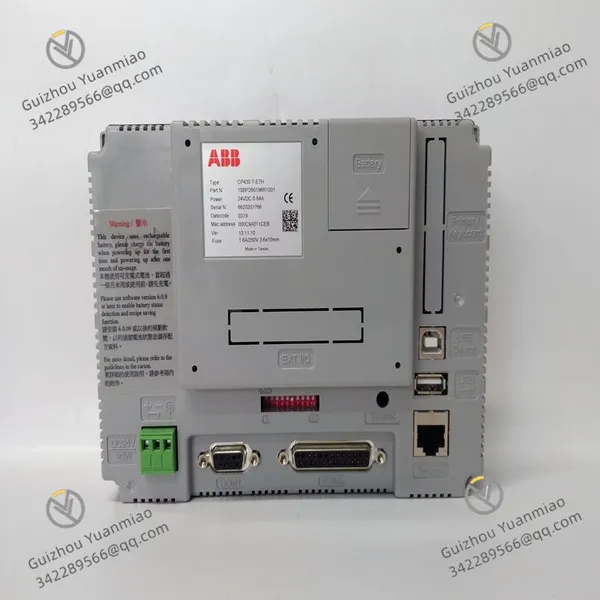

ABB CP430T-ETH 1SBP260196R1001

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Other, Global universal model

Structure Other, Global universal model

Power supply voltage 24V DC ±15%

Operating temperature 0℃ to + 50℃

Storage temperature -10℃ to + 60℃

Front panel dimensions 195.0×145.0×6.0m

Weight 0.81kg

Functional Features of ABB CP430T-ETH 1SBP260196R1001I. Efficient Human-Machine Interaction and Display Capabilities

High-Definition Display Performance
Equipped with a 10.1-inch TFT color display with a resolution of 1280×800 pixels, supporting 16 million color display. The images are delicate and smooth, clearly presenting dynamic charts, animations, and complex process flows, adapting to the visualization needs of industrial monitoring scenarios.
Multi-Touch Operation
Supports capacitive touchscreen with sensitive response and gesture operations (e.g., zooming, swiping). The ergonomic design enhances operational convenience and user experience.

II. Strong Industrial Communication and Integration Capabilities

Rich Communication Interfaces

Built-in Ethernet (ETH) interface supporting mainstream industrial communication protocols such as Modbus TCP, Profinet, and EtherNet/IP, enabling high-speed communication with devices like PLCs, robots, and sensors.
Equipped with RS-232/RS-485 serial ports compatible with Modbus RTU protocol for traditional industrial devices; supports USB interfaces (Type A/Type B) for external keyboards, mice, or storage devices (e.g., USB drives).

Flexible System Integration
As a Human-Machine Interface (HMI), it can be seamlessly integrated into ABB automation systems or third-party industrial control systems to achieve data collection, device monitoring, and remote control.

III. Industrial-Grade Durability and Protection Design

High Protection Rating
The front panel has a protection rating of IP65, resisting dust, water splashes, and oil corrosion, suitable for harsh industrial environments such as mechanical manufacturing, food processing, and chemical industry.
Wide Temperature Operation
Operating temperature range: 0°C~50°C; storage temperature: -20°C~60°C, meeting stable operation requirements under different working conditions.
Rugged Structural Design
The housing is made of impact-resistant plastic, wear-resistant and electromagnetic interference (EMC) resistant, complying with industrial standards (e.g., EN 61000-6-2/4) to ensure long-term reliable operation.

IV. Flexible Function Expansion and Customization

Powerful Processing and Storage Capabilities
Equipped with a high-performance processor (e.g., ARM Cortex-A series), 1GB RAM + 8GB Flash, supporting complex application operation and data storage (e.g., historical trends, alarm records, recipe data).
Programmable Interface and Logic
User interfaces can be customized through ABB configuration software (e.g., Panel Builder 300), supporting drag-and-drop development to flexibly configure elements such as buttons, gauges, and trend charts, and define interaction logic (e.g., alarm triggering, data calculation).
Multi-Functional Application Support

Data Recording and Analysis: Supports local storage or network upload of operation data for later traceability and process optimization.
Alarm and Event Management: Monitors device status in real time, alarms via sound-light or pop-ups during anomalies, and records event logs.
Recipe Management and User Permissions: Supports storage of multiple groups of process parameters (recipes), ensuring system security through password-based hierarchical management (e.g., operator, administrator).

V. Wide Range of Industry Application Scenarios

Application Fields
Covers industries such as manufacturing (e.g., automotive production lines, machine tool control), energy (power monitoring, photovoltaic equipment), water treatment, food & beverage, logistics warehousing, etc. It can be used for local device operation, production line visual monitoring, process parameter adjustment, and other scenarios.
Remote Monitoring Expansion
Accessible to factory networks via the Ethernet interface, supporting remote access (e.g., Web server function) to view and control device status remotely, improving automation management efficiency.

VI. Energy Efficiency and Convenient Maintenance

Low Power Consumption Design
Powered by 24V DC with optimized power consumption, complying with industrial energy-saving standards to reduce operation costs.
Convenient Maintenance and Diagnosis
Supports online firmware upgrade for quick system update via USB or network interface; built-in diagnostic tools for real-time monitoring of hardware status (e.g., temperature, memory usage), reducing maintenance difficulty.

Technical SpecificationsDisplay Parameters

Screen Size: 5.7-inch TFT color LCD.
Resolution: 320×240 pixels.
Colors: 64K colors.
Backlight: CCFL backlight, service life of approximately 60,000 hours at 25°C.
Display Area: Effective display area of 117.2×88.4mm, capable of displaying 40×30 characters of 8×8 size.
Touchscreen Type: Resistive touchscreen.

Electrical Parameters

Power Supply Voltage: 24V DC ±15%.
Power Consumption: Less than 20W.

Communication Interfaces

COM1: 9-pin female connector, supporting RS 232/RS 485.
COM2: 25-pin female connector, supporting RS 232/RS 422/RS 485.
USB Ports: Support USB 2.0.
CF Card Slot: Equipped with a CF card slot.
Ethernet Port: Integrated Ethernet interface for network connection.

Memory

Flash Memory: 4MB.
Random Access Memory: 16MB.
Battery-Backed Memory: 512KB.

Mechanical Parameters

Front Panel Dimensions: 195.0×145.0×6.0mm.
Installation Depth: 59.1mm.
Cutout Size: 185.8×135.8mm.
Weight: 0.81kg.

Environmental Parameters

Operating Temperature: 0°C to +50°C.
Storage Temperature: -10°C to +60°C.
Humidity: 20% to 90% RH (non-condensing).
Vibration Resistance: 0.5mm displacement, 10-55Hz, 2 hours in each x, y, z axis direction.
Shock Resistance: 10g, 11ms, 3 times in each x, y, z axis direction.

Other Parameters

Real-Time Clock: Real-time clock with rechargeable lithium battery.
Keyboard: 1 menu key and 5 user-defined function keys (F1-F5), operating force 350±50gf, service life exceeding 1,000,000 activations.

Working PrincipleHardware Aspect

The processor serves as the core, responsible for running the system and processing various data. The power module converts the input 24V DC voltage into stable voltages required by each component. The TFT display shows images driven by video signals output from the processor, while the resistive touchscreen determines the touch position by detecting voltage changes during pressing and transmits it to the processor. Communication interfaces send and receive data with external devices according to corresponding protocols, and memory is used to store programs, data, and historical records.

Software Aspect

Based on a specific embedded operating system, it provides a runtime environment for applications. Users design HMI interfaces and interaction logic through programming software. When the application runs, it obtains device data from communication interfaces to update the display, receives touchscreen inputs and parses them into commands to send to external devices, while executing functions such as alarm management and recipe management. The communication protocol stack is responsible for parsing and encapsulating various communication protocols to ensure data format matching and correct communication with external devices.

Product Tags: CP430T-ETH , 1SBP260196R1001 , control panel
